Printed Circuit Board Power Connectors

Through Hole Technology (THT) Wave Solderable, and Surface Mount Technology (SMT) High Current (20A, 30A, 65A, 85A, 100A, 115A,150A, 255A, 285A) PCB Terminal wire Lugs, Shunts, Bus Bars and Jumpers (see items 1-5 below)
New! Click here: THT - FULL RANGE Quick-Pick catalog High Current THT PCB Terminals. 28 models from AWG 12-300 kcmil, 20A to 285A ALL IN STOCK

New! Click here: SMT Surface Mount Technology AWG10 - AWG2 20A to 115A

Range selection chart of IHI brand wave solderable THT high current PCB terminal lugs from 20 amps to 285 amps

1. STOCKED THT Solder Mounted Wire lugs for PCB's
High Amp PCB Connectors, B2 Series
conectores para cable 2-14 AWG para TCI para soldadura por ola


High Amp PCB lug For 2 AWG -14 AWG Copper or 2-8 AWG Aluminum Wire
UL Recognized and CSA certified
UL/CSA Catalog Number "B2" and "B2C"

Para 2 AWG -14 alambre de cobre o aluminio de AWG UL Reconoció, CSA certificó

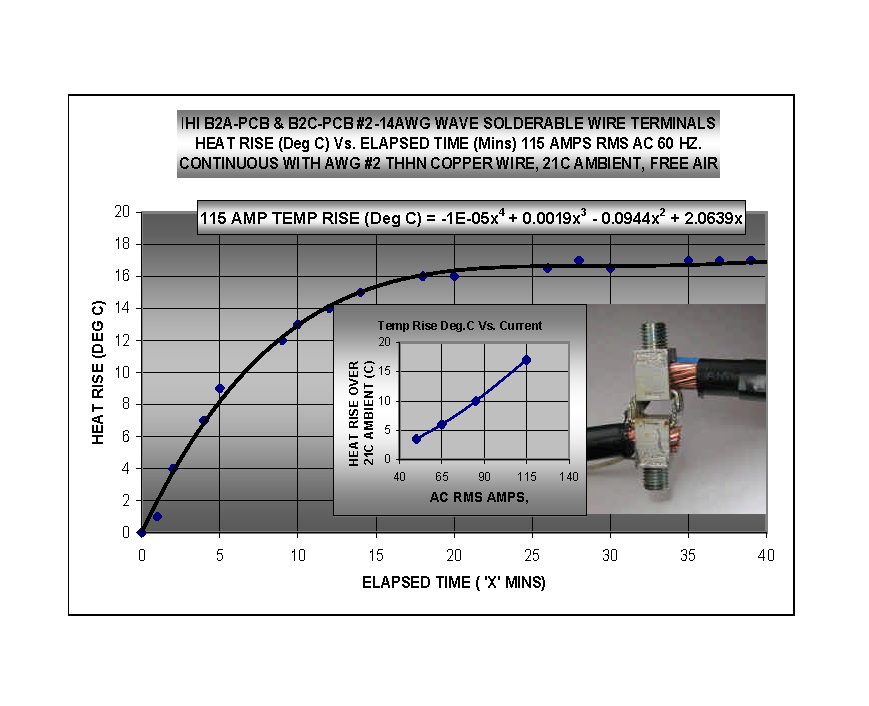

High Amp (115 Amp NEC 75C rating) PCB Connectors, ideal for electronic power invertors, solar energy controllers, battery charger controllers, wind energy controllers, high wattage heater controllers, current controllers, power supplies, lightning arresters, and any high amperage application with up to 100 amps per connector with properly sized printed circuit board layout.
El ideal para el invertors electrónico, directores solares, las calentadoras, directores actuales, accionan los suministros, y cualquiera aplicación alta de amperio con arriba a 100 amperios por el conector con la disposición impresa apropiadamente calibrada de tablero de circuitos.

Please email sales@LugsDirect.com for any special quantity and style.

To Place order fax to 330 562 9990 or email Sales@LugsDirect.com

Part number



B2A PCB

B2A PCB HEX

B2C PCB

B2C PCB HEX

 B2C PCB SS
Body/UL Cat. Number/markings IHI B2 IHI B2 IHI B2C IHI B2C IHI B2C
Body type Standard body 'A' #2 stranded wire is very snug fit Standard body 'A'
#2 stranded wire is very snug fit		 Larger body 'C'
#2 stranded wire is easy fit- larger wire hole 		Larger body 'C' #2 stranded wire is easy fit-
larger wire hole 		Larger body 'C'#2 stranded wire is easy fit-
larger wire hole
Type of screw
Steel slotted set screw
Steel hex skt 5/32" 4mm Allen set screw
Steel slotted set screw
Steel hex skt 5/32" 4mm Allen set screw
Rust free stainless steel slotted set screw
PRICE EACH

Quantity

B2A-PCB

B2A-PCB-HEX

B2C-PCB

B2C-PCB-HEX

B2C-PCB-SS

Order size

Price USD

Price USD

Price USD

Price USD

Price USD

100

0.45

0.47

0.48

0.5

0.56

250

0.42

0.44

0.45

0.47

0.53

500

0.4

0.42

0.43

0.45

0.51

1,000

0.35

0.37

0.38

0.4

0.46

2,000
(1 FULL BOX )

0.3

0.32

0.33

0.35

0.41

4,000
(2 FULL BOXES )

0.27

0.29

0.3

0.32

0.38

10,000
(5 FULL BOXES )

0.25

0.27

0.28

0.3

0.36

12,000
(6 FULL BOXES )

0.24

0.26

0.27

0.29

0.35

24,000
(12 FULL BOXES)

0.22

0.24

0.25

0.27

0.33

30,000
(15 FULL BOXES)

0.21

0.23

0.24

0.26

0.32

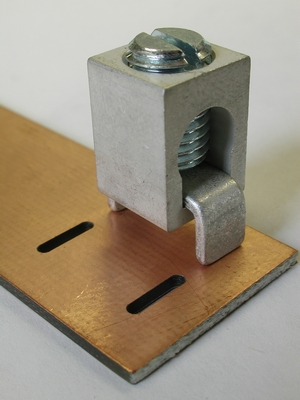

B2A-PCB Shown beside two routed slots in a double sided .06 inch , 1.5mm circuit board


2. High Conductivity PCB Current Shunts (zero ohm jumpers) :

100+ Amp current shunt between two (or more) wire connector terminals for high pass-through currents.
100+ Amp Current shunt /heat sink / zero ohm trace jumper for other locations on the PCB such as narrowed traces, or hot spots.

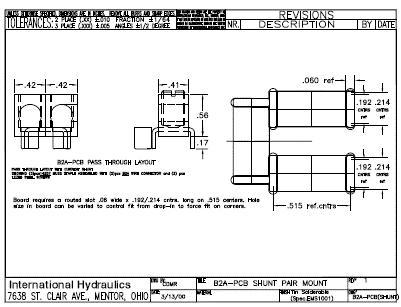

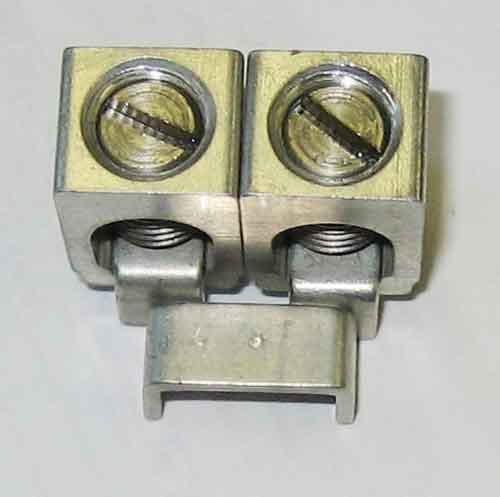

B2A-PCB Print for Loop Through Shunt Pair

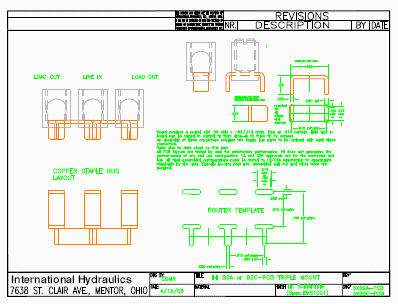

B2A or B2C with triple shunt loop through

(1) PER (2) B2A-PCB or (2) B2C-PCB ------(1) PER (2) B2A-PCB

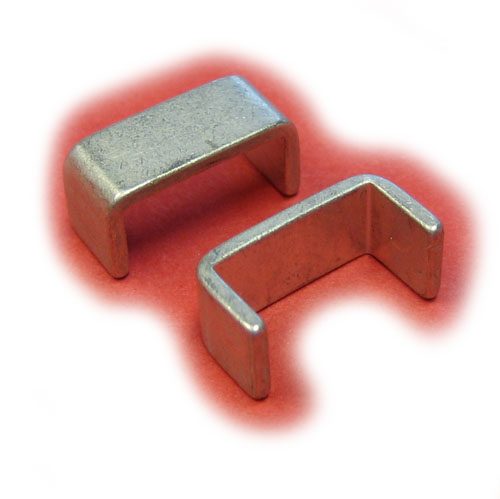

Copper PCB Current-Heat Shunt spacerspacerspacerspacerspacerPT-SHUNT PCB terminal shunt for 100 amps
PART No. "14257"spacerspacerspacerspacerspacerspacerPART No. "PT-SHUNT"
(Click for larger photo)

More Technical information on High Amp PCB Wire Connectors

More Technical information about High Amp Wide Trace PCB design

SMT & Through Hole Bus Bar Mounts 65-115 amps continuous.
Also for Any length Zero Ohm Shunts and Jumpers.

Suitable for Any Length of Copper Bus Bar. Can accomodate any number of mounts at any interval. "Slide along and clamp" design enables maximum flexibility. Copper bus expands at the same rate as copper PCB foils to minimize warping.

Through Hole & SMT Bus Mount Part numbers:

Through Hole .25" X .25" Max. Rectangular Bus...B2A-PCB (Stock)
Through Hole .19" Max. Round Bus......................B6A-PCB (Stock)

SMT .25" X .25" Max. Rectangular Bus.....B2A-SMT (2-4 weeks)
SMT .19" Max. Round Bus....................B6A-PCB (Stock)

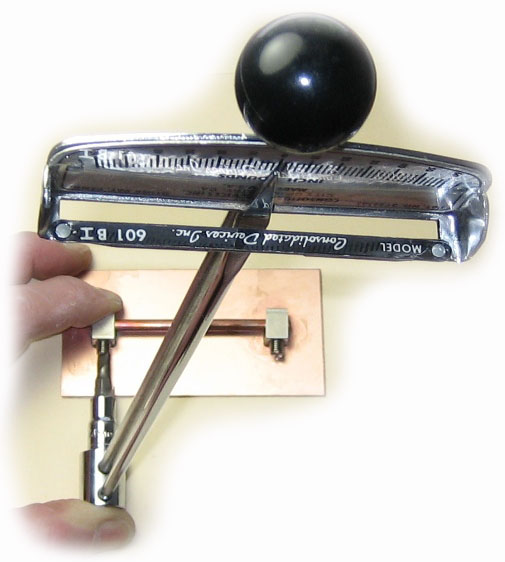

SMT PCB Terminal for wires and bus shunts Test: 30 in-lbs, no copper delamination

Part Number B6A-PCB-SS

SMT bus mount Click for SMT Lugs SMT solder paste mounted Bus Bar Mount for PCB

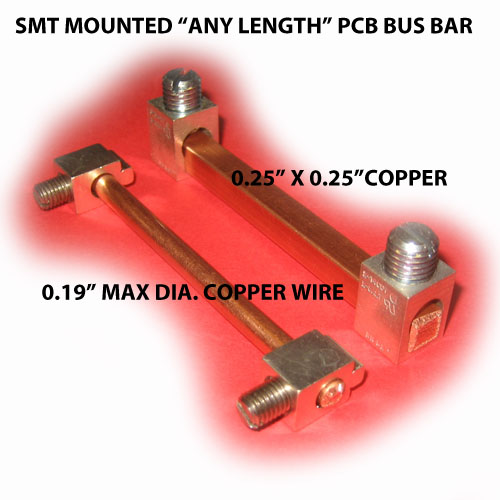

SurfaceMount SMT Any Length PCB Bus Bar Mounts

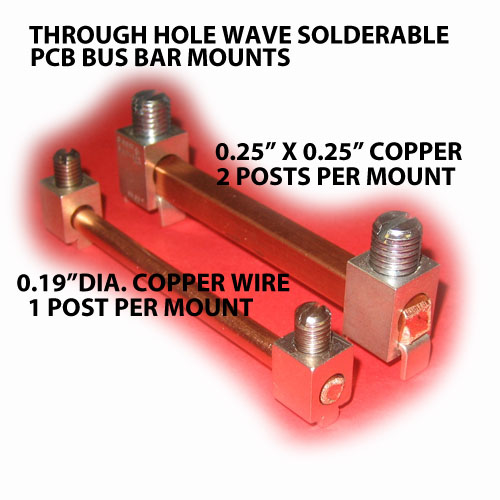

Through The hole PCB Wave solderable Bus Bar Mounts
PART Number: B2A-PCB or B2C-PCB

"slide-along" Through-Hole PCB Bus Mounts - Use with .24" X .032" t0 .050" thick copper bus strip or wire up to 2 AWG (bare or insulated)
2 or 3 or more bus mounts - slide along and through hole or SMT attachment available

3. Stocked B6A-PCB-SS (AWG 6-16) B6A-PCB-SS Field Wiring TerminalsB6A-PCB Wave Solderable PCB Lug TerminalHorizontal Wire Access

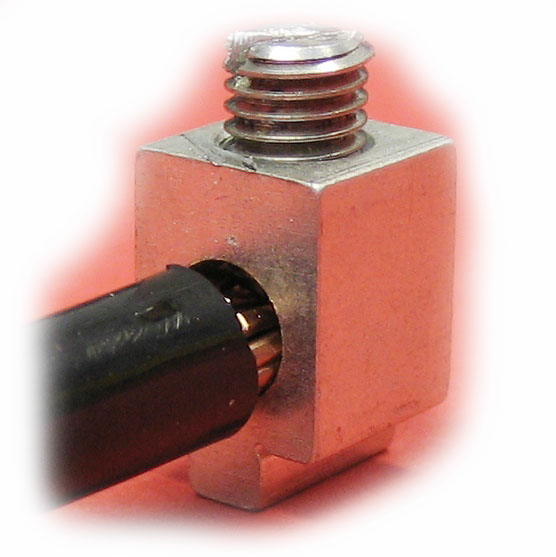

All-in-one Miniature AWG#6 Solderable PCB Wire Terminal Lug with Stainless Steel Slotted Screw for Rust Free finish.

B6A-PCB-45-RS,B4A-PCB-45-RS TOP_ACCESS_PCB_TERMINALS<<See also, TOP WIRE ACCESS version B6A-PCB-45 below.

CATALOG PAGE for B6A-PCB-SS Terminal lug AWG #6 tin on copper plated solderable wire lug with Stainless Screw

Spec sheet for B6A-PCB-SS

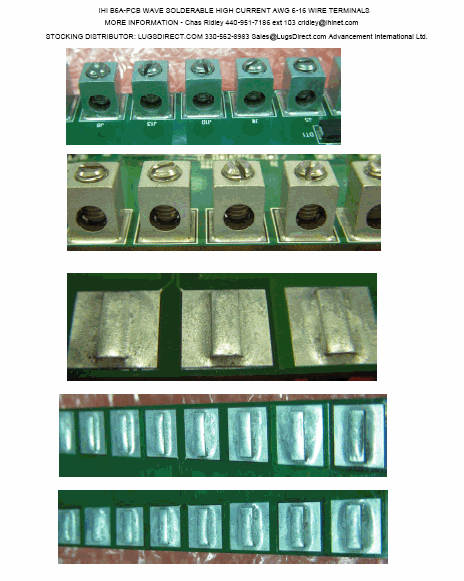

IHI Brand B6A-PCB Wave Soldered PCB terminal connector lug

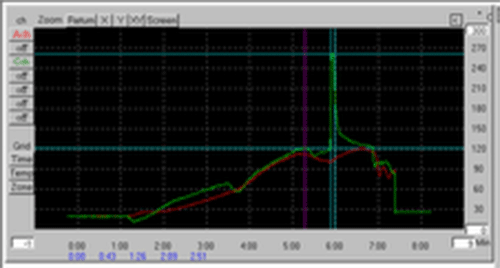

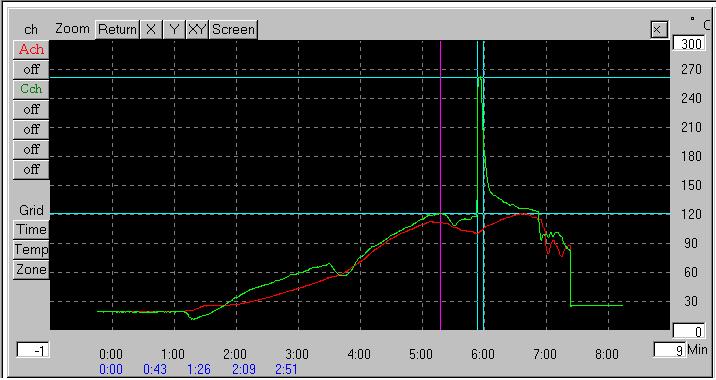

Click for SAC Lead Free Wave Soldering Profile
Click for typical wave soldering profile suitable for IHI PCB lugs

PRICE EACH

Quantity
B6A-PCB
Order size
Price Each USD
100
0.56
250
0.53
500
0.51
1000
0.46
2000
0.41
5000
0.38
10000
0.36
12000
0.35
25000
0.33
30000
0.32



4. TOP WIRE ACCESS PCB TERMINALS

FOR "INBOARD" LOCATIONS NEAR TO CENTRALLY LOCATED POWER SEMICONDUCTORS. BOARD-TO-BOARD WIRING AND FIELD WIRING. WIRE AND WIRE CLAMPING FROM THE TOP. ALSO FOR POINT TO POINT CURRENT POWER BUS OR SHUNT ("ZERO OHM") APPLICATIONS.

B6A-PCB-45-RS,B4A-PCB-45-RS TOP_ACCESS_PCB_TERMINALS

B6A-PCB-45-RS (6-14-18 AWG) Top Wire Access, Through Hole Wave Solder Mount

B4A-PCB-45-RS (4-14 AWG) Top Wire Access, Through Hole Wave Solder Mount

Through hole PCB terminal with TOP ACCESS WIRE ENTRY

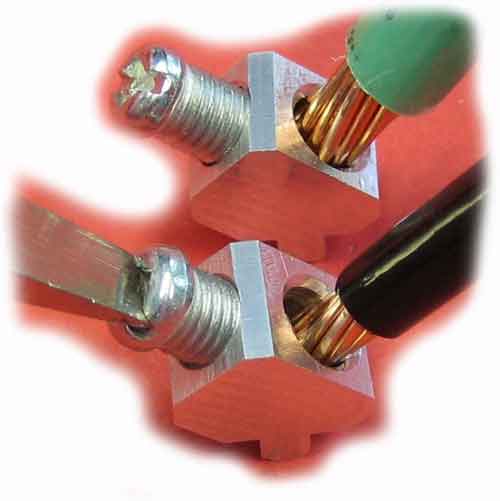

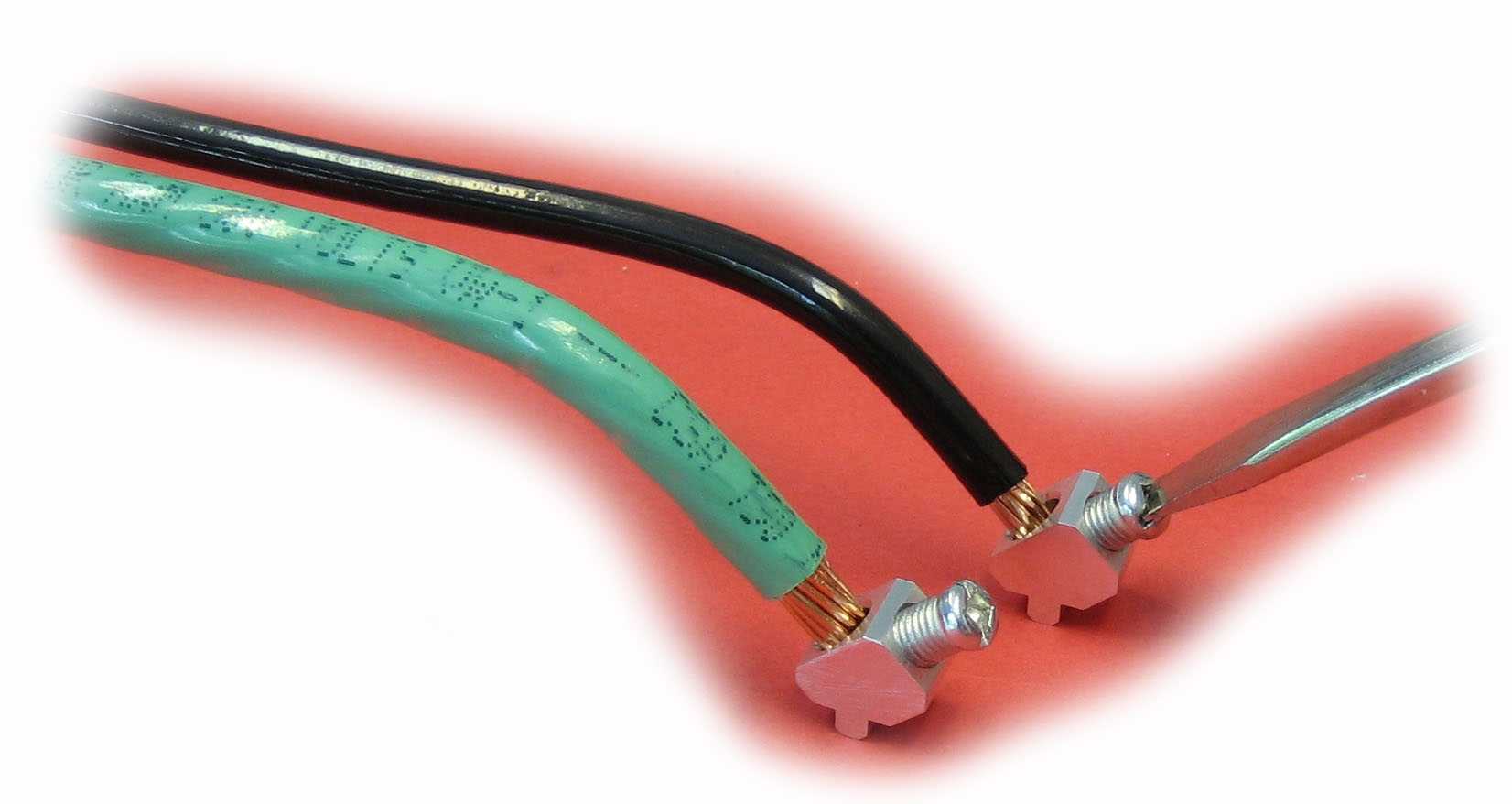

Top Access PCB Wire terminal Lug B6A-PCB-45-RS & B4A-PCB-45-RS
Click for larger photo

***********************************************

Smaller Wires? 12-16 AWG?

5. B12-PCB AWG #12-16 solderable wire Terminal lug

B12-PCB Wave solderable 12AWH wire terminal for PCB mounting
(click for pdf)



6. ALL COPPER ALLOY PCB TERMINAL - AWG #4-14 WIRE CAPACITY
Pure Copper Body, Brass Screw, Pure copper plated Solderable Staple

IHI's B4B-PCB - Email or call for OEM Request for quote. Non stock item.

B4B-PCB All Copper Alloy PCB terminal Lug4=14 AWGB4B-PCB All Copper Alloy PCB terminal Lug4=14 AWG
