See all Two Wire Lugs

350 kcmil Double Wire Double Barrel Mechanical Lug 350kcmil-6 AWG

Part No. Description & Information Purchase Options

2S350-T

350 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating

1 to 39pcs
$6.16/ea
(or)
40pcs & up
$4.53/ea

(or)

125pcs
"full box"
$3.44/ea

350 kcmil - 6 AWG 3/8" Hex Socket Screws 1/2" 0.531" dia. mounting hole CU9AL

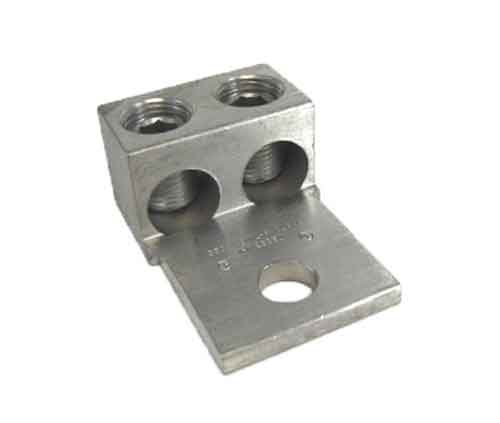

2S350-T double wire double barrel lug 350 kcmil - 6 AWG wire range electrical lug

dimensions diagram

Dimensions

A: 2.88" (73.0mm)

B: 1.25" (31.8mm)

C: 1.94" (49.2mm)

See Mechanical Drawing for detailed dimensions

"2S350-T" 350 kcmil Double wire lug, 350kcmil - 6 AWG wire range, and FLEX wire class G-K including mm2 class 5, 1.75" wide trimmed tang, double barrel, aluminum or copper wire, hex socket screws, CU9AL, 90C temperature rating, single 1/2" bolt mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, UL Listed at 600v - acceptable for use through 2000v, CSA Certified. Made in the USA from domestic and imported parts. International Hydraulics Inc. brand.
UL & CSA Approved for FLEX wire Class G-K sizes #4 AWG-#262 kcmil





350kcmil - 6 gama de cable de AWG, 2 barriles, aluminio o cobre alambre, CU9AL, 90C clasificación de temperatura," agujero de perno de montaje del rango de cable 6 AWG y FLEX clase alambre GK incluyendo los de clase 5 mm2, 1,75 - "2S350-T" 350kcmil , la lista de UL, CSA Certified. Hecho en los USA.

 GUIDE ON FLEX WIRE
For More Information Click the Icons Below
click for PDF document


Agency Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10

E129884 UL486A,B, ZMVV, 1243943 CSA 22.2 No.65


310 Amp 75C Cu Wire
350 Amp 90C Cu Wire
250 Amp 75C Al Wire
280 Amp 90C Al Wire

Per Wire in Power Distribution or Collection Mode
