Buy OEM Single Wire, Collar Type

("Box Type") Terminals for use with customers' internal bus tang

For applications where the final use is also approved to the appropriate electrical standard.
Compre conectores mecanicos para un conductor (1 conductores / terminal)
Tip: Parts Listed In order of increasing wire size



Part Number
& Image
(Click for larger view)
Description and Information Pricing and
Purchasing

Part No.

12 AWG OEM Box Collar Lug 12-16 AWG

Purchase
B12

12 AWG Lug

Wire Range Rating Screw Type Bus Bar
1 to 799pcs
$0.50/ea
(or)
800pcs & up
$0.37/ea

(or)
5000 pcs
"full box"
$0.28/ea

*12-16 AWG CU7 .047" Slotted filister head screw 20 AMPS BUS CROSS SECTION .125 x .063 COPPER ALLOY
IHI B12 12 AWG Collar lug 12-16 AWG

dimensions diagram

Dimensions

A: 0.31" (7.9mm)

B: 0.65" (16.5mm)

C: 0.26" (6.6mm)

See Mechanical Drawing for detailed dimensions

*Wire range only valid with use of a bus bar or staple.



"B12" 12 AWG OEM, 12-16 AWG wire range, tin plated aluminum, single wire, copper wire only, CU7, 75C temperature rating, UL Recognized at 600v - acceptable for use through 2000v.



Temperature Range and Rating Guide



Please email for higher volume prices



La gama del cable de AWG 12-16, cable de cobre, la calificación de la temperatura CU7, 75C, UL Certificó.




B12
Click for full Product Profile

PCB version also available here
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo

UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

6 AWG OEM Box Collar Lug 6-14 AWG

Purchase
B6B

6 AWG Lug

Wire Range Rating Screw Type Bus Bar

1 to 499pcs
$0.57/ea
(or)
500pcs & up
$0.42/ea

(or)

4000pcs
"full box"
$0.32/ea

*6-14 AWG CU7AL Slotted Screw 65 AMPS BUS .20 x .032 COPPER ALLOY MINIMUM CROSS SECTION

B6B OEm box collar lug, 6-14 AWG

dimensions diagram

Dimensions

A: 0.38" (9.5mm)

B: 0.53" (13.5mm)

C: 0.38" (9.7mm)

See Mechanical Drawing for detailed dimensions

*Wire range only valid with use of a bus bar or staple.



"B6B" 6 AWG OEM box collar lug, 6-14 AWG wire range, single wire, steel screw, aluminum or copper wire, CU7AL, 75C temperature rating, Canada Certified for USA and Canada, 65 AMPs, Bus .20 x .032 copper alloy minimum cross section. International Hydraulics Inc® brand.



Screwdriver Bit Information



Temperature Range and Rating Guide


B6B
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

4 AWG OEM Box Collar Lug 4-14 AWG

Purchase
B4B-B

4 AWG Lug

Wire Range Rating Screw Type Mounting Hole Bus Bar

UL Listed



Part is available for

custom orders.

MOQ applies.

Contact sales@lugsdirect.com

or call 330-562-8983 for details.

*4-14 AWG CU9 Slotted Brass Screw 0.20" Dia. plain mounting hole 95 AMPS BUS .25 x .063 COPPER ALLOY MINIMUM CROSS SECTION
B4B-B 4 AWG Copper Collar Box lug

dimensions diagram

Dimensions

A: 0.47" (11.9mm)

B: 0.55" (14.0mm)

C: 0.46" (11.7mm)

See Mechanical Drawing for detailed dimensions

*Wire range only valid with use of a bus bar or staple.



For mounting and anti rotation methods see the IHI B4B Installation Guide.



B4B has been updated with UL Listing in addition to Canada certification.



"B4B-B" 4 AWG OEM, 4-14 AWG wire range, single wire, all copper body, solid brass screw, copper wire only, CU9, 90C temperature rating, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, and Canada Certified for USA and Canada, good for heavy duty applications and environments and "copper only" codes, oversized wire opening. Flat end screw with cut trepan face for gripping large and small stranded wires without damage. 0.20" Dia. plain mounting hole (#10 screw) (may be tapped 1/4-28 by user and permitted in file) or bus "keeper" hole. 95 AMPs, Bus .25 x .063 copper alloy minimum cross section. Mounting hole .20 dia. (may be tapped 1/4-28 by user and permitted in file). International Hydraulics Inc® brand.



E129884 UL486A,B, ZMVV, ZMVV7, 1243943 Canada 22.2 No.65



Temperature Range and Rating Guide



Please email for higher volume prices


B4B-B
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
cULus Logo

CSA Logo

US

CSA Logo
UL CSA Certificate Link

RoHS 9/10

Cross Reference:
CMC C-59-B | ILSCO CO4CW

Return to Top
Part No.

2 AWG OEM Box Collar Lug 2-14 AWG

Purchase
B2A

2 AWG Lug

Wire Range Rating Screw Type Bus Bar
1 to 999pcs
$0.57/ea
(or)
1000pcs & up
$0.42/ea

(or)
2500 pcs
"full box"
$0.32/ea

*2-14 AWG CU7AL .051" Slotted Screw 115 Amps copper alloy bus cross section .25 x .04
or
.25 x .05 or 50 Amps bus .25 x .0 32
IHI B2A 2 AWG - 14 AWG collar lug

dimensions diagram

Dimensions

A: 0.41" (10.4mm)

B: 0.56" (14.2mm)

C: 0.42" (10.7mm)

See Mechanical Drawing for detailed dimensions





*Wire range only valid with use of a bus bar or staple.



"B2A" 2 AWG OEM, 2-14 AWG wire range, tin plated aluminum with steel screw, aluminum or copper wire, CU7AL, 75C temperature rating, single wire terminal, UL Recognized at 600v - acceptable for use through 2000v, Canada Certified. The most compact #2 AWG wire connector available.



Temperature Range and Rating Guide



90C (AL9CU) version available.



Please email for higher volume prices





La gama del cable de AWG 2-14, cable de aluminio o cobre, la calificación de la temperatura CU7AL, 75C, solo conductor, UL & Canada Certificó.





B2A
Click for full Product Profile

PCB version also available here
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2 AWG OEM Box Collar Lug 2-14 AWG

Purchase
B2A-HEX

2 AWG Lug

Wire Range Rating Screw Type
1 to 999pcs
$0.57/ea
(or)
1000pcs & up
$0.42/ea

(or)

2500 pcs
"full box"
$0.32/ea

*2-14 AWG CU7AL 5/32" (4mm) Hex Socket Screw

115 Amps copper alloy bus cross section .25 x .04
or
.25 x .05 or 50 Amps bus 5/32" or

.25 x .032

IHI B2A 2 AWG collar lug

dimensions diagram

Dimensions

A: 0.41" (10.4mm)

B: 0.56" (14.2mm)

C: 0.42" (10.7mm)

See Mechanical Drawing for detailed dimensions

*Wire range only valid with use of a bus bar or staple.



"B2A-HEX" 2 AWG OEM, 2-14 AWG wire range, tin plated aluminum with hex socket screw, aluminum or copper wire, CU7AL, 75C temperature rating, single wire terminal, UL Recognized at 600v - acceptable for use through 2000v, Canada Certified. The most compact #2 AWG wire connector available.



Temperature Range and Rating Guide



90C (AL9CU) version available.



Please email for higher volume prices





La gama del cable de AWG 2-14, cable de aluminio o cobre, la calificación de la temperatura CU7AL, 75C, solo conductor, UL & Canada Certificó.



B2A-HEX
Click for full Product Profile

PCB version also available here
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2 AWG 90C OEM Box Collar Lug 2-14 AWG

Purchase
B2A9

2 AWG Lug

Wire Range Rating Screw Type Bus Bar



1 to 649pcs
$0.53/ea
(or)
650pcs & up
$0.39/ea
(or)

2,500pcs
"full box"
$0.29/ea



*2-14 AWG CU9AL .051" Slotted Screw 130 Amps copper alloy bus cross section .25 x .047
or
.25 x .05 or 50 Amps bus .25 x .0 32

IHI B2A9 2 AWG - 14 AWG collar lug

dimensions diagram

Dimensions

A: 0.41" (10.4mm)

B: 0.56" (14.2mm)

C: 0.42" (10.7mm)

See Mechanical Drawing for detailed dimensions

*Wire range only valid with use of a bus bar or staple.



"B2A9" 2 AWG OEM, 2-14 AWG wire range, tin plated aluminum with tin plated aluminum slotted set screw, aluminum or copper wire, CU9AL, 90C temperature rating, single wire terminal, UL Recognized at 600v - acceptable for use through 2000v. The most compact #2 AWG wire connector available.



Temperature Range and Rating Guide

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2 AWG 90C OEM Box Collar Lug 2-14 AWG

Purchase
B2A9-HEX

2 AWG Lug

Wire Range Rating Screw Type Bus Bar



1 to 649pcs
$0.60/ea
(or)
650pcs & up
$0.45/ea
(or)

2,500pcs
"full box"
$0.34/ea





*2-14 AWG CU9AL 1/8" Hex Socket Screw

130 Amps copper alloy bus cross section .25 x .047
or
.25 x .05 or 50 Amps bus 5/32" or

.25 x .032

IHI B2A9 2 AWG collar lug

dimensions diagram

Dimensions

A: 0.41" (10.4mm)

B: 0.56" (14.2mm)

C: 0.42" (10.7mm)

See Mechanical Drawing for detailed dimensions

*Wire range only valid with use of a bus bar or staple.



"B2A9-HEX" 2 AWG OEM, 2-14 AWG wire range, tin plated aluminum with hex socket screw, aluminum or copper wire, CU9AL, 90C temperature rating, single wire terminal, UL Recognized at 600v - acceptable for use through 2000v. The most compact #2 AWG wire connector available.





For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2 AWG OEM Box Collar Lug 2-14 AWG

Purchase
B2B

2 AWG Lug

Wire Range Rating Screw Type Bus Bar
1 to 569pcs
$0.70/ea
(or)
570pcs & up
$0.52/ea

(or)
3500 pcs
"full box"
$0.39/ea

*2-14 AWG CU9AL Slotted Screw 65 AMPS COPPER
ALLOY BUS
CROSS SECTION
.312 x .045

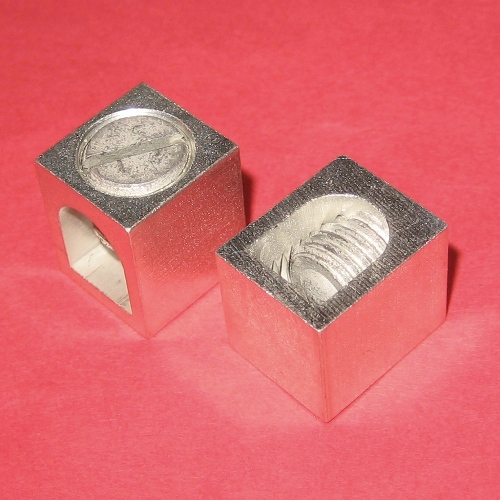

IHI B2B 2 AWG wire colar connector 2-14 awg tang bus mounted

dimensions diagram

Dimensions

A: 0.47" (11.9mm)

B: 0.58" (14.7mm)

C: 0.49" (12.4mm)

See Mechanical Drawing for detailed dimensions

*Wire range only valid with use of a bus bar or staple.



B2B multiple wires per barrel:

two #10 only



"B2B" 2 AWG OEM, 2-14 AWG wire range, tin plated aluminum with tin plated aluminum screw, aluminum or copper wire, CU9AL,90C temperature rating, single wire terminal, and two UL Recognized at 600v - acceptable for use through 2000v. Heavy Duty #2 AWG wire connector.



Temperature Range and Rating Guide



Please email for higher volume prices



La gama del cable de AWG 2-14, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo conductor, UL Certificó.

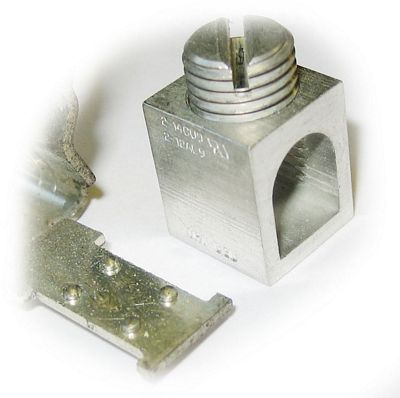

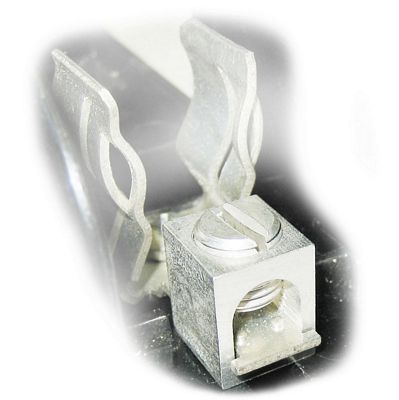

B2b with 2 wires and fuse cliptypical bus configuration for B2B aluminum collar box lug example of fuse clip use of B2B wire and cable termination collar or box lug

Two wire application

(#10 wire size only)





B2B
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2 AWG OEM Box Collar Lug 2-14 AWG

Purchase
B2C

2 AWG Lug

Wire Range Rating Screw Type Bus Bar
1 to 869pcs
$0.60/ea
(or)
870pcs & up
$0.45/ea

(or)
2500 pcs
"full box"
$0.34/ea

*2-14 AWG CU7AL .051" Slotted Screw 115 AMPS COPPER ALLOY BUS CROSS SECTION .25 x .04 OR .25 x .05 OR 50 AMPS BUS .25 x .032

IHI B2C 2 AWG collar terminal

dimensions diagram

Dimensions

A: 0.47" (11.9mm)

B: 0.66" (16.8mm)

C: 0.41" (10.4mm)

See Mechanical Drawing for detailed dimensions

*Wire range only valid with use of a bus bar or staple.



"B2C" 2 AWG OEM, 2-14 AWG wire range, single wire, tin plated aluminum with steel screw, aluminum or copper wire, CU7AL, 75C temperature rating, OEM bus tang mounted, UL Recognized at 600v - acceptable for use through 2000v, Canada Certified. Larger body style than B2A with more room in wire hole.



Temperature Range and Rating Guide



Please email for higher volume prices



La gama del cable de AWG 2-14, cable de aluminio o cobre, la calificación de la temperatura CU7AL, 75C, solo conductor, UL, Canada Certificó.

Typical application - fuse holder terminal with tee shaped bus



B2C
Click for full Product Profile

PCB version also available here
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2 AWG OEM Box Collar Lug 2-14 AWG

Purchase
B2C-HEX

2 AWG Lug

Wire Range Rating Screw Type Bus Bar
1 to 869pcs
$0.60/ea
(or)
870pcs & up
$0.45/ea

(or)
2500 pcs
"full box"
$0.34/ea

*2-14 AWG CU7AL 5/32" (4mm) Hex Socket Screw 115 AMPS COPPER ALLOY BUS CROSS SECTION .25 x .04 OR .25 x .05 OR 50 AMPS BUS .25 x .032

IHI B2C-HEX 2 AWG collar terminal

dimensions diagram

Dimensions

A: 0.47" (11.9mm)

B: 0.66" (16.8mm)

C: 0.41" (10.4mm)

See Mechanical Drawing for detailed dimensions

*Wire range only valid with use of a bus bar or staple.



"B2C-HEX" 2 AWG OEM, 2-14 AWG wire range, single wire, tin plated aluminum with hex socket set screw, aluminum or copper wire, CU7AL, 75C temperature rating, OEM bus tang mounted, UL Recognized at 600v - acceptable for use through 2000v, Canada Certified. Larger body style than B2A with more room in wire hole.



Temperature Range and Rating Guide



Please email for higher volume prices

B2C-HEX
Click for full Product Profile

PCB version also available here
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2 AWG OEM Box Collar Lug 2-14 AWG

Purchase
B2C-SS

2 AWG Lug

Wire Range Rating Screw Type Bus Bar
1 to 869pcs
$1.11/ea
(or)
870pcs & up
$0.83/ea

(or)

2500 pcs
"full box"
$0.62/ea

*2-14 AWG CU7AL .051" Stainless Steel Slotted Screw 115 AMPS COPPER ALLOY BUS CROSS SECTION .25 x .04 OR .25 x .05 or
OR
50 AMPS BUS
.25 x .032

IHI B2C 2 AWG collar terminal

dimensions diagram

Dimensions

A: 0.47" (11.9mm)

B: 0.66" (16.8mm)

C: 0.41" (10.4mm)

See Mechanical Drawing for detailed dimensions

*Wire range only valid with use of a bus bar or staple.



"B2C-SS" 2 AWG OEM, 2-14 AWG wire range, single wire, tin plated aluminum with stainless steel screw, aluminum or copper wire, CU7AL, 75C temperature rating, OEM bus tang mounted, UL Recognized at 600v - acceptable for use through 2000v, Canada Certified. Larger body style than B2A with more room in wire hole.



Temperature Range and Rating Guide



Please email for higher volume prices



"B2C -SS" OEM, 2-14 rango de cable AWG , solo alambre , estaño chapado de aluminio con tornillo de acero inoxidable, aluminio o cobre alambre, CU7AL , 75C clasificación de temperatura , autobús OEM tang montado , UL Reconocido , certificado por Canada . Agrandar el estilo de la carrocería de B2A con más espacio en el agujero alambre.



B2C-SS
Click for full Product Profile

PCB version also available here
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

1/0 AWG OEM Box Collar Lug 1/0-8 AWG

Purchase
B1/0

1/0 AWG Lug

Wire Range Rating Screw Type Bus Bar
1 to 549pcs
$1.03/ea
(or)
550pcs & up
$0.77/ea

(or)
1800 pcs
"full box"
$0.58/ea

*1/0-8 AWG CU9AL 5/32" (4mm) Hex Socket Screw 150 AMPS COPPER ALLOY BUS CROSS SECTION 0.36 x .063
IHI B1/0 B1'0 B1-0 collar box lug terminal

dimensions diagram

Dimensions

A: 0.62" (15.7mm)

B: 0.72" (18.3mm)

C: 0.56" (14.2mm)

See Mechanical Drawing for detailed dimensions

*Wire range only valid with use of a bus bar or staple.



"B1/0" OEM, 1/0-8 AWG wire range, single wire, tin plated aluminum with aluminum screw, aluminum or copper wire, CU9AL, 90C temperature rating, single mounting hole, Canada Certified. 5/32" A/F or 4mm A/F Hex Socket Screw



Temperature Range and Rating Guide



Please email for higher volume prices



La gama del cable de AWG 1/0-8, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo conductor, Canada Certificó. Tornillo Llave Hexagonal 4mm(5/32")



Tested and Certified to UL486B /C22.2 No.65 for USA and Canada by Canada







B1/0
Click for full Product Profile

PCB version also available here
For More Information Click the Icons Below
click for PDF document


Agency

Label

NO UL

CSA Logo

US

CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

1/0 AWG Single Wire Lug 1/0-14 AWG

Purchase
S1/0-TP2-W-HEX

1/0 AWG Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 129pcs $2.99/ea
(or)
130pcs & up $2.22/ea

(or)
425 pcs
"full box"
$1.67/ea

2/0-14 AWG 3/16" Hex Socket Screw

M8 x 1.25 bolt

M8 x 1.25 mounting bolt hole CU9AL

S1/0-TP-HEX Single Wire Lug 1/0-14 AWG wire range, Multiple (dual) WIRES

S1/0-TP2-W-HEX 2 wires

Approved for two wire use

dimensions diagram

Dimensions

A: 1.06" (26.9mm)

B: 0.98" (24.9mm)

C: 0.96" (24.4mm)

See Mechanical Drawing for detailed dimensions

"S1/0-TP2-W-HEX" 1/0 AWG single wire lug 1/0-14 AWG wire range, Multiple (dual) Class B/C wires and FLEX wire class G-K including mm2 class 5, 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one M8 x 1.25 mounting hole (recommended mounting bolt: M8 x 1.25 X 16mm long; assumes bus is 1mm minimum thickness) Anti-rotation /turn prevent rib, Hex socket screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand.



UL & Canada Approved for Multiple Wires 2X #14 to 2X #6 and FLEX wire Class G-K sizes #1-#8 AWG
Use of Ferrules (UL Listed) on wires 1-8 AWG


" S1 / 0 - TP2 - W - HEX " 1 / 0-14 AWG rango de cable , múltiples hilos ( dual) Clase B / C y FLEX clase alambre GK incluyendo clase mm2 5 , 1 barril, aluminio o alambre de cobre, CU9AL , 90C clasificación de temperatura , uno M8 x 1.25 agujero de montaje ( tornillo de montaje recomendado : M8 x 1.25 X 16 mm de largo; asume autobús es espesor mínimo de 1 mm ) Anti- rotación / giro a prevenir la costilla, Hex socket tornillo , listado por UL , Canada Certificados. IHI .

150 Amp 75C Cu Wire
170 Amp 90C Cu Wire
120 Amp 75C Al Wire
135 Amp 90C Al Wire



"FLEX"
E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
RoHS 10/10


GUIDE ON FLEX

S1/0-TP2-W-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG OEM Box Collar Lug 2/0-8 AWG

Purchase
B2/0

2/0 AWG Lug

Wire Range Rating Screw Type Bus Bar
1 to 499pcs
$1.10/ea
(or)
500pcs & up
$0.82/ea

(or)

1500 pcs
"full box"
$0.61/ea

*2/0-8 AWG CU7AL 3/16" Hex Socket Screw 175 AMPS COPPER ALLOY BUS CROSS SECTION 0.344 x .065

IHI B2/0 collar box lug terminal

dimensions diagram

Dimensions

A: 0.63" (16.0mm)

B: 0.88" (22.3mm)

C: 0.63" (16.0mm)

See Mechanical Drawing for detailed dimensions



*Wire range only valid with use of a bus bar or staple.



"B2/0" 2/0 AWG OEM box collar lug, 2/0-8 AWG wire range, single wire, tin plated aluminum with aluminum screw, aluminum or copper wire, CU7AL, 75C temperature rating, 3/16" Hex Socket Screw, UL Recognized at 600v - acceptable for use through 2000v. International Hydraulics Inc® brand.



Temperature Range and Rating Guide



Please email for higher volume prices









B2/0
Click for full Product Profile

PCB version also available here
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG OEM Box Collar Lug 2/0-8 AWG

Purchase
B2/0-M

2/0 AWG Lug

Wire Range Rating Screw Type Bus Bar
1 to 499pcs
$1.12/ea
(or)
500pcs & up
$0.84/ea

(or)

1500 pcs
"full box"
$0.63/ea

*2/0-8 AWG CU7AL 3/16" Hex Socket Screw 175 AMPS COPPER ALLOY BUS CROSS SECTION 0.344 x .065

IHI B2/0 collar box lug terminal

dimensions diagram

Dimensions

A: 0.63" (16.0mm)

B: 0.88" (22.3mm)

C: 0.63" (16.0mm)

See Mechanical Drawing for detailed dimensions



*Wire range only valid with use of a bus bar or staple.



"B2/0-M" 2/0 AWG Metric OEM box collar lug, 2/0-8 AWG wire range, single wire, tin plated aluminum with aluminum screw, aluminum or copper wire, CU7AL, 75C temperature rating, 5mm Hex Socket Screw, UL Recognized at 600v - acceptable for use through 2000v. International Hydraulics Inc® brand.



Temperature Range and Rating Guide



Available two weeks after order placement.

Please email for higher volume prices









B2/0-M
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Single Wire Lug 2/0-14 AWG

Purchase
S2/0-TP-W2-36-49-HEX

2/0 AWG Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 199pcs $1.95/ea
(or)
200pcs & up $1.45/ea

(or)
800 pcs
"full box"
$1.09/ea

2/0-14 AWG 3/16" Hex Socket Screw

5/16"

0.36" mounting bolt hole CU9AL
S2/0(TURN-PREVENT RIB)-27-44-HEX SOCKET SCREW, 2/0 AWG single wire lug 2/0AWG - 14 AWG

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.79" (20.0mm)

See Mechanical Drawing for detailed dimensions

"S2/0-TP-W2-36-49-HEX" 2/0 AWG single wire lug 2/0-14 AWG wire range, and FLEX, AWG 1/0-14, wire class G-K including mm2 class 5, 1 barrel, aluminum or copper wire, AL9CU, 90C temperature rating, one mounting hole, Hex Socket screw, 5/16" bolt mounting hole. Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand.


UL & Canada Approved for FLEX wire Class G-K sizes & mm2 class 5 #1/0-#14 AWG
Use of Ferrules (UL Listed) on wires 1/0-14 AWG


" S2/0-TP-W2-36-49-HEX " 2/0-14 rango de cable AWG y FLEX clase alambre GK incluyendo clase 5 mm2, 1 barril, aluminio o alambre de cobre, AL9CU, 90C clasificación de temperatura , un montaje agujero, Hex Socket tornillo, listado por UL, certificado por Canada. Orificio de montaje 3/8" perno. Marca IHI.

175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



"FLEX"
E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
RoHS 10/10



UL & Canada Approved for FLEX wire Class G-K sizes & mm2 class 5 1/0-14 AWG
GUIDE ON FLEX

S2/0-TP-W2-36-49-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Single Wire Lug 2/0-14 AWG

Purchase
S2/0-TP-W-44-49-HEX

2/0 AWG Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 194pcs $2.01/ea
(or)
195pcs & up $1.49/ea

(or)
600 pcs
"full box"
$1.12/ea

2/0-14 AWG 3/16" Hex Socket Screw

3/8"

0.437" mounting bolt hole CU9AL
S2/0(TURN-PREVENT RIB)-27-44-HEX SOCKET SCREW, 2/0 AWg single wire lug 2/0AWG - 14 AWG

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.98" (24.9mm)

See Mechanical Drawing for detailed dimensions

"S2/0-TP-W-44-49-HEX" 2/0 AWG single wire lug 2/0-14 AWG wire range, and FLEX, AWG 1/0-14, wire class G-K including mm2 class 5, 1 barrel, aluminum or copper wire, AL9CU, 90C temperature rating, one mounting hole, Hex Socket screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 3/8" bolt mounting hole. IHI Connectors® brand.


UL & Canada Approved for FLEX wire Class G-K sizes & mm2 class 5 #1/0-#14 AWG
Use of Ferrules (UL Listed) on wires 1/0-14 AWG


" S2/0-TP-W-44-49-HEX " 2/0-14 rango de cable AWG y FLEX clase alambre GK incluyendo clase 5 mm2, 1 barril, aluminio o alambre de cobre, AL9CU, 90C clasificación de temperatura , un montaje agujero, Hex Socket tornillo, listado por UL, certificado por Canada. Orificio de montaje 3/8" perno. Marca IHI.

175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



"FLEX"
E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
RoHS 10/10



UL & Canada Approved for FLEX wire Class G-K sizes & mm2 class 5 1/0-14 AWG
GUIDE ON FLEX

S2/0-TP-W-44-49-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10





Part No. 300 kcmil OEM Box Collar Lug 300 kcmil- 4 AWG Purchase Options

B300

300 kcmil Lug

Wire Range Rating Screw / Drive Head Bus Bar

1 to 199pcs

$2.04/ea

(or)

200 to 699

$1.52/ea

(or)

700pcs

"1 full box"

$1.14/ea

California Residents WARNING
300 kcmil-4 AWG

CU7AL

1/4" HEX (6.3mm)

Socket Screw

285A

.12 x .63 tin plated aluminum or copper

or

2 x .125 x .63 tin plated copper

B300, 300 kcmil high AMP PCB wire lug 300 kcmil- 4 AWG

dimensions diagram

Dimensions

A: 0.94" (23.9mm)

B: 1.20" (30.5mm)

C: 0.80" (20.32mm)

D: 0.27" (6.9mm)

See Mechanical Drawing for detailed dimensions

*Wire range only valid with use of a bus bar or staple.



B300: 300 kcmil, 285A AMP, 1/4" HEX socket screw, 300 kcmil-4 AWG wire range. Tin plated aluminum screw. Bus cross section .25 x .62 aluminum bus. Side wire, and top screw entrance. International Hydraulics Inc.



Mounting option, click for more information:

B300 alternate mounting option



Temperature Range and Rating Guide



E129884 ZMVV2, Subject to Conditions of Acceptablity





PCB version also available here


B300
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label


UL CSA Certificate Link

RoHS 9/10


Return to Top
Part No.

4 AWG OEM Box Collar Lug 4-14 AWG

Purchase
BTP350

350 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 109pcs
$3.58/ea
(or)
110pcs & up
$2.66/ea

(or)
625 pcs
"full box"
$2.00/ea

350kcmil-6 AWG Hex Socket Screw

1/4-20 threaded bolt



1/4-20 threaded mounting hole CU7AL
BTP350 350 kcmil Box or Collar connector lug with 1/4-20 threaded mounting hole and Turn Prevent rib 350kcmil -6AWG

dimensions diagram

Dimensions

A: 0.85" (21.6mm)

B: 1.10" (27.9mm)

C: 0.85" (21.6mm)

I: 0.42" (10.7mm)

See Mechanical Drawing for detailed dimensions

"BTP350" 350 kcmil OEM, 350kcmil-6AWG wire range, collar /box type connector, Turn Prevent Rib, 1/4-20 threaded mounting hole for bus, tang, or Neutral Bar mounting. 0.44" from hole to bus end, single wire, tin plated aluminum with aluminum screw, dual rated for aluminum or copper wire, CU7AL, 75C temperature rating, single mounting hole, UL Recognized at 600v - acceptable for use through 2000v. Hex Socket Screw, Brumall brand. Made in the USA from domestic and imported parts.

Tested and Certified to UL486 USA and C22.2 No.65 for Canada

1/4-20 threaded mounting hole for bus, tang, or Neutral Bar mounting. 0.44" from hole to bus end



Please email for
higher volume prices

BTP350
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

ZMVV2.E61509



RoHS 10/10


Return to Top


Copyright © 2024 Advancement International Ltd, Aurora Ohio - All Rights Reserved
Advancement International Ltd is a registered company of Ohio, USA
IHI® is the Registered Trademark of International Hydraulics Inc.
LugsDirect.com is owned and operated by Advancement International Ltd.
DUNS # 148692197, REGISTERED WITH CCR, CAGE / NCAGE NUMBER 5A6R9,
A2 WOMAN OWNED SMALL BUSINESS, NAICS 423610, SIC 3643,
Made in the USA from domestic and imported parts. USMCA CERTIFICATES AVAILABLE
