Buy Single Wire Lugs

(1 Wire Termination per Lug) and selected lugs approved for FLEX, flexible wire
& cable from #14 to 444 kcmil including classes G, H, I, DLO, K & metric mm2 class 5


Tip: Parts listed in order of increasing Wire Size
Compre Conectores mecanicos para un conductor



Search by Wire Size



6 AWG | 4 AWG | 2 AWG | 1/0 AWG | 2/0 AWG | 3/0 AWG



4/0 AWG | 250 kcmil | 300 kcmil | 350 kcmil | 500 kcmil



600 kcmil | 750 kcmil | 800 kcmil | 1000 kcmil | 1500 kcmil



Part Number
& Image
(Click for larger view)

Description and Information

Pricing and
Purchasing

Part No.

6 AWG Single Wire Single Barrel Mechanical Lug 6-14 AWG

Purchase

S6

6 AWG Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 899pcs
$0.62/ea
(or)
900pcs
$0.46/ea

(or)
3000 pcs
"full box"
$0.35/ea

6 - 14 AWG 0.045" Slotted Screw

1/4"

0.26" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S6 6 AWG Single wire lug 6 AWG - 14 AWG

dimensions diagram

Dimensions

A: 1.06" (27.0mm)

B: 0.50" (12.7mm)

C: 0.38" (9.5mm)

See Mechanical Drawing for detailed dimensions

"S6" 6 AWG Single wire lug, 6-14 AWG wire range, 3/8" wide, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 1/4" dia. mounting bolt hole. IHI Connectors® brand. Made in the USA from domestic and imported parts.



Screwdriver Bit Information



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S6 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S6 Print



IEC grounding sybol



"S6" 6-14 gama del conductor de AWG, 3/8" ancho, conductor de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo montar hoyo, UL Listó, Canada Certificó. Solo montar hoyo, de 1/4" tornillo. Marca IHI. Hecho en EE.UU. de partes nacionales e importadas.

65 Amp 75C Cu Wire
75 Amp 90C Cu Wire
50 Amp 75C Al Wire
60 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65,
200116

S6
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

6 AWG Single Wire Single Barrel Mechanical Lug 6-14 AWG

Purchase
S6-203

6 AWG Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating

1 to 899pcs
$0.62/ea
(or)
900pcs & up
$0.46/ea

3000 pcs
"full box"
$0.35/ea

6 - 14 AWG 0.045" Slotted Screw

#10 or M5

0.203" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S6-203 6 AWG Single wire lug 6 AWG -14 AWG

dimensions diagram

Dimensions

A: 1.06" (27.0mm)

B: 0.50" (12.7mm)

C: 0.38" (9.5mm)

See Mechanical Drawing for detailed dimensions

"S6-203" 6 AWG Single wire lug, 6-14 AWG wire range , 3/8" wide, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole , Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 0.203 dia. #10 or M5 mounting bolt hole. IHI Connectors® brand. Made in the USA from domestic and imported parts.



Screwdriver Bit Information



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S6 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S6-203 Print



IEC grounding sybol



"S6-203" 6-14 gama del conductor de AWG, 3/8" ancho, conductor de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo montar hoyo, UL Listó, Canada Certificó. Solo montar hoyo, de M5" o #10 tornillo. Marca IHI. Hecho en EE.UU. de partes nacionales e importadas.

65 Amp 75C Cu Wire
75 Amp 90C Cu Wire
50 Amp 75C Al Wire
60 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65,
200116

S6-203
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Agency
Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

6 AWG Single Wire Single Barrel Mechanical Lug 6-14 AWG

Purchase
S6W

6 AWG Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 799pcs
$0.66/ea
(or)
800pcs & up
$0.49/ea

2500 pcs
"full box"
$0.37/ea



6 - 14 AWG 0.045" Slotted Screw

1/4"

0.28" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S6W 6 AWG Single wire lug 6 AWG - 14 AWG

dimensions diagram

Dimensions

A: 1.06" (27.0mm)

B: 0.50" (12.7mm)

C: 0.50" (12.7mm)

See Mechanical Drawing for detailed dimensions

"S6W" 6 AWG Single wire lug, 6-14 AWG wire range , 1/2" wide, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole , Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 1/4" mounting bolt hole. IHI Connectors® brand. Made in the USA from domestic and imported parts.



Screwdriver Bit Information



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S6 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S6W Print



IEC grounding sybol



"S6W" 6-14 gama del conductor de AWG, 1/2" ancho, conductor de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo montar hoyo, UL Listó, Canada Certificó. Solo montar hoyo, de 1/4" tornillo. Marca IHI. Hecho en EE.UU. de partes nacionales e importadas.

65 Amp 75C Cu Wire
75 Amp 90C Cu Wire
50 Amp 75C Al Wire
60 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65,
200116

S6W
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Agency
Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

4 AWG Single Wire Single Barrel Mechanical Lug 4-14 AWG

Purchase
6T

4 AWG Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 849pcs
$0.46/ea
(or)
850pcs & up
$0.34/ea

2500pcs
"full box"
$0.25/ea



4 - 14 AWG Robertson Slotted Screw

#10

0.193" mounting bolt hole CU9AL
6T 4 AWG Single wire lug 4 AWG - 14 AWG

dimensions diagram

Dimensions

A: 0.835" (27.0mm)

B: 0.50" (12.7mm)

C: 0.38" (9.5mm)

See Mechanical Drawing for detailed dimensions

"6T" 4 AWG Single wire lug, 4-14 AWG wire range, 3/8" wide, very compact size, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole , Robertson-Slot head wire screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. #10 bolt mounting hole. Brumall brand. Made in the USA from domestic and imported parts.



IEC grounding sybol


"6T" 4-14 gama del conductor de AWG, 3/8" ancho, muy compacto, conductor de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo montar hoyo, UL Listó, Canada Certificó. solo montar hoyo, de #10 tornillo. Marca Brumall. Hecho en EE.UU. de partes nacionales e importadas.

85 Amp 75C Cu wire 95Amp 90C Cu wire
65 Amp 75C Al Wire
75 Amp 90C Al Wire



E61509 UL486A,B,
ZMVV, Canada22.2 No.65,
200116



VERY COMPACT
3/8" WIDE, #10 BOLT

6T
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Agency
Label

UL Logo
CSA Logo

RoHS 10/10


Return to Top
Part No.

4 AWG Single Wire Single Barrel Mechanical Lug 4-14 AWG, FLEX 10-14 AWG*

Purchase
S4

4 AWG Lug

FLEX 10-14 AWG*

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 669pcs
$0.66/ea
(or)
670pcs & up
$0.49/ea

2000pcs
"full box"
$0.37/ea



4 - 14 AWG
FLEX 10-14 AWG*
0.045" Slotted Screw

1/4"

0.27" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S4 4 AWG Single wire lug  4 AWG - 14 AWG

dimensions diagram

Dimensions

A: 1.06" (27.0mm)

B: 0.50" (12.7mm)

C: 0.50" (12.7mm)

See Mechanical Drawing for detailed dimensions

Two Wires Per Barrel

Wire Size AWG (mm2)

8

(8.37)

-

(6)

10

(5.26)

-

(4)

12

(3.31)

-

(2.5)

14

(2.08)

Code Copper Stranded Y - Y Y Y Y Y
Code Copper Solid - - Y Y Y Y Y
Aluminum Y - - - - - -
FLEX (B-K classes)* - - Y* Y* Y* Y* Y*

No mixing wire gauges.

*Only with use of single or twin UL Listed ferrule



"S4" 4 AWG Single wire lug, 4-14 AWG wire range, wire class B/C and FLEX, 10-14 AWG, wire class B-K including mm2 class 5, only with use of UL listed ferrule, 1/2" wide, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 1/4" mounting bolt hole. IHI Connectors® brand. Made in the USA from domestic and imported parts.



Screwdriver Bit Information



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S4 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S4 Print



IEC grounding sybol

85 Amp 75C Cu wire 95Amp 90C Cu wire
65 Amp 75C Al Wire
75 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65,
200116

S4
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Agency
Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

4 AWG Single Wire Grounding Mechanical Lug 4-14 AWG

Purchase
GLA-4

4 AWG Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 499pcs
$0.72/ea
(or)
500pcs & up
$0.53/ea

1800pcs
"full box"
$0.40/ea



4 - 14 AWG Slotted Screw

#10

0.218" mounting bolt hole CUAL
GLA-4 4 AWG Single wire lug 4 AWG - 14 AWG GROUNDING LUG

dimensions diagram

Dimensions

A: 1.07" (27.2mm)

B: 0.75" (19.1mm)

C: 0.38" (9.7mm)

See Mechanical Drawing for detailed dimensions



"GLA-4" 4 AWG Single wire lug, 4-14 AWG wire range, LAY IN type GROUNDING LUG, 3/8" wide, aluminum or copper wire, tin plated aluminum body, plated steel screw, CUAL, grounding use or power use, ZMVV2 (UL Recognized); The final acceptance of the component is dependent upon its installation and use in complete equipment submitted to UL. one mounting hole, .21 dia. for #10 bolt, serrations on mounting surface to resist lug rotation. UL recognized at 600v - acceptable for use through 2000v Brumall brand. Made in the USA from domestic and imported parts. Grounding only. Dry locations only.



"GLA-4" 4-14 gama del conductor de AWG, 3/8" ancho, conductor de aluminio o cobre, CUAL, solo montar hoyo de #10 tornillo (.21 dia.), Marca Brumall. Hecho en EE.UU. de partes nacionales e importadas.

Cross Reference:
Ilsco: GBL-4
CMC PENN-UNION:
LI-50S
T&B Blackburn: LL414
HOMAC: CLA-70-219
FCI Burndy: BGBL-4
NSI: GLA-4



NOTE: "UR" IS NOT STAMPED ON PART DUE TO LIMITED SPACE BUT UR CERT IS VIEWABLE ON LINE AT UL
(NOT Canada Certified)

GLA-4
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Agency
Label

UL Recognized Logo

RoSH 5/6


Return to Top
Part No.

2 AWG Single Wire Single Barrel Mechanical Lug 2-14 AWG, FLEX 4-12 AWG

Purchase
S2

2 AWG Lug

FLEX 4-12 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 699pcs
$0.85/ea
(or)
700pcs & up
$0.63/ea

2000 pcs
"full box"
$0.47/ea



2 - 14 AWG

4-16 with ferrule**
FLEX 4-12 AWG

0.051" Slotted Screw

1/4"

0.281" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S2 2 AWG Single wire lug 2 AWG - 14 -AWG

dimensions diagram

Dimensions

A: 1.16" (29.4mm)

B: 0.56" (14.8mm)

C: 0.50" (12.7mm)

See Mechanical Drawing for detailed dimensions

Two Wires Per Barrel

Wire Size AWG (mm2)

8

(8.37)

-

(6)

10

(5.26)

-

(4)

12

(3.31)

-

(2.5)

14

(2.08)

Code Copper - - Y Y Y Y Y
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S2" 2 AWG Single wire lug, 2-14 AWG wire range, Multiple (dual) wire class B/C and FLEX, 4-12 AWG, 25mm2-4mm2, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 1/4" mounting bolt hole. IHI Connectors® brand. "Drop-In" Replacement for Homac A-90 and Panduit LAMA2-14-Q. Made in the USA from domestic and imported parts.



Screwdriver Bit Information



Aluminum screw option available. Email sales@lugsdirect.com for details and pricing.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2 Print



IEC grounding sybol

**TORK KRIMP® TORK KRIMP® ICON - patent pendingMethod for clamping wires using uncrimped ferrules is protected under Patent No. 10630005. Full instructions for self crimping ferrules here.

115 Amp 75C Cu Wire
130 Amp 90C Cu Wire
90 Amp 75C Al Wire
100 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



STANDARD, 1/4" Bolt
Standard Slotted
screw drive

S2
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10

Cross Reference:
Blackburn T&B: ADR-2 | Brumall NSI: 2T |  Burndy: KA-2U | CMC: LA-70 | Homac: A-90 | Panduit: LAMA2-14-Q |  Penn Union: LA-2

Return to Top
Part No.

2 AWG Single Wire Single Barrel Mechanical Lug 2-14 AWG, FLEX 2-14 AWG

Purchase

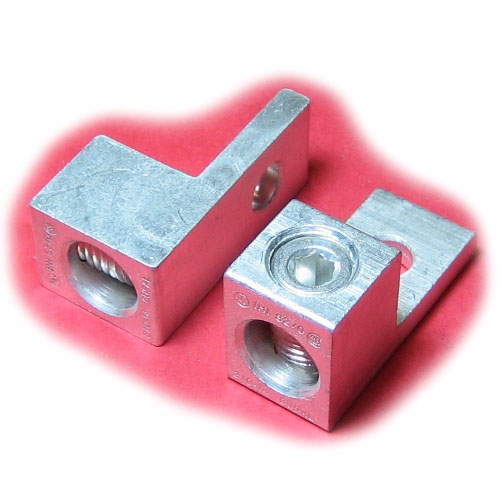

S2-HEX

2 AWG Lug

FLEX 4-12 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 769pcs
$0.85/ea
(or)
770pcs & up
$0.63/ea

2000 pcs
"full box"
$0.47/ea



2 - 14 AWG

4-16 with ferrule**
FLEX 4-12 AWG

5/32" (4mm) Hex Socket Screw

1/4"

0.281" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S2 HEX SCREW 2 AWG Single wire lug 2 AWG - 14 AWG

dimensions diagram

Dimensions

A: 1.16" (29.4mm)

B: 0.56" (14.8mm)

C: 0.50" (12.7mm)

See Mechanical Drawing for detailed dimensions

Two Wires Per Barrel

Wire Size AWG (mm2)

8

(8.37)

-

(6)

10

(5.26)

-

(4)

12

(3.31)

-

(2.5)

14

(2.08)

Code Copper - - Y Y Y Y Y
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S2-HEX" 2 AWG Single wire lug, 2-14 AWG wire range, Multiple (dual) wire class B/C and FLEX, 4-12 AWG, 25mm2-4mm2, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, universal Hex socket wire screw 4mm & 5/32" across flats key. Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. One 1/4" bolt (6mm) mounting bolt hole. IHI Connectors® brand. Made in the USA from domestic and imported parts.



Aluminum screw option available. Email sales@lugsdirect.com for details and pricing.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2-HEX Print



IEC grounding sybol

**TORK KRIMP® TORK KRIMP® ICON - patent pendingMethod for clamping wires using uncrimped ferrules is protected under Patent No. 10630005. Full instructions for self crimping ferrules here.

115 Amp 75C Cu Wire
130 Amp 90C Cu Wire
90 Amp 75C Al Wire
100 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



Universal hex socket for 5/32" and 4mm Allen key

S2-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2 AWG Single Wire Single Barrel Mechanical Lug 2-14 AWG, FLEX 2-14 AWG

Purchase
S2-171

2 AWG Lug

FLEX 4-12 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 579pcs
$0.85/ea
(or)
580pcs & up
$0.63/ea

2000 pcs
"full box"
$0.47/ea



2 - 14 AWG

4-16 with ferrule**
FLEX 4-12 AWG

0.051" SlottedScrew

#8

0.171" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S2-171 2 AWG Single wire lug 2 AWG - 14 AWG

dimensions diagram

Dimensions

A: 1.16" (29.4mm)

B: 0.56" (14.8mm)

C: 0.50" (12.7mm)

See Mechanical Drawing for detailed dimensions

Two Wires Per Barrel

Wire Size AWG (mm2)

8

(8.37)

-

(6)

10

(5.26)

-

(4)

12

(3.31)

-

(2.5)

14

(2.08)

Code Copper - - Y Y Y Y Y
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S2-171" 2 AWG Single wire lug, 2-14 AWG wire range, Multiple (dual) wire class B/C and FLEX, 4-12 AWG, 25mm2-4mm2, wire class G-K including mm2 class 5, single barrel, small Mounting hole Version (.171" dia.) #8 screw or rivet for PCB mount and other specialty applications. Slotted Set Screw. aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole , Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. Made in the USA from domestic and imported parts.



Screwdriver Bit Information



Aluminum screw option available. Email sales@lugsdirect.com for details and pricing.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2-171 Print



IEC grounding sybol

**TORK KRIMP® TORK KRIMP® ICON - patent pendingMethod for clamping wires using uncrimped ferrules is protected under Patent No. 10630005. Full instructions for self crimping ferrules here.

115 Amp 75C Cu Wire
130 Amp 90C Cu Wire
90 Amp 75C Al Wire
100 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



#8 Mounting Screw hole
Useful for PCB &
small screw or rivet mounting

S2-171
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2 AWG Single Wire Single Barrel Mechanical Lug 2-14 AWG, FLEX 2-14 AWG

Purchase
S2-171-HEX

2 AWG Lug

FLEX 4-12 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 579pcs
$0.85/ea
(or)
580pcs & up
$0.63/ea

2000 pcs
"full box"
$0.47/ea



2 - 14 AWG

4-16 with ferrule**
FLEX 4-12 AWG

5/32" (4mm) Hex Socket Screw

#8

0.171" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S2-171 HEX SOCKET SCREW 2 AWG Single wire lug 2 AWG - 14 AWG

dimensions diagram

Dimensions

A: 1.16" (29.4mm)

B: 0.56" (14.8mm)

C: 0.50" (12.7mm)

See Mechanical Drawing for detailed dimensions

Two Wires Per Barrel

Wire Size AWG (mm2)

8

(8.37)

-

(6)

10

(5.26)

-

(4)

12

(3.31)

-

(2.5)

14

(2.08)

Code Copper - - Y Y Y Y Y
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S2-171-HEX" 2 AWG Single wire lug, 2-14 AWG wire range, Multiple (dual) wire class B/C and FLEX, 4-12 AWG, 25mm2-4mm2, wire class G-K including mm2 class 5, single barrel, small Mounting hole Version (.171" dia.) #8 screw or rivet for PCB mount and other specialty applications. Hex Socket Screw. aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. Made in the USA from domestic and imported parts.



Aluminum screw option available, part number S2-171-13627.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2-171-HEX Print



IEC grounding sybol

**TORK KRIMP® TORK KRIMP® ICON - patent pendingMethod for clamping wires using uncrimped ferrules is protected under Patent No. 10630005. Full instructions for self crimping ferrules here.

115 Amp 75C Cu Wire
130 Amp 90C Cu Wire
90 Amp 75C Al Wire
100 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



#8 Mounting Screw hole
Useful for PCB &
small screw or rivet mounting

S2-171-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2 AWG Single Wire Single Barrel Mechanical Lug 2-14 AWG, FLEX 2-14 AWG

Purchase
S2-171-13627

2 AWG Lug

FLEX 4-12 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating

Part is available

for custom orders.

MOQ box quantities (2000pcs+). Contact

sales@lugsdirect.com

or call 330-562-8983

for details.

2 - 14 AWG

4-16 with ferrule**
FLEX4-12 AWG

1/8" Hex Socket Screw

#8

0.171" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S2-171-13627 aluminum HEX SOCKET SCREW 2 AWG Single wire lug 2 AWG - 14 AWG

dimensions diagram

Dimensions

A: 1.16" (29.4mm)

B: 0.56" (14.8mm)

C: 0.50" (12.7mm)

See Mechanical Drawing for detailed dimensions



Two Wires Per Barrel

Wire Size AWG (mm2)

8

(8.37)

-

(6)

10

(5.26)

-

(4)

12

(3.31)

-

(2.5)

14

(2.08)

Code Copper - - Y Y Y Y Y
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S2-171-13627" 2 AWG Single wire lug, 2-14 AWG wire range, Multiple (dual) wire class B/C and FLEX, 4-12 AWG, 25mm2-4mm2, wire class G-K including mm2 class 5, single barrel, small Mounting hole Version (.171" dia.) #8 screw or rivet for PCB mount and other specialty applications. Aluminum Hex Socket Screw. aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. International Hydraulics Inc.



Steel screw option available.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2-171-13627 Print



IEC grounding sybol

**TORK KRIMP® TORK KRIMP® ICON - patent pendingMethod for clamping wires using uncrimped ferrules is protected under Patent No. 10630005. Full instructions for self crimping ferrules here.



115 Amp 75C Cu Wire
130 Amp 90C Cu Wire
90 Amp 75C Al Wire
100 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



#8 Mounting Screw hole
Useful for PCB &
small screw or rivet mounting

S2-171-13627
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2 AWG Single Wire Single Barrel Mechanical Lug 2-14 AWG, FLEX 2-14 AWG

Purchase
S2-TP

2 AWG Lug

FLEX 4-12 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 599pcs
$0.94/ea
(or)
600pcs & up
$0.70/ea

1800 pcs
"full box"
$0.52/ea



2 - 14 AWG

4-16 with ferrule**
FLEX 4-12 AWG

0.051" Slotted Screw

1/4"

0.26" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S2-TP 2 AWG Single wire lug, 2-14 AWG wire range with turn prevent rib, slotted screw

dimensions diagram

Dimensions

A: 1.16" (29.4mm)

B: 0.56" (14.8mm)

C: 0.50" (12.7mm)

I: 0.26" (6.6mm)

See Mechanical Drawing for detailed dimensions



Two Wires Per Barrel

Wire Size AWG (mm2)

8

(8.37)

-

(6)

10

(5.26)

-

(4)

12

(3.31)

-

(2.5)

14

(2.08)

Code Copper - - Y Y Y Y Y
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S2-TP" 2 AWG Single wire lug, 2-14 AWG wire range, Multiple (dual) wire class B/C and FLEX, 4-12 AWG, 25mm2-4mm2, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole with anti-rotation rib(turn prevent) , Slotted Screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 1/4" bolt. IHI Connectors® brand. Made in the USA from domestic and imported parts.



Screwdriver Bit Information



Aluminum screw option available. Email sales@lugsdirect.com for details and pricing.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2-TP Print



IEC grounding sybol

**TORK KRIMP® TORK KRIMP® ICON - patent pendingMethod for clamping wires using uncrimped ferrules is protected under Patent No. 10630005. Full instructions for self crimping ferrules here.

115 Amp 75C Cu Wire
130 Amp 90C Cu Wire
90 Amp 75C Al Wire
100 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



Turn Prevent Rib 0.333" (8.46mm)
from mounting hole
to rib face

S2-TP
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2 AWG Single Wire Single Barrel Mechanical Lug 2-14 AWG, FLEX 2-14 AWG

Purchase
S2-TP-HEX

2 AWG Lug

FLEX 4-12 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 599pcs
$0.94/ea
(or)
525pcs & up
$0.70/ea

2000 pcs
"full box"
$0.52/ea



2 - 14 AWG

4-16 with ferrule**
FLEX 4-12 AWG

5/32" (4mm) Hex Socket Screw

1/4"

0.26" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S2-TP 2 AWG Single wire lug, 2-14 AWG wire range with turn prevent rib, slotted screw

dimensions diagram

Dimensions

A: 1.16" (29.4mm)

B: 0.56" (14.8mm)

C: 0.50" (12.7mm)

I: 0.26" (6.6mm)

See Mechanical Drawing for detailed dimensions



Two Wires Per Barrel

Wire Size AWG (mm2)

8

(8.37)

-

(6)

10

(5.26)

-

(4)

12

(3.31)

-

(2.5)

14

(2.08)

Code Copper - - Y Y Y Y Y
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S2-TP-HEX" 2 AWG Single wire lug, 2-14 AWG wire range, Multiple (dual) wire class B/C and FLEX, 4-12 AWG, 25mm2-4mm2, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole with anti-rotation rib(turn prevent) , hex socket set screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 1/4" bolt. IHI Connectors® brand. Made in the USA from domestic and imported parts.



Aluminum screw option available. Email sales@lugsdirect.com for details and pricing



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2-TP Print



IEC grounding sybol

**TORK KRIMP® TORK KRIMP® ICON - patent pendingMethod for clamping wires using uncrimped ferrules is protected under Patent No. 10630005. Full instructions for self crimping ferrules here.

115 Amp 75C Cu Wire
130 Amp 90C Cu Wire
90 Amp 75C Al Wire
100 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



Turn Prevent Rib 0.333" (8.46mm)
from mounting hole
to rib face

S2-TP-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

1/0 AWG Single Wire Single Barrel Mechanical Lug 1/0-14 AWG, FLEX 1-8 AWG

Purchase
S1/0

1/0 AWG Lug

FLEX 1-8 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 299pcs $1.25/ea
(or)
300pcs & up $0.93/ea

1000 pcs
"full box"
$0.70/ea



California Residents WARNING



1/0 - 14 AWG
FLEX 1-8 AWG
0.072" Slotted Screw

1/4"

0.281" mounting bolt hole CU9AL
S1/0 1/0 AWG Single wire lug 1/0 AWG - 14 AWG

S1/0 two wires

Approved for two wire use

2S1/0 and S1/0 dual stacking, nesting and interlocking lugs three wire application

Dual Interlocking Lugs/

Three Wire Application

2S1/0 and S1/0

3S6-2S4-HEX and S1/0 dual stacking, nesting and interlocking lugs 7 wire application

Dual/Interlocking Lugs

6-7 Wire Application

S1/0 and 3S6-2S4-HEX



Hardware not included.

Lugs sold individually.



For more interlocking lugs

click here.

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.63" (15.9mm)

See Mechanical Drawing for detailed dimensions

Two Wires Per Barrel

Wire Size AWG (mm2)

4

(21.2)

-

(16)

6

(13.3)

-

(10)

8

(8.37)

-

(6)

10

(5.26)

-

(4)

12

(3.31)

-

(2.5)

14

(2.08)

Code Copper Y Y Y Y Y Y Y Y Y Y Y
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S1/0" 1/0 AWG Single wire lug, 1/0-14 AWG wire range, Multiple (dual) wire class B/C and FLEX, 1-8 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, slotted screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 1/4" bolt mounting hole. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. IHI Connectors® brand. "Drop-In" Replacement for Homac A-125 and Panduit LAMA1/0-14-Q. Made in the USA from domestic and imported parts.



UL & Canada Approved for Multiple Wires 2X #14 to 2X #4 and (1X) FLEX wire class G-K sizes #1-#8 AWG
Use of Ferrules (UL Listed) on wires 1-8 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S1/0 Style No. 1,5

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S1/0 Print



IEC grounding sybol



WIRE CONNECTORS AND SOLDERING LUGS (ZMVV)



INSTALLATION

Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.

"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make complete contact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book ZMVV section



ZMVV UL Whitebook Installation Information

150 Amp 75C Cu Wire
170 Amp 90C Cu Wire
120 Amp 75C Al Wire
135 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65


GUIDE ON FLEX

S1/0
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 9/10


Return to Top
Part No.

1/0 AWG Single Wire Single Barrel Mechanical Lug 1/0-14 AWG, FLEX 1-8 AWG

Purchase
S1/0-HEX

1/0 AWG Lug

FLEX 1-8 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 276pcs $1.24/ea
(or)
277pcs & up $0.92/ea

1000 pcs
"full box"
$0.69/ea



1/0 - 14 AWG
FLEX 1-8 AWG
3/16" Hex Socket Screw

1/4"

0.281" mounting bolt hole CU9AL
S1/0 HEX SCREW 1/0 AWG Single wire lug 1/0AWG - 14 AWG

S1-0-HEX 2 wires

Approved for two wire use

2S1/0 and S1/0 dual stacking, nesting and interlocking lugs three wire application

Dual Interlocking Lugs/

Three Wire Application

2S1/0 and S1/0

3S6-2S4-HEX and S1/0-HEX dual stacking, nesting and interlocking lugs 7 wire application

Dual/Interlocking Lugs

6-7 Wire Application

S1/0-HEX and 3S6-2S4-HEX



Hardware not included.

Lugs sold individually.



For more interlocking lugs

click here.

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.63" (15.9mm)

See Mechanical Drawing for detailed dimensions

Two Wires Per Barrel

Wire Size AWG (mm2)

4

(21.2)

-

(16)

6

(13.3)

-

(10)

8

(8.37)

-

(6)

10

(5.26)

-

(4)

12

(3.31)

-

(2.5)

14

(2.08)

Code Copper Y Y Y Y Y Y Y Y Y Y Y
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S1/0-HEX" 1/0 AWG Single wire lug, 1/0-14 AWG wire range, Multiple (dual) wire class B/C and FLEX, 1-8 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, 3/16" A/F Hex Socket Drive screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 1/4" bolt mounting hole. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. IHI Connectors® brand. Made in the USA from domestic and imported parts.

UL & Canada Approved for Multiple Wires 2X #14 to 2X #4 and (1X) FLEX wire class G-K sizes #1-#8 AWG
Use of Ferrules (UL Listed) on wires 1-8 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S1/0 Style No. 1,5

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S1/0-HEX Print



IEC grounding sybol



WIRE CONNECTORS AND SOLDERING LUGS (ZMVV)



INSTALLATION

Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.

"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make complete contact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book ZMVV section



ZMVV UL Whitebook Installation Information

150 Amp 75C Cu Wire
170 Amp 90C Cu Wire
120 Amp 75C Al Wire
135 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116

GUIDE ON FLEX

S1/0-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

1/0 AWG Metric Single Wire Single Barrel Mechanical Lug 1/0-14 AWG, FLEX 1-8 AWG

Purchase
S1/0-HEX-M

1/0 AWG Lug

FLEX 1-8 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 276pcs $1.26/ea
(or)
277pcs & up $0.93/ea

1000 pcs
"full box"
$0.70/ea



1/0 - 14 AWG
FLEX 1-8 AWG
5mm Hex Socket Screw

1/4"

0.281" mounting bolt hole CU9AL
S1/0 metric HEX SCREW 1/0 AWG Single wire lug 1/0AWG - 14 AWG

S1/0-HEX-M 2 wires

Approved for two wire use

2S1/0 and S1/0 dual stacking, nesting and interlocking lugs three wire application

Dual Interlocking Lugs/

Three Wire Application

2S1/0 and S1/0

3S6-2S4-HEX and S1/0-HEX dual interlocking lugs 7 wire application

Dual/Interlocking Lugs

6-7 Wire Application

S1/0-HEX-M and 3S6-2S4-HEX-M



Hardware not included.

Lugs sold individually



For more interlocking lugs

click here.

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.63" (15.9mm)

See Mechanical Drawing for detailed dimensions



Note!!!   This part has a 5mm hex socket for use in metric countries.



Two Wires Per Barrel

Wire Size AWG (mm2)

4

(21.2)

-

(16)

6

(13.3)

-

(10)

8

(8.37)

-

(6)

10

(5.26)

-

(4)

12

(3.31)

-

(2.5)

14

(2.08)

Code Copper Y Y Y Y Y Y Y Y Y Y Y
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S1/0-HEX-M" 1/0 AWG metric single wire lug, 1/0-14 AWG wire range, Multiple (dual) wire class B/C and FLEX, 1-8 AWG, wire class G-K including mm2 class 5,single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, METRIC 5mm Hex Socket screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 1/4" or 6mm bolt mounting hole. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. IHI Connectors® brand. Made in the USA from domestic and imported parts.

UL & Canada Approved for Multiple Wires 2X #14 to 2X #4 and (1X) FLEX wire class G-K sizes #1-#8 AWG
Use of Ferrules (UL Listed) on wires 1-8 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S1/0 Style No. 1,5

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S1/0-HEX-M Print



IEC grounding sybol



WIRE CONNECTORS AND SOLDERING LUGS (ZMVV)



INSTALLATION

Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.

"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make complete contact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book ZMVV section



ZMVV UL Whitebook Installation Information

150 Amp 75C Cu Wire
170 Amp 90C Cu Wire
120 Amp 75C Al Wire
135 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65

GUIDE ON FLEX

S1/0-HEX-M
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

1/0 AWG Single Wire Single Barrel Mechanical Lug 1/0-14 AWG, FLEX 1-8 AWG

Purchase
S1/0-34-41

1/0 AWG Lug

FLEX 1-8 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating

1 to 289pcs
$1.34/ea
(or)
290pcs & up
$0.99/ea

(or)

1000 pcs
"full box"
$0.74/ea



California Residents WARNING
1/0 - 14 AWG
FLEX 1-8 AWG
0.072" Slotted Screw

5/16"

0.343" mounting bolt hole CU9AL

S1/0-34-41 Single wire lug, 1/0 AWg - 14 AWG, 1/4" bolt mounting hole 1/0 AWG

S1/0-34-41 1/0 AWG two wires

Approved for two wire use

2S1/0 and S1/0 dual interlocking, nesting, stacking lugs three wire application

Dual Interlocking Lugs/ 2-4 Wire Application



Hardware not included.

Lugs sold individually.



For more interlocking lugs

click here.

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.63" (15.9mm)

See Mechanical Drawing for detailed dimensions



Two Wires Per Barrel

Wire Size AWG (mm2)

4

(21.2)

-

(16)

6

(13.3)

-

(10)

8

(8.37)

-

(6)

10

(5.26)

-

(4)

12

(3.31)

-

(2.5)

14

(2.08)

Code Copper Y Y Y Y Y Y Y Y Y Y Y
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S1/0-34-41" 1/0 AWG Single wire lug, 1/0-14 AWG wire range, Multiple (dual) wire class B/C and FLEX, 1-8 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, slotted screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 5/16" bolt mounting hole. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. IHI Connectors® brand. Made in the USA from domestic and imported parts.



UL & Canada Approved for Multiple Wires 2X #14 to 2X #4 and (1X) FLEX wire class G-K sizes #1-#8 AWG
Use of Ferrules (UL Listed) on wires 1-8 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S1/0 Style No. 1,5

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S1/0-34-41 Print



IEC grounding sybol



WIRE CONNECTORS AND SOLDERING LUGS (ZMVV)



INSTALLATION

Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.

"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make complete contact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book ZMVV section



ZMVV UL Whitebook Installation Information

150 Amp 75C Cu Wire
170 Amp 90C Cu Wire
120 Amp 75C Al Wire
135 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65


GUIDE ON FLEX

S1/0-34-41
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 9/10


Return to Top
Part No.

1/0 AWG Single Wire Single Barrel Mechanical Lug 1/0-14 AWG, FLEX 1-8 AWG

Purchase
S1/0-TP

1/0 AWG Lug

FLEX 1-8 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 264pcs $1.48/ea
(or)
265pcs & up $1.10/ea

900 pcs
"full box"
$0.82/ea



California Residents WARNING
1/0 - 14 AWG
FLEX 1-8 AWG
0.072" Slotted Screw

5/16"

0.327" mounting bolt hole CU9AL
S1/0-TP 1/0 AWG Single wire lug TURN PREVENT RIB slotted SCREW 1/0 AWG - 14 AWG

S1/0-TP 2 wires

Approved for two wire use

2S1/0 and S1/0 dual interlocking, nesting, stacking lugs three wire application

Dual Interlocking Lugs/ 2-4 Wire Application

S1/0-34-41

and S1/0-TP



Hardware not included.

Lugs sold individually.



For more interlocking lugs

click here.

dimensions diagram

Dimensions

A: 1.46" (37.3mm)

B: 0.77" (19.0mm)

C: 0.64" (16.3mm)

I: 0.75" (19.1mm)

See Mechanical Drawing for detailed dimensions

Two Wires Per Barrel

Wire Size AWG (mm2)

4

(21.2)

-

(16)

6

(13.3)

-

(10)

8

(8.37)

-

(6)

10

(5.26)

-

(4)

12

(3.31)

-

(2.5)

14

(2.08)

Code Copper Y Y Y Y Y Y Y Y Y Y Y
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S1/0-TP" 1/0 AWG Single wire lug, 1/0-14 AWG wire range, Multipe (dual) wire class B/C and FLEX wire, 1-8 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole with anti-rotation rib(turn prevent) , Slotted Screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Transformer Lug - Replace Low conducting bronze with High Conductivity Dual Rated Aluminum. 5/16" bolt. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. IHI Connectors® brand. Made in the USA from domestic and imported parts.

UL & Canada Approved for Multiple Wires 2X #14 to 2X #4 and (1X) FLEX wire class G-K sizes #1-#8 AWG
Use of Ferrules (UL Listed) on wires 1-8 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S1/0 Style No. 1,5

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S1/0-TP Print



IEC grounding sybol



WIRE CONNECTORS AND SOLDERING LUGS (ZMVV)



INSTALLATION

Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.

"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make complete contact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book ZMVV section



ZMVV UL Whitebook Installation Information

150 Amp 75C Cu Wire
170 Amp 90C Cu Wire
120 Amp 75C Al Wire
135 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65

GUIDE ON FLEX

S1/0-TP
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 9/10

Cross Reference:
PNL-1/0, PNL-1/0-2, PNL-1/0-L  | PUC8-1/0, 53391  |  PNL-1/0 MCI, PNL-1/0-AB  | AB - 1494R-N2 | MCI TRANSFORMER


Return to Top
Part No.

1/0 AWG Single Wire Single Barrel Mechanical Lug 1/0-14 AWG, FLEX 1-8 AWG

Purchase
S1/0-TP-HEX

1/0 AWG Lug

FLEX 1-8 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 259pcs $1.47/ea
(or)
260pcs & up $1.10/ea

800 pcs
"full box"
$0.82/ea



1/0 - 14 AWG
FLEX 1-8 AWG
3/16" Hex Socket Screw

5/16"

0.327" mounting bolt hole CU9AL
S1/0 TURN PREVENT RIB HEX SOCKET SCREW 1/0 AWG Single wire lug 1/0 AWG - 14 AWG

S1/0-TP-HEX 2 wires

Approved for two wire use

2S1/0 and S1/0 dual interlocking, nesting, stacking lugs three wire application

Dual Interlocking Lugs/ 2-4 Wire Application

S1/0-34-41

and S1/0-TP



Hardware not included.

Lugs sold individually.



For more interlocking lugs

click here.

dimensions diagram

Dimensions

A: 1.46" (37.3mm)

B: 0.77" (19.0mm)

C: 0.64" (16.3mm)

I: 0.75" (19.1mm)

See Mechanical Drawing for detailed dimensions

Two Wires Per Barrel

Wire Size AWG (mm2)

4

(21.2)

-

(16)

6

(13.3)

-

(10)

8

(8.37)

-

(6)

10

(5.26)

-

(4)

12

(3.31)

-

(2.5)

14

(2.08)

Code Copper Y Y Y Y Y Y Y Y Y Y Y
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S1/0-TP-HEX" 1/0 AWG Single wire lug, 1/0-14 AWG wire range, Multipe (dual) wire class B/C and FLEX wire, 1-8 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole with anti-rotation rib(turn prevent) , Hex Socket Steel Screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Transformer Lug - Replace Low conducting bronze with High Conductivity Dual Rated Aluminum. 5/16" bolt. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. IHI Connectors® brand. Made in the USA from domestic and imported parts.

UL & Canada Approved for Multiple Wires 2X #14 to 2X #4 and (1X) FLEX wire class G-K sizes #1-#8 AWG
Use of Ferrules (UL Listed) on wires 1-8 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S1/0 Style No. 1,5

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S1/0-TP-HEX Print



IEC grounding sybol



WIRE CONNECTORS AND SOLDERING LUGS (ZMVV)



INSTALLATION

Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.

"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make complete contact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book ZMVV section



ZMVV UL Whitebook Installation Information

150 Amp 75C Cu Wire
170 Amp 90C Cu Wire
120 Amp 75C Al Wire
135 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116

GUIDE ON FLEX

S1/0-TP-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 9/10

Cross Reference:
PNL-1/0, PNL-1/0-2, PNL-1/0-L  | PUC8-1/0, 53391  |  PNL-1/0 MCI, PNL-1/0-AB  | AB - 1494R-N2 | MCI TRANSFORMER


Return to Top
Part No.

1/0 AWG Single Wire Single Barrel Mechanical Lug 1/0-14 AWG, FLEX 1-8 AWG

Purchase
S1/0-TP2-W-HEX

1/0 AWG Lug

FLEX 1-8 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 129pcs $2.99/ea
(or)
130pcs & up $2.22/ea

425 pcs
"full box"
$1.67/ea



1/0 - 14 AWG
FLEX 1-8 AWG
3/16" Hex Socket Screw

M8 x 1.25 bolt

M8 x 1.25 mounting bolt hole CU9AL
S1/0-TP2-W-HEX 1/0 AWG Single wire lug TURN PREVENT RIB HEX SOCKET SCREW 1/0 AWG - 14 AWG

S1/0-TP2-W-HEX 2 wires

Approved for two wire use

dimensions diagram

Dimensions

A: 1.06" (26.9mm)

B: 0.98" (24.9mm)

C: 0.96" (24.4mm)

I: 0.62" (15.8mm)

See Mechanical Drawing for detailed dimensions

Two Wires Per Barrel

Wire Size AWG (mm2)

4

(21.2)

-

(16)

6

(13.3)

-

(10)

8

(8.37)

-

(6)

10

(5.26)

-

(4)

12

(3.31)

-

(2.5)

14

(2.08)

Code Copper Y Y Y Y Y Y Y Y Y Y Y
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S1/0-TP2-W-HEX" 1/0 AWG Single wire lug, 1/0-14 AWG wire range, Multipe (dual) wire class B/C and FLEX wire, 1-8 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one M8 x 1.25 mounting hole (recommended mounting bolt: M8 x 1.25 X 16mm long; assumes bus is 1mm minimum thickness) Anti-rotation /turn prevent rib, Hex socket screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly.IHI Connectors® brand. Made in the USA from domestic and imported parts.

UL & Canada Approved for Multiple Wires 2X #14 to 2X #4 and (1X) FLEX wire class G-K sizes #1-#8 AWG
Use of Ferrules (UL Listed) on wires 1-8 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S1/0 Style No. 2

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S1/0-TP2-W-HEX Print



IEC grounding sybol

150 Amp 75C Cu Wire
170 Amp 90C Cu Wire
120 Amp 75C Al Wire
135 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65


GUIDE ON FLEX

S1/0-TP2-W-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
S2/0

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 299pcs $1.30/ea
(or)
300pcs & up $0.97/ea

1000 pcs
"full box"
$0.73/ea



California Residents WARNING

2/0 - 14 AWG
FLEX 1/0-14 AWG
0.072"Slotted Screw

1/4"

0.281" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL

S2/0 2/0 AWG Single wire lug 2/0AWG - 14AWG

2S2/0 and S2/0 dual stacking, nesting and interlocking lugs three wire application

Dual/Interlocking Lugs

Three Wire Application

2S2/0 and S2/0



Hardware not included.

Lugs sold individually.



For more interlocking lugs

click here.

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.63" (15.9mm)

See Mechanical Drawing for detailed dimensions

"S2/0" 2/0 AWG Single wire lug, 2/0-14 AWG wire range, wire class B/C and FLEX, AWG 1/0-14, wire class G-K class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 1/4" mounting hole, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Shipped with regular slotted screw or TUFF SLOT™ closed slot which guides driver bit for rapid assembly (subject to availability). TUFF SLOT™ is a trademark of IHI Connectors® Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. IHI Connectors® brand. Made in the USA from domestic and imported parts. "Drop-In" Replacement for Homac A-150 and Panduit LAMA2/0-14-Q.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2/0 Print



IEC grounding sybol



WIRE CONNECTORS AND SOLDERING LUGS (ZMVV)



INSTALLATION

Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.

"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make completecontact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book ZMVV section



ZMVV UL Whitebook Installation Information

175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65


UL & Canada Approved for (1X) FLEX wire Class
G-K sizes 1/0-14 AWG
GUIDE ON FLEX

S2/0
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 9/10


Return to Top
Part No.

2/0 AWG Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
S2/0-HEX

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 276pcs $1.30/ea
(or)
277pcs & up $0.97/ea

1000 pcs
"full box"
$0.73/ea



2/0 - 14 AWG
FLEX 1/0-14 AWG
3/16" Hex Socket Screw

1/4"

0.281" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL

S2/0-HEX SOCKET SCREW 2/0 AWG Single wire lug, 2/0AWG - 14AWG

2S2/0 and S2/0 dual stacking, nesting and interlocking lugs three wire application

Dual/Interlocking Lugs

Three Wire Application

2S2/0 and S2/0



For more interlocking lugs

click here.

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.63" (15.9mm)

See Mechanical Drawing for detailed dimensions

"S2/0-HEX" 2/0 AWG Single wire lug, 2/0-14 AWG wire range, wire class B/C and FLEX, AWG 1/0-14, wire class G-K class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, 3/16" A/F Hex Socket Drive screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 1/4" bolt mounting hole. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. IHI Connectors® brand. Made in the USA from domestic and imported parts.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2/0-HEX Print



IEC grounding sybol



WIRE CONNECTORS AND SOLDERING LUGS (ZMVV)



INSTALLATION

Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.

"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make completecontact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book ZMVV section



ZMVV UL Whitebook Installation Information

175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for (1X) FLEX wire Class
G-K sizes 1/0-14 AWG
GUIDE ON FLEX

S2/0-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Metric Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
S2/0-HEX-M

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 276pcs $1.35/ea
(or)
277pcs & up $1.00/ea

1000 pcs
"full box"
$0.75/ea



2/0 - 14 AWG
FLEX 1/0-14 AWG
5mm Hex Socket Screw

1/4"

0.281" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL

S2/0 2/0 AWG single wire lug, metric HEX SOCKET SCREW, 2/0AWG - 14AWG

2S2/0 and S2/0 dual stacking, nesting and interlocking lugs three wire application

Dual/Interlocking Lugs

Three Wire Application

2S2/0 and S2/0



For more interlocking lugs

click here.

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.63" (15.9mm)

See Mechanical Drawing for detailed dimensions

Note!!!   This part has a 5mm hex socket for use in metric countries.



"S2/0-HEX-M" 2/0 AWG metric single wire lug, 2/0-14 AWG wire range, wire class B/C and FLEX, AWG 1/0-14, wire class G-K class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, METRIC 5mm Hex Socket screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 1/4" or 6mm bolt mounting hole. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. IHI Connectors® brand.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2/0-HEX-M Print



IEC grounding sybol



WIRE CONNECTORS AND SOLDERING LUGS (ZMVV)



INSTALLATION

Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.

"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make completecontact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book ZMVV section



ZMVV UL Whitebook Installation Information



175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for (1X) FLEX wire Class
G-K sizes 1/0-14 AWG
GUIDE ON FLEX

S2/0-HEX-M
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
S2/0-34-44

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 274pcs $1.44/ea
(or)
275pcs & up $1.07/ea

1000 pcs
"full box"
$0.80/ea



California Residents WARNING
2/0 - 14 AWG
FLEX 1/0-14 AWG
0.072" Slotted Screw

5/16"

or 8mm

0.34" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL

S2/0-34-44 2/0 AWG Single wire lug, 2/0AWG - 14AWG

S1/0-34-41 and S2/0-34-44 dual interlocking, nesting, stacking lugs two and three wire application

Dual Interlocking Lugs/ 2-3 Wire Application

S1/0-34-41

and S2/0-34-44



Hardware not included.

Lugs sold individually.



For more interlocking lugs

click here.



dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.63" (15.9mm)

See Mechanical Drawing for detailed dimensions

"S2/0-34-44" 2/0 AWG Single wire lug, 2/0-14 AWG wire range, wire class B/C and FLEX, AWG 1/0-14, wire class G-K class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, slotted set screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Shipped with regular slotted screw or TUFF SLOT™ closed slot which guides driver bit for rapid assembly (subject to availability). TUFF SLOT™ is a trademark of IHI Connectors®. 5/16" or 8mm bolt mounting hole. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. IHI Connectors® brand. Made in the USA from domestic and imported parts.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2/0-34-44 Print



IEC grounding sybol



WIRE CONNECTORS AND SOLDERING LUGS (ZMVV)



INSTALLATION

Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.

"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make completecontact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book ZMVV section



ZMVV UL Whitebook Installation Information

175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for (1X) FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG
GUIDE ON FLEX

S2/0-34-44
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 9/10


Return to Top
Part No.

2/0 AWG Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
S2/0-34-44-HEX

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 259pcs $1.54/ea
(or)
260pcs & up $1.15/ea

1000 pcs
"full box"
$0.86/ea



2/0 - 14 AWG
FLEX 1/0-14 AWG
3/16" Hex Socket Screw

5/16"

or 8mm

0.34" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL

S2/0-34-44-HEX SOCKET SCREW 2/0 AWG Single wire lug 2/0AWG - 14AWG

S1/0-34-41 and S2/0-34-44 dual interlocking, nesting, stacking lugs two and three wire application

Dual Interlocking Lugs/ 2-3 Wire Application

S1/0-34-41

and S2/0-34-44



Hardware not included.

Lugs sold individually.



For more interlocking lugs

click here.

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.63" (15.9mm)

See Mechanical Drawing for detailed dimensions

"S2/0-34-44-HEX" 2/0 AWG Single wire lug, 2/0-14 AWG wire range, wire class B/C and FLEX, AWG 1/0-14, wire class G-K class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, 3/16" Hex Socket screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 5/16" or 8mm bolt mounting hole. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. IHI Connectors® brand. Made in the USA from domestic and imported parts.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2/0-34-44-HEX Print



IEC grounding sybol



WIRE CONNECTORS AND SOLDERING LUGS (ZMVV)



INSTALLATION

Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.

"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make completecontact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book ZMVV section



ZMVV UL Whitebook Installation Information



175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG
GUIDE ON FLEX

S2/0-34-44-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Metric Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
S2/0-34-44-HEX-M

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 259pcs $1.54/ea
(or)
260pcs & up $1.15/ea

1000 pcs
"full box"
$0.86/ea



2/0 - 14 AWG
FLEX 1/0-14 AWG
5mm Hex Socket Screw

5/16"

0.34" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL

S2/0-34-44-HEX METRIC SOCKET SCREW, 2/0 AWG Single wire lug 2/0AWG - 14AWG

S1/0-34-41 and S2/0-34-44 dual interlocking, nesting, stacking lugs two and three wire application

Dual Interlocking Lugs/ 2-3 Wire Application

S1/0-34-41

and S2/0-34-44



Hardware not included.

Lugs sold individually.



For more interlocking lugs

click here.



dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.63" (15.9mm)

See Mechanical Drawing for detailed dimensions

Note!!!   This part has a 5mm hex socket for use in metric countries.



"S2/0-34-44-HEX-M" 2/0 AWG metric single wire lug, 2/0-14 AWG wire range, wire class B/C and FLEX, AWG 1/0-14, wire class G-K class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, METRIC 5mm Hex Socket screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 5/16" or 8mm bolt mounting hole. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. IHI Connectors® brand. Made in the USA from domestic and imported parts.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2/0-34-44-HEX-M Print



IEC grounding sybol



WIRE CONNECTORS AND SOLDERING LUGS (ZMVV)



INSTALLATION

Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.

"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make completecontact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book ZMVV section



ZMVV UL Whitebook Installation Information



175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG
GUIDE ON FLEX

S2/0-34-44-HEX-M
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
S2/0-TP-S-34-41-HEX

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating

1 to 79pcs
$5.16/ea
(or)
80pcs & up
$3.84/ea

(or)

1000 pcs
"full box"
$2.88/ea

2/0 - 14 AWG
FLEX 1/0-14 AWG
Slotted Screw

5/16"

0.343" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL

S2/0-TP-S-34-41-HEX Single barrel turn prevent mechanical lug

S1/0-34-41 and S2/0-TP-S-34-41-HEX dual interlocking, nesting, stacking lugs three wire application

Dual Interlocking Lugs/ 2-3 Wire Application

S1/0-34-41

and S2/0-TP-S-34-41-HEX



Hardware not included.

Lugs sold individually.



For more interlocking lugs

click here.



dimensions diagram

Dimensions

A: 1.32" (33.5mm)

B: 0.90" (22.8mm)

C: 0.61" (15.5mm)

I: 0.41" (10.4mm)

See Mechanical Drawing

for detailed dimensions



"S2/0-TP-S-34-41-HEX" 2/0 AWG Single wire lug, 2/0-14 AWG wire range, wire class B/C and FLEX, AWG 1/0-14, wire class G-K class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole with anti-rotation rib(turn prevent), Hex Socket Screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 5/16" bolt (6mm). Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. IHI Connectors® brand. Made in the USA from domestic and imported parts.
UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2/0-TP-S-34-41-HEX Print



IEC grounding sybol


175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG
GUIDE ON FLEX

S2/0-TP-S-34-41-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
S2/0-TP-27-44

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating

1 to 279pcs
$1.48/ea
(or)
280pcs & up
$1.10/ea

(or)

900 pcs
"full box"
$0.82/ea



California Residents WARNING
2/0 - 14 AWG
FLEX 1/0-14 AWG
Slotted Screw

1/4"

0.27" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S2/0(TURN-PREVENT RIB)-27-44 slotted SCREW, 2/0 AWG Single wire lug 2/0AWG - 14 AWG

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.63" (15.9mm)

I: 0.41" (10.4mm)

See Mechanical Drawing for detailed dimensions

"S2/0-TP-27-44" 2/0 AWG Single wire lug, 2/0-14 AWG wire range, wire class B/C and FLEX, AWG 1/0-14, wire class G-K class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole with anti-rotation rib(turn prevent) , Slotted Screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Shipped with regular slotted screw or TUFF SLOT™ closed slot which guides driver bit for rapid assembly (subject to availability). TUFF SLOT™ is a trademark of IHI Connectors®. 1/4" bolt (6mm). IHI Connectors® brand. Made in the USA from domestic and imported parts.
UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG



Compare to OZXA-24 lug fits ABB 100Amp switches
OS100GJ OS100J OS100GGJS OESA-F100 etc.
Click here for full details pdf

abb 100amp switches



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2/0-TP-27-44 Print



IEC grounding sybol


175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG
GUIDE ON FLEX

S2/0-TP-27-44
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 9/10


Return to Top
Part No.

2/0 AWG Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
S2/0-TP-27-44-HEX

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 269pcs $1.48/ea
(or)
245pcs & up $1.10/ea

900 pcs
"full box"
$0.82/ea



2/0 - 14 AWG
FLEX 1/0-14 AWG
3/16" Hex Socket Screw

1/4"

0.27" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S2/0(TURN-PREVENT RIB)-27-44-HEX SOCKET SCREW, 2/0 AWG Single wire lug 2/0AWG - 14 AWG

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.63" (15.9mm)

I: 0.41" (10.4mm)

See Mechanical Drawing for detailed dimensions

"S2/0-TP-27-44-HEX" 2/0 AWG Single wire lug, 2/0-14 AWG wire range, wire class B/C and FLEX, AWG 1/0-14, wire class G-K class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole with anti-rotation rib(turn prevent) , 3/16" Hex Socket Screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 1/4" bolt (6mm). (Metric 5mm hex socket screw also available option). IHI Connectors® brand. Made in the USA from domestic and imported parts.



Compare to OZXA-24 lug fits ABB 100Amp switches
OS100GJ OS100J OS100GGJS OESA-F100 etc.
Click here for full details pdf

abb 100amp switches



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2/0-TP-27-44-HEX Print



IEC grounding sybol

175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG
GUIDE ON FLEX

S2/0-TP-27-44-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Metric Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
S2/0-TP-27-44-HEX-M

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 269pcs $1.52/ea
(or)
270pcs & up $1.13/ea

900 pcs
"full box"
$0.85/ea



2/0 - 14 AWG
FLEX 1/0-14 AWG
5mm Hex Socket Screw

1/4"

0.27" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S2/0(TURN-PREVENT RIB)-27-44-HEX-M Metric Hex SOCKET SCREW, 2/0 AWG Single wire lug 2/0AWG - 14 AWG

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.63" (15.9mm)

I: 0.41" (10.4mm)

See Mechanical Drawing for detailed dimensions

"S2/0-TP-27-44-HEX-M" 2/0 AWG Single wire lug, 2/0-14 AWG wire range, wire class B/C and FLEX, AWG 1/0-14, wire class G-K class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole with anti-rotation rib(turn prevent), 5mm metric hex Socket Screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 1/4" bolt (6mm). IHI Connectors® brand. Made in the USA from domestic and imported parts.



Compare to OZXA-24 lug fits ABB 100Amp switches
OS100GJ OS100J OS100GGJS OESA-F100 etc.
Click here for full details pdf

abb 100amp switches



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2/0-TP-27-44-HEX-M Print



IEC grounding sybol

175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG
GUIDE ON FLEX

S2/0-TP-27-44-HEX-M
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No. 2/0 AWG Metric Single Wire Single Barrel Mechanical Lug 2/0-14 AWG Purchase
S2/0-TP-34-51-HEX

2/0 AWG Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating

1 to 64pcs
$5.27/ea
(or)
65pcs & up
$3.91/ea
(or)

900 pcs
"full box"
$2.94/ea

2/0 - 14 AWG 3/16" Hex Socket Screw

5/16"

0.343" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL

S2/0-TP-34-51-HEX 2/0 AWG Single Wire single barrel Lug

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.63" (15.9mm)

I: 0.51" (13.0mm)

See Mechanical Drawing

for detailed dimensions

"S2/0-TP-34-51-HEX" 2/0 AWG Single wire lug, 2/0-14 AWG wire range, wire class B/C and FLEX, AWG 1/0-14, wire class G-K class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole with anti-rotation rib(turn prevent) , 3/16" Hex Socket Screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 5/16" bolt. International Hydraulics Inc® brand. Made in the USA from domestic and imported parts.
UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2/0-TP-34-51-HEX Print



IEC grounding sybol

175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG
GUIDE ON FLEX

 GUIDE ON FLEX WIRE
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
S2/0-TP-W2-36-49-HEX

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 199pcs $1.95/ea
(or)
200pcs & up $1.45/ea

800 pcs
"full box"
$1.09/ea



2/0 - 14 AWG
FLEX 1/0-14 AWG
3/16" Hex Socket Screw

5/16"

0.36" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S2/0-TP-W2-36-49-HEX 2/0 AWG single wire lug, turn prevent rib, hex socket screw 2/0-14 AWG

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.79" (20.0mm)

I: 0.49" (12.4mm)

See Mechanical Drawing for detailed dimensions

"S2/0-TP-W2-36-49-HEX" Single wire lug 2/0-14 AWG wire range, wire class B/C and FLEX, AWG 1/0-14, wire class G-K class 5, single barrel, aluminum or copper wire, AL9CU, 90C temperature rating, one mounting hole, Hex Socket screw, 5/16" bolt mounting hole. Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. Made in the USA from domestic and imported parts.


UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 #1/0-#14 AWG
Use of Ferrules (UL Listed) on wires 1/0-14 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2/0-TP-W2-36-49-HEX Print



IEC grounding sybol

175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG
GUIDE ON FLEX

S2/0-TP-W2-36-49-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
S2/0-TP-W-44-49-HEX

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 194pcs $2.01/ea
(or)
195pcs & up $1.49/ea

600 pcs
"full box"
$1.12/ea



2/0 - 14 AWG
FLEX 1/0-14 AWG
3/16" Hex Socket Screw

3/8"

0.437" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S2/0(TURN-PREVENT RIB)-W-44-49-HEX 2/0 AWG, Single wire lug 2/0AWG - 14 AWG

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.81" (20.6mm)

C: 0.98" (24.9mm)

I: 0.49" (12.4mm)

See Mechanical Drawing for detailed dimensions

"S2/0-TP-W-44-49-HEX" 2/0 AWG Single wire lug, 2/0-14 AWG wire range, wire class B/C and FLEX, AWG 1/0-14, wire class G-K class 5, single barrel, aluminum or copper wire, AL9CU, 90C temperature rating, one mounting hole, Hex Socket screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 3/8" bolt mounting hole. IHI Connectors® brand. Made in the USA from domestic and imported parts.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2/0-TP-W-44-49-HEX Print



IEC grounding sybol


UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 #1/0-#14 AWG
Use of Ferrules (UL Listed) on wires 1/0-14 AWG

175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG
GUIDE ON FLEX

S2/0-TP-W-44-49-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
S2/0-TPEX-36-49-HEX

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 139pcs $2.04/ea
(or)
140pcs & up $1.52/ea

1000 pcs
"full box"
$1.14/ea



2/0 - 14 AWG
FLEX 1/0-14 AWG
3/16 " Hex Socket Screw

5/16"

0.36" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL

S2/0-TPEX-36-49-HEX 2/0 AWG Single Wire single barrel Lug

dimensions diagram

Dimensions

A: 1.74" (44.2mm)

B: 0.81" (20.6mm)

C: 0.63" 16.0mm)

I: 0.49" (12.4mm)

See Mechanical Drawing

for detailed dimensions



"S2/0-TP-W-44-49-HEX" 2/0 AWG Single wire lug, 2/0-14 AWG wire range, wire class B/C and FLEX, AWG 1/0-14, wire class G-K class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole with anti-rotation rib (turn prevent) , 3/16" Hex Socket Screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 5/16" bolt. International Hydraulics Inc® brand. Made in the USA from domestic and imported parts.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2/0-TPEX-36-49-HEX Print



IEC grounding sybol


175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG
GUIDE ON FLEX

S2/0-TPEX-36-49-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
S2/0-TPEX-44-53-HEX

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 124pcs $2.22/ea
(or)
125pcs & up $1.65/ea

500 pcs
"full box"
$1.24/ea

2/0 - 14 AWG
FLEX 1/0-14 AWG
1/4 " Hex Socket Screw

3/8"

0.437" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL

S2/0-TPEX-44-53-HEX 2/0 AWG Single Wire single barrel Lug

dimensions diagram

Dimensions

A: 1.74" (44.2mm)

B: 0.81" (20.6mm)

C: 0.98" (24.9mm)

I: 0.53" (13.5mm)

See Mechanical Drawing

for detailed dimensions



"S2/0-TPEX-44-53-HEX" 2/0 AWG Single wire lug, 2/0-14 AWG wire range, wire class B/C and FLEX, AWG 1/0-14, wire class G-K class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole with anti-rotation rib (turn prevent) , 1/4" Hex Socket Screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 3/8" bolt. International Hydraulics Inc® brand. Made in the USA from domestic and imported parts.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S2/0-TPEX-44-53-HEX Print



IEC grounding sybol

175 Amp 75C Cu Wire
195 Amp 90C Cu Wire
135 Amp 75C Al Wire
150 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG
GUIDE ON FLEX

S2/0-TPEX-44-53-HEX
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Single Wire Single Barrel Mechanical Lug 2/0-14 AWG

Purchase
4444

2/0 AWG Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 214pcs $1.64/ea
(or)
215pcs & up $1.22/ea

1000 pcs
"full box"
$0.91/ea



2/0 - 14CU AWG

2/0 - 12AL AWG

3/16" Hex Socket Screw

3/16" bolt



1/4-20 bolt



0.195" clearance drilled hole

AND

1/4-20 threaded hole

CU7AL
4444, 2/0 AWG Single Wire Lug 2/0AWG - 14AWG

dimensions diagram

Dimensions

A: 1.62" (41.1mm)

B: 0.75" (19.1mm)

C: 0.61" (15.5mm)

L: 0.5" (12.7mm)

See Mechanical Drawing for detailed dimensions

"4444" 2/0 AWG Single wire lug, 2/0-14 AWG wire range , OEM style with two mounting holes, one threaded, one clearance drilled. Dual rated, single barrel, aluminum or copper wire, CU7AL, 75C temperature rating. UL Recognized at 600v - acceptable for use through 2000v. (Not Listed for General Use and not Canada Certified.) IHI Connectors® brand. Made in the USA from domestic and imported parts.


"4444" La gama del alambre de AWG 2/0-14, Tipo "OEM" con dos hoyos que montan. Doble valorado, cable de aluminio o cobre, la calificación de la temperatura CU7AL, 75C. UL Reconoció. (No Listó para el Uso General. Certificó). Marca IHI. Hecho en EE.UU. de partes nacionales e importadas.

175 Amp 75C Cu Wire


135 Amp 75C Al Wire



E129884 UL486A,B,
ZMVV2,



OEM "UR" STYLE WITH TWO MOUNTING HOLES, ONE THR/eaDED, ONE DRILLED, MAY BE USED FOR ANTI- ROTATION OR MOUNTING OTHER HARDWARE

4444
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
T2/0 (1.03")

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 229pcs $1.87/ea
(or)
230pcs & up $1.39/ea

750 pcs
"full box"
$1.04/ea



2/0 - 14 AWG
FLEX 1/0-14 AWG
3/16" Hex Socket Screw

#10

Two 0.218" mounting bolt holes CU9AL

T2/0 2/0 AWG Single wire lug, 2/0AWG - 14AWG

dimensions diagram

Dimensions

A: 1.69" (42.9mm)

B: 0.91" (23.0mm)

C: 0.63" (15.9mm)

L: 1.03" (26.2mm)

See Mechanical Drawing for detailed dimensions

"T2/0" (1.03") 2/0 AWG Single wire lug, 2/0-14 AWG wire range, and FLEX wire, 1/0-14 AWG, class G-K including mm2 class 5, "Top Hat" style with two short mounting tangs. Dual rated, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, two (2) #10 mounting holes, 1.03" (26.2mm) spacing. Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, UL Listed for General Use. Canada Certified. IHI Connectors® brand. Cross REF. 5833. Made in the USA from domestic and imported parts.

UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 #1/0-#14 AWG
Use of Ferrules (UL Listed) on wires 1/0-14 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the T2/0 Print



IEC grounding sybol



175 AMP 75 CU WIRE
195 AMP 90C CU WIRE
135 AMP 75C AL WIRE
150 AMP 90C AL WIRE



Cat. No. S2/0 E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG



TURN PREVENT STYLE WITH TWO DRILLED MOUNTING HOLES FOR ANTI-ROTATIONAL MOUNTING

T2/0 (1.03")
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
T2/0-125

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 149pcs $1.87/ea
(or)
150pcs & up $1.39/ea

750 pcs
"full box"
$1.04/ea



2/0 - 14 AWG
FLEX 1/0-14 AWG
3/16" Hex Socket Screw

#10

Two 0.218" mounting bolt holes CU9AL

T2/0-125, 2/0 AWG Single wire lug 2/0AWG - 14AWG

dimensions diagram

Dimensions

A: 1.69" (42.9mm)

B: 0.91" (23.0mm)

C: 0.63" (15.9mm)

L: 1.25" (31.8mm)

See Mechanical Drawing for detailed dimensions

"T2/0-125" 2/0 AWG Single wire lug, 2/0-14 AWG wire range, and FLEX wire, 1/0-14 AWG, class G-K including mm2 class 5, "Top Hat" style with two short mounting tangs. Dual rated, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, two (2) #10 mounting holes, 1.25" (31.8mm) spacing. Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, UL Listed for General Use. Canada Certified. IHI Connectors® brand.  Cross REF. 4933. Made in the USA from domestic and imported parts.

UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 #1/0-#14 AWG
Use of Ferrules (UL Listed) on wires 1/0-14 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the T2/0-125 Print



IEC grounding sybol


175 AMP 75 CU WIRE
195 AMP 90C CU WIRE
135 AMP 75C AL WIRE
150 AMP 90C AL WIRE



Cat. No. S2/0
E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG



TURN PREVENT STYLE WITH TWO DRILLED MOUNTING HOLES FOR ANTI-ROTATIONAL MOUNTING

T2/0-125
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Single Wire Single Barrel Mechanical Lug 2/0-14 AWG, FLEX 1/0-14 AWG

Purchase
T2/0A-125

2/0 AWG Lug

FLEX 1/0-14 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 139pcs $3.56/ea
(or)
140pcs & up $2.64/ea

750 pcs
"full box"
$1.98/ea

2/0 - 14 AWG
FLEX 1/0-14 AWG
3/16" Hex Socket Screw

#10

Two 0.218" mounting bolt holes CU9AL

T2/0A-125, 2/0 AWG single wire lug 2/0AWG - 14AWG

dimensions diagram

Dimensions

A: 1.69" (42.9mm)

B: 0.91" (23.0mm)

C: 0.63" (15.9mm)

L: 1.25" (31.8mm)

See Mechanical Drawing for detailed dimensions

"T2/0A-125" 2/0 AWG Single wire lug, 2/0-14 AWG wire range, and FLEX wire, 1/0-14 AWG, class G-K including mm2 class 5, "Top Hat" style with side wire entrance, and two short mounting tangs. Dual rated, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, two (2) #10 mounting holes, 1.25" (31.8mm) spacing. Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, UL Listed for General Use. Canada Certified. IHI Connectors® brand.  Cross REF. 4854. Made in the USA from domestic and imported parts.

UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 #1/0-#14 AWG
Use of Ferrules (UL Listed) on wires 1/0-14 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S2/0 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the T2/0A-125 Print



IEC grounding sybol



175 AMP 75 CU WIRE
195 AMP 90C CU WIRE
135 AMP 75C AL WIRE
150 AMP 90C AL WIRE



Cat. No. S2/0
E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116



UL & Canada Approved for FLEX wire class G-K sizes & mm2 class 5 1/0-14 AWG



TURN PREVENT STYLE WITH TWO DRILLED MOUNTING HOLES FOR ANTI-ROTATIONAL MOUNTING

T2/0A-125
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

2/0 AWG Single Wire Single Barrel Mechanical Lug 2/0-14 AWG

Purchase
2/0TP

2/0 AWG Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 269pcs
$1.43/ea
(or)
270pcs & up
$1.07/ea

1000pcs
"full box"
$0.80/ea

2/0 - 14 AWG Hex Socket Screw

1/4"

0.265" mounting bolt hole CU9AL

2/0TURN PREVENT RIB, 2/0 AWG single wire lug 2/0 AWG Single wire lug 2/0AWG - 14 AWG

dimensions diagram

Dimensions

A: 1.47" (37.3mm)

B: 0.78" (19.8mm)

C: 0.63" (15.9mm)

I: 0.41" (10.4mm)

See Mechanical Drawing for detailed dimensions

"2/0TP" 2/0 AWG Single wire lug, 2/0-14 AWG wire range, single barrel, aluminum or copper wire, CU9AL, 90C temperaturerating, one mounting hole with anti-rotation rib(turn prevent) , Hex Socket Screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 1/4" bolt. Brumall brand. Made in the USA from domestic and imported parts.



IEC grounding sybol

175 AMP 75 CU WIRE
195 AMP 90C CU WIRE
135 AMP 75C AL WIRE
150 AMP 90C AL WIRE



E61509 UL486A,B,
ZMVV,
Canada22.2 No.65



TURN PREVENT STYLE

2/0TP
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo

RoHS 10/10


Return to Top
Part No.

3/0 AWG Single Wire Single Barrel Mechanical Lug 3/0-14 AWG

Purchase
3/0T

3/0 AWG Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 159pcs
$2.12/ea
(or)
160pcs & up
$1.57/ea

550pcs
"full box"
$1.18/ea

3/0 - 6 AWG Hex Socket Screw

1/4"

0.265" mounting bolt hole CU9AL
3/0T, Single wire lug 3/0AWG - 6AWG

dimensions diagram

Dimensions

A: 1.88" (47.8mm)

B: 0.89" (22.6mm)

C: 0.70" (17.8mm)

See Mechanical Drawing for detailed dimensions

"3/0T" 3/0 AWG Single wire lug, 3/0-6 AWG wire range, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 1/4" bolt mounting hole, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Brumall brand. Made in the USA from domestic and imported parts.



IEC grounding sybol



200 Amp 75C Cu Wire
225 Amp 90C Cu Wire
155 Amp 75C Al Wire
175 Amp 90C Al Wire



E61509 UL486A,B,

ZMVV,
Canada22.2 No.65



3/0T
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo

RoHS 10/10


Return to Top

4/0 AWG Single Wire Single Barrel Mechanical Lugs







4/0 AWG wires use 250 kcmil size connectors (4/0 AWG = 212 kcmil)



Lugs that accept 4/0 AWG wire include:



S250, S250-41-44, S250-41-44-M, S250-20.2-20-M, and the 250L2.






Return to Top
Part No.

250 kcmil (4/0 AWG) Single Wire Single Barrel Mechanical Lug 250 kcmil- 6 AWG, FLEX 3/0-6 AWG

Purchase
S250

250 kcmil Lug

(4/0 AWG Lug)

FLEX 3/0-6 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 129pcs
$2.81/ea
(or)
130pcs & up
$2.09/ea

375pcs
"full box"
$1.57/ea

250 kcmil (4/0 AWG)- 6 AWG
FLEX 3/0-6 AWG
3/8" Hex Socket Screw

5/16"

or 8mm

0.343" mounting bolt hole CU9AL

S250, 250 kcmil (4/0 AWG) Single wire lug  250kcmil - 6AWG

S250-2-wires-per-barrel-application

Approved for two wire use



dimensions diagram

Dimensions

A: 2.00" (50.8mm)

B: 1.06" (27.0mm)

C: 0.91" (23.0mm)

See Mechanical Drawing for detailed dimensions

Two Wires Per Barrel

Wire Size AWG (mm2)

2

(33.6)

3

(26.7)

-

(25)

4

(21.2)

-

(16)

6

(13.3)

-

(10)

Code Copper Y Y Y Y Y Y -
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S250" 250 kcmil (4/0 AWG) Single wire lug, 250 kcmil (4/0 AWG)-6 AWG wire range, Multiple (dual) wire class B/C and FLEX wire, AWG 3/0-6, class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 5/16" mounting bolt hole. IHI Connectors® brand. "Drop-In" Replacement for Homac A-250 and Panduit LAMA250-56-Q. Made in the USA from domestic and imported parts.



UL & Canada Approved for Multiple wires class B, C, 2X AWG 2-6 &2X 25-16 mm2 & (1X) FLEX wire Classes G-K sizes #3/0-#6 AWG.


Use of Ferrules (UL Listed) on wires 3/0-6



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S250 Style No. 2

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S250 Print



IEC grounding sybol

255 Amp 75C Cu Wire
290 Amp 90C Cu Wire
205 Amp 75C Al Wire
230 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65

GUIDE ON FLEX

S250
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

250 kcmil (4/0 AWG) Single Wire Single Barrel Mechanical Lug 250 kciml - 6 AWG, FLEX 3/0-6 AWG

Purchase
S250-41-44

250 kcmil Lug

(4/0 AWG Lug)

FLEX 3/0-6 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 129pcs
$3.79/ea
(or)
130pcs & up
$2.82/ea

375pcs
"full box"
$2.11/ea

250 kcmil (4/0 AWG)- 6 AWG
FLEX 3/0-6 AWG
3/8" Hex Socket Screw

3/8"

or 10mm

0.41" mounting bolt hole CU9AL

S250-41-44, 250 kcmil (4/0 AWG) Single wire lug, 250kcmil - 6AWG

S250-41-44-2-wires-per-barrel-application

Approved for two wire use

dimensions diagram

Dimensions

A: 2.00" (50.8mm)

B: 1.06" (27.0mm)

C: 0.91" (23.0mm)

See Mechanical Drawing for detailed dimensions

Two Wires Per Barrel

Wire Size AWG (mm2)

2

(33.6)

3

(26.7)

-

(25)

4

(21.2)

-

(16)

6

(13.3)

-

(10)

Code Copper Y Y Y Y Y Y -
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S250-41-44" 250 kcmil (4/0 AWG) Single wire lug, 250 kcmil (4/0 AWG)-6 AWG wire range, Multiple (dual) wire class B/C and FLEX wire, AWG 3/0-6, class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 3/8" mounting bolt hole. IHI Connectors® brand. Made in the USA from domestic and imported parts.



UL & Canada Approved for Multiple wires class B, C, 2X AWG 2-6 &2X 25-16 mm2 & (1X) FLEX wire Classes G-K sizes #3/0-#6 AWG.


Use of Ferrules (UL Listed) on wires 3/0-6



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S250 Style No. 2

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S250-41-44 Print



IEC grounding sybol

255 Amp 75C Cu Wire
290 Amp 90C Cu Wire
205 Amp 75C Al Wire
230 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65

GUIDE ON FLEX
S250-41-44
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

250 kcmil (4/0 AWG) Metric Single Wire Single Barrel Mechanical Lug 250 kcmil - 6 AWG, FLEX 3/0-6 AWG

Purchase
S250-41-44-M

250 kcmil Lug

(4/0 AWG Lug)

FLEX 3/0-6 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 129pcs
$4.12/ea
(or)
130pcs & up
$3.06/ea

375pcs
"full box"
$2.30/ea

250 kcmil (4/0 AWG)- 6 AWG
FLEX 3/0-6 AWG
5/16" (8mm) Hex Socket Screw

3/8"

or 10mm

0.41" mounting bolt hole CU9AL

S250-41-44 METRIC HEX, 250 kcmil (4/0 AWG) Single wire lug 250kcmil - 6AWG

S250-41-44-M-2-wires-per-barrel-application

Approved for two wire use



dimensions diagram

Dimensions

A: 2.00" (50.8mm)

B: 1.06" (27.0mm)

C: 0.91" 23.0mm)

See Mechanical Drawing for detailed dimensions

Two Wires Per Barrel

Wire Size AWG (mm2)

2

(33.6)

3

(26.7)

-

(25)

4

(21.2)

-

(16)

6

(13.3)

-

(10)

Code Copper Y Y Y Y Y Y -
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S250-41-44-M" 250 kcmil (4/0 AWG) metric single wire lug, 250 kcmil (4/0 AWG)-6 AWG wire range, Multiple (dual) wire class B/C and FLEX wire, AWG 3/0-6, class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, 8mm metric hex screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 3/8" mounting bolt hole. IHI Connectors® brand. Made in the USA from domestic and imported parts.



UL & Canada Approved for Multiple wires class B, C, 2X AWG 2-6 &2X 25-16 mm2 & (1X) FLEX wire Classes G-K sizes #3/0-#6 AWG.
Use of Ferrules (UL Listed) on wires 3/0-6



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S250 Style No. 2

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S250-41-44-M Print



IEC grounding sybol

255 Amp 75C Cu Wire
290 Amp 90C Cu Wire
205 Amp 75C Al Wire
230 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65

GUIDE ON FLEX

S250-41-44-M
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

250 kcmil (4/0 AWG) Single Wire Single Barrel Mechanical Lug 250 kcmil - 6 AWG, FLEX 3/0-6 AWG

Purchase
S250-10.2-20M

250 kcmil Lug

(4/0 AWG Lug)

FLEX 3/0-6 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 94pcs
$8.34/ea
(or)
95pcs & up
$6.20/ea

375pcs
"full box"
$4.65/ea

250 kcmil (4/0 AWG)- 6 AWG
FLEX 3/0-6 AWG
5/16" (8mm) Hex Socket Screw

3/8"

or 10mm

0.404" mounting bolt hole CU7AL

S250-10.2-20M, 250 kcmil (4/0 AWG) Single wire lug, 250kcmil - 6AWG

S250-10.2-20-M 2 wire application

Approved for two wire use

dimensions diagram

Dimensions

A: 2.00" (50.8mm)

B: 1.06" (27.0mm)

C: 0.79" (20.1mm)

See Mechanical Drawing for detailed dimensions

Two Wires Per Barrel

Wire Size AWG (mm2)

2

(33.6)

3

(26.7)

-

(25)

4

(21.2)

-

(16)

6

(13.3)

-

(10)

Code Copper Y Y Y Y Y Y -
FLEX (class G-K) Single Wires Only.
No mixing wire gauges.



"S250-10.2-20M" 250 kcmil (4/0 AWG) Single wire lug, 250 kcmil (4/0 AWG)-6 AWG wire range, 3/8" (M10) bigger bolt mounting, NARROWER WIDTH Multiple (dual) wire class B/C and FLEX wire, 3/0-6 AWG, class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU7AL, 75C temperature rating, one mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Larger 3/8" mounting bolt hole (Hole 0.40 inch dia.) IHI Connectors® brand. Made in the USA from domestic and imported parts.



UL & Canada Approved for Multiple wires class B, C, 2X AWG 2-6 &2X 25-16 mm2 & (1X) FLEX wire Classes G-K sizes #3/0-#6 AWG.
Use of Ferrules (UL Listed) on wires 3/0-6



IEC grounding sybol

255 Amp 75C Cu Wire
205 Amp 75C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65

GUIDE ON FLEX

S250-10.2-20M
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

250 kcmil (4/0 AWG) Single Wire Single Barrel Mechanical Lug 250 kcmil - 6 AWG

Purchase
250L2

250 kcmil Lug

(4/0 AWG Lug)

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 66pcs
$4.81/ea
(or)
67pcs & up
$3.57/ea

224pcs
"full box"
$2.68/ea

250 kcmil (4/0 AWG)- 6 AWG Hex Socket Screw

3/8"

0.406" mounting bolt hole CU9AL
250L2, 250 kcmil (4/0 AWG) Single wire panelboard lug 250kcmil - 6AWG

dimensions diagram

Dimensions

A: 4.00" (101.6mm)

B: 1.19" (30.2mm)

C: 0.86" (21.8mm)

L: 1.75" (44.5mm)

See Mechanical Drawing for detailed dimensions

"250L2" 250 kcmil (4/0 AWG) Single wire panelboard lug, 250 kcmil (4/0 AWG)-6 AWG wire range, panel lug, one barrel, aluminum or copper wire, CU9AL, 90C temperature rating, two 3/8" bolt X 1-3/4 spacing mounting holes, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Brumall brand. Made in the USA from domestic and imported parts.



IEC grounding sybol



Comparison between Panelboard and Switchgear



"250L2" 250 kcmil - 6 AWG gama de alambre, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, dos 3/8" tornillos que monta hoyos X 1-3/4", UL Listó, Canada Certificó. Marca Brumall. Hecho en EE.UU. de partes nacionales e importadas

255 Amp 75C Cu Wire
290 Amp 90C Cu Wire
205 Amp 75C Al Wire
230 Amp 90C Al Wire



E61509 UL486A,B,
ZMVV, Canada22.2 No.65

250L2
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo

RoHS 10/10


Return to Top
Part No.

300 kcmil Single Wire Single Barrel Mechanical Lug 300 kcmil - 6 AWG, FLEX 4/0-6 AWG

Purchase
S300

300 kcmil Lug

FLEX 4/0-6 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 129pcs
$3.06/ea
(or)
130pcs & up
$2.28/ea

375pcs
"full box"
$1.71/ea

300 kcmil - 6 AWG
FLEX 4/0-6 AWG
3/8" Hex Socket Screw

5/16"

or 8mm

0.343" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S300, 300 kcmil Single wire lug 300kcmil - 6AWG

dimensions diagram

Dimensions

A: 2.00" (50.8mm)

B: 1.06" (27.0mm)

C: 0.91" (23.0mm)

See Mechanical Drawing for detailed dimensions

"S300" 300 kcmil Single wire lug, 300 kcmil-6 AWG wire range, wire class B/C and FLEX, AWG 4/0-6, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 5/16" mounting bolt hole. IHI Connectors® brand. "Drop-In" Replacement for Homac A-300 and Panduit LAMA300-56-Q. Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire classes G-K sizes #4/0-#6 AWG.
Use of Ferrules (UL Listed) on wires 4/0-6 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S300 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S300 Print



IEC grounding sybol



"S300" 300 kcmil-6 gama de alambre de AWG, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo montar hoyo de 5/16", UL Listó, Canada Certificó. Marca IHI. Hecho en EE.UU. de partes nacionales e importadas.

285 Amp 75C Cu Wire
320 Amp 90C Cu Wire
230 Amp 75C Al Wire
255 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX
S300
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

300 kcmil Single Wire Single Barrel Mechanical Lug 300 kcmil - 6 AWG, FLEX 4/0-6 AWG

Purchase
S300-TP-34-51

300 kcmil Lug

FLEX 4/0-6 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating

1 to 79pcs
$4.82/ea
(or)
80pcs & up
$3.58/ea
(or)

325pcs
"full box"
$2.69/ea

300 kcmil - 6 AWG
FLEX 4/0-6 AWG
3/8" Hex Socket Screw

5/16"

or 8mm

0.343" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL

300 kcmil-6 AWG single wire single barrel turn prevent electrical lug

dimensions diagram

Dimensions

A: 1.91" (48.5mm)

B: 1.13" (28.6mm)

C: 0.91" (23.1mm)

I: 0.51" (13.0mm)

See Mechanical Drawing

for detailed dimensions

"S300-TP-34-51" 300 kcmil Single wire lug, 300 kcmil-6 AWG wire range, wire class B/C and FLEX, AWG 4/0-6, wire class G-K including mm2 class 5, single barrel, anti rotation/ turn prevent rib, hex socket screw, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole of .343 inch dia 5/16" bolt, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 5/16" mounting bolt hole. IHI Connectors® brand. "Drop-In" Replacement for Homac A-300 and Panduit LAMA300-56-Q. Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire classes G-K sizes #4/0-#6 AWG.
Use of Ferrules (UL Listed) on wires 4/0-6 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S300 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S300-TP-34-51 Print



IEC grounding sybol

285 Amp 75C Cu Wire
320 Amp 90C Cu Wire
230 Amp 75C Al Wire
255 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX
S300-TP-34-51
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

300 kcmil Single Wire Single Barrel Mechanical Lug 300 kcmil- 6 AWG, FLEX 4/0-6 AWG

Purchase
S300-41-44

300 kcmil Lug

FLEX 4/0-6 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating

1 to 129pcs
$3.36/ea
(or)
130pcs & up
$2.50/ea

375pcs
"full box"
$1.87/ea

300 kcmil - 6 AWG
FLEX 4/0-6 AWG
3/8" Hex Socket Screw

3/8"

or 10mm

0.416" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S300-41-44, 300 kcmil Single wire lug 300kcmil - 6AWG

dimensions diagram

Dimensions

A: 2.00" (50.8mm)

B: 1.06" (27.0mm)

C: 0.91" (23.0mm)

See Mechanical Drawing for detailed dimensions

"S300-41-44" 300 kcmil Single wire lug, 300 kcmil-6 AWG wire range, wire class B/C and FLEX, AWG 4/0-6, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 3/8" mounting bolt hole. IHI Connectors® brand. Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire classes G-K sizes #4/0-#6 AWG.
Use of Ferrules (UL Listed) on wires 4/0-6 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S300 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S300-41-44 Print



IEC grounding sybol

285 Amp 75C Cu Wire
320 Amp 90C Cu Wire
230 Amp 75C Al Wire
255 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX

S300-41-44
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

300 kcmil Single Wire Single Barrel Mechanical Lug 300 kcmil- 6 AWG, FLEX 4/0-6 AWG

Purchase
S300-41-44-M

300 kcmil Lug

FLEX 4/0-6 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 129pcs
$4.12/ea
(or)
130pcs & up
$3.06/ea

375pcs
"full box"
$2.30/ea

300 kcmil - 6 AWG
FLEX 4/0-6 AWG
5/16" (8mm) Hex Socket Screw

3/8"

or 10mm

0.41" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S300-41-44-Metric, 300 kcmil Single wire lug300kcmil - 6AWG

dimensions diagram

Dimensions

A: 2.00" (50.8mm)

B: 1.06" (27.0mm)

C: 0.91" (23.0mm)

See Mechanical Drawing for detailed dimensions

"S300-41-44-M" 300 kcmil Single wire lug, 300 kcmil-6 AWG wire range, wire class B/C and FLEX, AWG 4/0-6, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 3/8" mounting bolt hole. IHI Connectors® brand. Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire classes G-K sizes #4/0-#6 AWG.
Use of Ferrules (UL Listed) on wires 4/0-6 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S300 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S300-41-44-M Print



IEC grounding sybol

285 Amp 75C Cu Wire
320 Amp 90C Cu Wire
230 Amp 75C Al Wire
255 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX

S300-41-44-M
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

300 kcmil Single Wire Single Barrel Mechanical Lug 300 kcmil- 6 AWG, FLEX 4/0-6 AWG

Purchase
S300-12.8-24.5M

300 kcmil Lug

FLEX 4/0-6 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 89pcs
$3.65/ea
(or)
90pcs & up
$2.71/ea

385pcs
"full box"
$2.04/ea

300 kcmil - 6 AWG
FLEX 4/0-6 AWG
5/16" (8mm) Hex Socket Screw

1/2"

or 12mm

0.506" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S300-12.8-24.5M, 300 kcmil Single wire lug 300kcmil - 6AWG

dimensions diagram

Dimensions

A: 2.00" (50.8mm)

B: 1.06" (27.0mm)

C: 0.96" (24.5mm)

See Mechanical Drawing for detailed dimensions

"S300-12.8-24.5M" 300 kcmil Single wire lug, Wider Body - Larger Mounting Bolt. 300 kcmil-6 AWG wire range, wire class B/C and FLEX, AWG 4/0-6, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole , Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 12mm or 1/2" mounting bolt hole. IHI Connectors® brand. Universal Hex key drive 8mm or 5/16". Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire classes G-K sizes #4/0-#6 AWG.
Use of Ferrules (UL Listed) on wires 4/0-6 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S300 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S300-12.8-24.5M Print



IEC grounding sybol

285 Amp 75C Cu Wire
320 Amp 90C Cu Wire
230 Amp 75C Al Wire
255 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX

S300-12.8-24.5M
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

300 kcmil Single Wire Single Barrel Mechanical Lug 300 kcmil- 6 AWG, FLEX 4/0-6 AWG

Purchase
S300-26-44-M

300 kcmil Lug

FLEX 4/0-6 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 129pcs
$8.89/ea
(or)
130pcs & up
$6.61/ea

375pcs
"full box"
$4.96/ea

300 kcmil - 6 AWG
FLEX 4/0-6 AWG
5/16" (8mm) Hex Socket Screw

1/4"

or M6

0.26" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S300-26-44-M, single wire lug, 300 kcmil-6 AWG single wire single barrel electrical lug

dimensions diagram

Dimensions

A: 2.00" (50.8mm)

B: 1.06" (27.0mm)

C: 0.91" (23.0mm)

See Mechanical Drawing for detailed dimensions

"S300-26-44-M" Single wire lug 300 kcmil-6 AWG wire range, wire class B/C and FLEX, AWG 4/0-6, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, 1/4" mounting bolt hole. Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire classes G-K sizes #4/0-#6 AWG.
Use of Ferrules (UL Listed) on wires 4/0-6 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S300 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S300-26-44-M Print



IEC grounding sybol



"S300-26-44-M" 6-300 kcmil rango de cable AWG, y FLEX clase alambre GK incluyendo clase mm2 5, 1 barril, aluminio o cobre alambre, CU9AL, 90 C rango de temperatura, un agujero de montaje, 1/4 "orificio de montaje de perno. Listado UL, certificado por Canada marca. IHI.

285 Amp 75C Cu Wire
320 Amp 90C Cu Wire
230 Amp 75C Al Wire
255 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX

S300-26-44-M
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

300 kcmil Single Wire Single Barrel Mechanical Lug 300 kcmil- 6 AWG, FLEX 4/0-6 AWG

Purchase
S300-T-26-26-M

300 kcmil Lug

FLEX 4/0-6 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 129pcs
$4.83/ea
(or)
130pcs & up
$3.59/ea

375pcs
"full box"
$2.69/ea

300 kcmil - 6 AWG
FLEX 4/0-6 AWG
5/16" (8mm) Hex Socket Screw

1/4"

or M6

0.26" mounting bolt hole

OR

Drill Your Own™ Mounting Holes

(per UL & Canada)

CU9AL
S300-T-26-26-M, 300 kcmil Single wire lug 6 AWG - 300kcmil

dimensions diagram

Dimensions

A: 2.00" (50.8mm)

B: 1.06" (27.0mm)

C: 0.75" (19.1mm)

See Mechanical Drawing for detailed dimensions

"S300-T-26-26-M" Single wire lug, 300 kcmil-6 AWG wire range, wire class B/C and FLEX, AWG 4/0-6, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole. Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. "T" shaped body, 1/4" mounting bolt hole. IHI Connectors® brand. Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire classes G-K sizes #4/0-#6 AWG.
Use of Ferrules (UL Listed) on wires 4/0-6 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S300 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S300-T-26-26-M Print



IEC grounding sybol



"S300-T-26-26-M" 6-300 kcmil rango de cable AWG, y FLEX clase alambre GK incluyendo clase mm2 5, 1 barril, aluminio o cobre alambre, CU9AL, 90 C rango de temperatura, un agujero de montaje, homologado UL , certificado por Canada. Cuarto agujero "perno de montaje. Marca IHI.

285 Amp 75C Cu Wire
320 Amp 90C Cu Wire
230 Amp 75C Al Wire
255 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX

S300-T-26-26-M
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

300 kcmil Single Wire Single Barrel Mechanical Lug 300 kcmil- 6 AWG

Purchase
300TP

300 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 84pcs
$4.66/ea
(or)
85pcs & up
$3.46/ea

300pcs
"full box"
$2.60/ea

300 kcmil - 6 AWG Hex Socket Screw

3/8"

0.437" mounting bolt hole CU9AL
300 TURN PREVENT RIB 300 kcmil Single wire lug 300kcmil - 6AWG

dimensions diagram

Dimensions

A: 2.00" (50.8mm)

B: 1.13" (28.7mm)

C: 0.98" (24.9mm)

I: 0.49" (12.4mm)

See Mechanical Drawing for detailed dimensions

"300TP" 300 kcmil single wire lug, 300 kcmil-6 AWG TURN PREVENT wire range, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole , Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 3/8" mounting bolt hole. Brumall brand. Made in the USA from domestic and imported parts.



IEC grounding sybol

285 Amp 75C Cu Wire
320 Amp 90C Cu Wire
230 Amp 75C Al Wire
255 Amp 90C Al Wire



E61509 UL486A,B,
ZMVV,
Canada22.2 No.65

300TP
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo

RoHS 10/10


Return to Top
Part No.

350 kcmil Single Wire Single Barrel Mechanical Lug 350 kcmil- 6 AWG, FLEX 262 kcmil - 4 AWG

Purchase
S350

350 kcmil Lug

FLEX 262 kcmil - 4 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 89pcs
$3.74/ea
(or)
90pcs & up
$2.78/ea

300pcs
"full box"
$2.08/ea

350 kcmil - 6 AWG
FLEX 262 kcmil - 4 AWG
3/8" Hex Socket Screw

5/16"

0.343" mounting bolt hole CU9AL

S350, 350 kcmil Single wire lug 350kcmil-6AWG

Two S350 stacking, nesting and interlocking lugs two wire application, 350kcmil-6 AWG

Dual interlocking lugs.

Two wire application.



Hardware not included.

Lugs sold individually.



For more interlocking lugs

click here.

dimensions diagram

Dimensions

A: 2.00" (50.8mm)

B: 1.13" (28.6mm)

C: 1.00" (25.4mm)

See Mechanical Drawing for detailed dimensions

"S350" 350 kcmil single wire lug, 350 kcmil-6 AWG wire range, wire class B/C and FLEX, 262 kcmil – 4 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole of .343 inch dia 5/16" bolt, NEMA mounting holes and spacing; this is not a NEMA tested part, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. "Drop-In" Replacement for Homac A-350 and Panduit LAMA350-38-Q. Made in the USA from domestic and imported parts.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S350 Style No. 1

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S350 Print



IEC grounding sybol



WIRE CONNECTORS AND SOLDERING LUGS (ZMVV)



INSTALLATION

Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.

"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make completecontact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book ZMVV section



ZMVV UL Whitebook Installation Information



UL & Canada Approved for FLEX wire class G-K sizes #262 kcmil-#4 AWG
Use of Ferrules (UL Listed) on wires 262 kcmil-4 AWG



"S350" 350 kcmil-6 gama de alambre de AWG, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo montar hoyo de 0,343 dia de pulgada 5/16" tornillo, UL Listó, Canada Certificó. Marca IHI. Hecho en EE.UU. de partes nacionales e importadas.

310 Amp 75C Cu Wire
350 Amp 90C Cu Wire
250 Amp 75C Al Wire
280 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX

S350
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

350 kcmil Single Wire Single Barrel Mechanical Lug 350 kcmil- 6 AWG, FLEX 262 kcmil -4 AWG

Purchase
S350-TP-34-51

350 kcmil Lug

FLEX 262 kcmil - 4 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating

1 to 79pcs
$4.21/ea
(or)
80pcs & up
$3.13/ea

(or)

325pcs
"full box"
$2.35/ea

350 kcmil - 6 AWG
FLEX 262 kcmil - 4 AWG
3/8" Hex Socket Screw

5/16"

0.343" mounting bolt hole CU9AL

350 kcmil-6 AWG single wire single barrel turn prevent electrical lug

dimensions diagram

Dimensions

A: 1.91" (48.5mm)

B: 1.13" (28.6mm)

C: 1.00" (25.4mm)

I: 0.51" (13.2mm)

See Mechanical Drawing

for detailed dimensions

"S350-TP-34-51" 350 kcmil Single wire lug, 350 kcmil-6 AWG wire range, wire class B/C and FLEX, 262 kcmil – 4 AWG, wire class G-K including mm2 class 5, single barrel, Hex socket screw, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole of .343 inch dia 5/16" bolt, NEMA mounting holes and spacing; this is not a NEMA tested part, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. Made in the USA from domestic and imported parts.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S350 Style No. 2

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S350-TP-34-51 Print



IEC grounding sybol



UL & Canada Approved for FLEX wire class G-K sizes #262 kcmil-#4 AWG
Use of Ferrules (UL Listed) on wires 262 kcmil-4 AWG

310 Amp 75C Cu Wire
350 Amp 90C Cu Wire
250 Amp 75C Al Wire
280 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX

S350-TP-34-51
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

350 kcmil Single Wire Single Barrel Mechanical Lug 350 kcmil- 6 AWG, FLEX 262 kcmil -4 AWG

Purchase
S350-41-50

350 kcmil Lug

FLEX 262 kcmil - 4 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating

1 to 44pcs
$5.98/ea
(or)
45pcs & up
$4.44/ea

(or)

300pcs
"full box"
$3.33/ea

350 kcmil - 6 AWG
FLEX 262 kcmil - 4 AWG
3/8" Hex Socket Screw

3/8"

0.41" mounting bolt hole CU9AL

350 kcmil-6 AWG single wire single barrel electrical lug

S350-41-50 and S350-41-50 stacking, nesting and interlocking lugs

Dual/Interlocking Lugs

2 Wire Application

S350-41-50 and S350-41-50

S750 - 90 degree stacking lugs

Dual Interlocking Lugs/

90 Degree Wire Splicer -

Right angle lug set



Hardware not included.

Lugs sold individually.



For more interlocking lugs

click here.

dimensions diagram

Dimensions

A: 2.00" (50.8mm)

B: 1.13" (28.6mm)

C: 1.00" (25.4mm)

See Mechanical Drawing

for detailed dimensions

"S350-41-50" 350 kcmil single wire lug, 350 kcmil-6 AWG wire range, wire class B/C and FLEX, 262 kcmil – 4 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole of .41 inch dia 3/8" bolt, NEMA mounting holes and spacing; this is not a NEMA tested part, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. IHI Connectors® brand. Made in the USA from domestic and imported parts.



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S350 Style No. 1

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S350-41-50 Print



IEC grounding sybol



WIRE CONNECTORS AND SOLDERING LUGS (ZMVV)



INSTALLATION

Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.

"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make completecontact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book ZMVV section



ZMVV UL Whitebook Installation Information



UL & Canada Approved for FLEX wire class G-K sizes #262 kcmil-#4 AWG
Use of Ferrules (UL Listed) on wires 262 kcmil-4 AWG



"S350" 350 kcmil-6 gama de alambre de AWG, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo montar hoyo de 0,343 dia de pulgada 5/16" tornillo, UL Listó, Canada Certificó. Marca IHI. Hecho en EE.UU. de partes nacionales e importadas.

310 Amp 75C Cu Wire
350 Amp 90C Cu Wire
250 Amp 75C Al Wire
280 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX

S350-41-50
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

350 kcmil Single Wire Single Barrel Mechanical Lug 350 kcmil- 6 AWG, FLEX 262 kcmil -4 AWG

Purchase
S350-TP-41-59

350 kcmil Lug

FLEX 262 kcmil - 4 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating

1 to 54pcs
$4.21/ea
(or)
55pcs & up
$3.13/ea

(or)

300pcs
"full box"
$2.35/ea

350 kcmil - 6 AWG
FLEX 262 kcmil - 4 AWG
3/8" Hex Socket Screw

3/8"

0.41" mounting bolt hole CU9AL

350 kcmil-6 AWG single wire single barrel turn prevent electrical lug

dimensions diagram

Dimensions

A: 1.91" (48.5mm)

B: 1.13" (28.6mm)

C: 1.00" (25.4mm)

I: 0.59" (15.0mm)

See Mechanical Drawing

for detailed dimensions

"S350-TP-41-59" 350 kcmil Single wire lug, 350 kcmil-6 AWG wire range, wire class B/C and FLEX, 262 kcmil – 4 AWG, wire class G-K including mm2 class 5, single barrel, Hex socket screw, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole of .41 inch dia 3/8" bolt, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. International Hydraulics Inc® brand.
UL & Canada Approved for FLEX wire class G-K sizes #262 kcmil-#4 AWG
Use of Ferrules (UL Listed) on wires 262 kcmil-4 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S350 Style No. 2

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S350-TP-41-59 Print



IEC grounding sybol

310 Amp 75C Cu Wire
350 Amp 90C Cu Wire
250 Amp 75C Al Wire
280 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX

S350-TP-41-59
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

350 kcmil Single Wire Single Barrel Mechanical Lug 350 kcmil- 6 AWG, FLEX 262 kcmil -4 AWG

Purchase
S350-53-50

350 kcmil Lug

FLEX 262 kcmil - 4 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 89pcs
$5.98/ea
(or)
90pcs & up
$4.44/ea

300pcs
"full box"
$3.33/ea

350 kcmil - 6 AWG
FLEX 262 kcmil - 4 AWG
3/8" Hex Socket Screw

1/2"

0.53" mounting bolt hole CU9AL

S350-53-50, 350 kcmil Single wire lug 350kcmil-6AWG

S350-53-50 and S350-53-50 stacking, nesting and interlocking lugs

Dual/Interlocking Lugs

2 Wire Application

S350-53-50 and S350-53-50



Hardware not included.

Lugs sold individually.



For more interlocking lugs

click here.

dimensions diagram

Dimensions

A: 2.00" (50.8mm)

B: 1.13" (28.6mm)

C: 1.00" (25.4mm)

See Mechanical Drawing for detailed dimensions

"S350-53-50" 350 kcmil Single wire lug, 350 kcmil-6 AWG wire range, wire class B/C and FLEX, 262 kcmil – 4 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole of .53 inch dia 1/2" bolt, NEMA mounting holes and spacing; this is not a NEMA tested part, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. IHI Connectors® brand. Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire class G-K sizes #262 kcmil-#4 AWG
Use of Ferrules (UL Listed) on wires 262 kcmil-4 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S350 Style No. 1

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S350-53-50 Print



IEC grounding sybol



WIRE CONNECTORS AND SOLDERING LUGS (ZMVV)



INSTALLATION

Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.

"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make completecontact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book ZMVV section



ZMVV UL Whitebook Installation Information



"S350-53-50" 6-350 kcmil rango de cable AWG, y FLEX clase alambre GK incluyendo clase mm2 5, 1 barril, aluminio o cobre alambre, CU9AL, 90 C rango de temperatura, un orificio de montaje de 0,53 pulgadas de diámetro 1 / 2 perno ", UL, con marca de certificación Canada. IHI.

310 Amp 75C Cu Wire
350 Amp 90C Cu Wire
250 Amp 75C Al Wire
280 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX

S350-53-50
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

350 kcmil Single Wire Single Barrel Mechanical Lug 350 kcmil- 6 AWG

Purchase
350TP

350 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 69pcs
$5.57/ea
(or)
70pcs & up
$4.14/ea

225pcs
"full box"
$3.10/ea

350 kcmil - 6 AWG Hex Socket Screw

5/16"

or 8mm

0.344" mounting bolt hole CU9AL
350 TURN PREVENT, 350kcmil Single wire lug 350kcmil - 6AWG

dimensions diagram

Dimensions

A: 2.25" (57.2mm)

B: 1.25" (31.75mm)

C: 1.13" (28.6mm)

I: 0.63" (16.0mm)

See Mechanical Drawing for detailed dimensions

"350TP" 350 kcmil Single wire lug, 350-6 AWG wire range, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole with anti-rotation rib(turn prevent) , Hex Socket Screw, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. 5/16" bolt. Brumall brand. Made in the USA from domestic and imported parts. Made in the USA from domestic and imported parts.



IEC grounding sybol



"350TP" La gama del cable de AWG 350-6, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo montar hoyo con costilla anti rotación (la vuelta previene), el Tornillo Hex Allen, UL Listó, Canada Certificó. Solo montar hoyo, 5/16" tornillo. Marca Brumall. Hecho en EE.UU. de partes nacionales e importadas.

310 Amp 75C Cu Wire
350 Amp 90C Cu Wire
250 Amp 75C Al Wire
280 Amp 90C Al Wire



E61509 UL486A,B,
ZMVV,
Canada22.2 No.65

350TP
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo

RoHS 10/10


Return to Top
Part No.

350 kcmil Single Wire Single Barrel Mechanical Lug 350 kcmil- 6 AWG

Purchase
BTP350

350 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 109pcs
$3.58/ea
(or)
110pcs & up
$2.66/ea

625pcs
"full box"
$2.00/ea

350 kcmil - 6 AWG Hex Socket Screw

1/4-20 threaded bolt



1/4-20 threaded mounting hole CU7AL
BTP350, 350 kcmil OEM, 350kcmil - 6AWG

dimensions diagram

Dimensions

A: 0.85" (21.6mm)

B: 1.10" (27.9mm)

C: 0.85" (21.6mm)

I: 0.42" (10.7mm)

See Mechanical Drawing for detailed dimensions

"BTP350" 350 kcmil OEM, 350kcmil-6AWG wire range, collar /box type connector, Turn Prevent Rib, 1/4-20 threaded mounting hole for bus, tang, or Neutral Bar mounting. 0.44" from hole to bus end, single wire, tin plated aluminum with aluminum screw, dual rated for aluminum or copper wire, CU7AL, 75C temperature rating, single mounting hole, UL Recognized at 600v - acceptable for use through 2000v. Hex Socket Screw, Brumall brand. Made in the USA from domestic and imported parts.



310 Amp 75C Cu Wire
250 Amp 75C Al Wire



E61509 UL486A,B,
ZMVV,
Canada22.2 No.65

BTP350
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

ZMVV2.E61509

RoHS 10/10


Return to Top
Part No.

350 kcmil NEMA Single Wire Single Barrel Mechanical Lug 350 kcmil- 6 AWG

Purchase
350L2

350 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 41pcs
$7.75/ea
(or)
42pcs & up
$5.76/ea

143pcs
"full box"
$4.32/ea

350 kcmil - 6 AWG Hex Socket Screw

1/2"

two 0.562" mounting bolt holes CU9AL
350L2, 350 kcmil Single wire NEMA Panelboard lug, 350kcmil - 6AWG

dimensions diagram

Dimensions

A: 4.31" (109.5mm)

B: 1.38" (35.1mm)

C: 1.13" (28.7mm)

L: 1.75" (44.5mm)

See Mechanical Drawing for detailed dimensions

"350L2" 350 kcmil Single wire panelboard lug, 350 kcmil-6 AWG wire range, panel lug, one barrel, aluminum or copper wire, CU9AL, 90C temperature rating, NEMA mounting holes and spacing; this is not a NEMA tested part, two 1/2" bolt mounting holes, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Brumall brand. Made in the USA from domestic and imported parts.



IEC grounding sybol



Comparison between Panelboard and Switchgear



"350L2" 350 kcmil - 6 AWG gama de alambre, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, dos 1/2" tornillos que monta hoyos, UL Listó, Canada Certificó. Marca Brumall. Hecho en EE.UU. de partes nacionales e importadas

310 Amp 75C Cu Wire
350 Amp 90C Cu Wire
250 Amp 75C Al Wire
280 Amp 90C Al Wire



E61509 UL486A,B,
ZMVV,
Canada22.2 No.65

350L2
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo

RoHS 10/10


Return to Top
Part No.

500 kcmil Metric Single Wire Single Barrel Mechanical Lug 500 kcmil- 4 AWG, FLEX 350 kcmil - 4 AWG

Purchase
S500-12.8-32-M

500 kcmil Lug

FLEX 350 kcmil - 4 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating

1 to 44pcs
$8.34/ea
(or)
45pcs & up
$6.20/ea

150pcs
"full box"
$4.65/ea

500 kcmil - 4 AWG
FLEX 350 kcmil - 4 AWG
10mm Hex Socket Screw

1/2"

or M12

.509" mounting bolt hole CU7AL

S500-12.8-32-M Single wire single barrel lug, 500 kcmil-4 AWG wire range

dimensions diagram

Dimensions

A: 2.75" (69.9mm)

B: 1.50" (38.1mm)

C: 1.25" (31.8mm)

See Mechanical Drawing for detailed dimensions



Note!!!   This part has a 10mm hex socket for use in metric countries.



"S500-12.8-32-M" 500 kcmil Metric Single wire lug, 500 kcmil-4 AWG wire range, wire class B/C and FLEX, 350 kcmil - 4 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU7AL, 75C temperature rating, one 1/2" or M12 bolt mounting hole , Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. Made in the USA from domestic and imported parts.
UL & Canada Approved for FLEX wire class G-K sizes #350 kcmil-#4 AWG
Use of Ferrules (UL Listed) on wires 350 kcmil-4 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S500N Style No. 1

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S500-12.8-20-M Print



IEC grounding sybol



380 Amp 75C Cu Wire
310 Amp 75C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX

S500-12.8-32-M
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

500 kcmil Single Wire Single Barrel Mechanical Lug 500 kcmil- 4 AWG, FLEX 350 kcmil - 4 AWG

Purchase
S500-41-63

500 kcmil Lug

FLEX 350 kcmil - 4 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 49pcs
$6.55/ea
(or)
50pcs & up
$4.87/ea

150pcs
"full box"
$3.65/ea

500 kcmil - 4 AWG
FLEX 350 kcmil - 4 AWG
1/2" Hex Socket Screw

3/8"

or M10

0.41" mounting bolt hole CU9AL
S500-41-63, 500 kcmil Single wire lug 500kcmil - 4AWG

dimensions diagram

Dimensions

A: 2.75" (69.9mm)

B: 1.50" (38.1mm)

C: 1.38" (34.9mm)

See Mechanical Drawing for detailed dimensions

"S500-41-63" 500 kcmil Single wire lug, 500 kcmil-4 AWG wire range, wire class B/C and FLEX, 350 kcmil – 4 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 3/8 " bolt mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. "Drop-In" Replacement for Homac A-500 and Panduit LAMA500-38-6. Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire class G-K sizes #350 kcmil-#4 AWG
Use of Ferrules (UL Listed) on wires 350 kcmil-4 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S500 Style No. 1

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S500-41-63 Print



IEC grounding sybol



"S500-41-63" 500 kcmil-4 gama de alambre de AWG, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo 3/8" tornillo que monta hoyo, UL Listó, Canada Certificó. Marca IHI. Hecho en EE.UU. de partes nacionales e importadas.

380 Amp 75C Cu Wire
430 Amp 90C Cu Wire
310 Amp 75C Al Wire
350 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX

S500-41-63
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

500 kcmil Metric Single Wire Single Barrel Mechanical Lug 500 kcmil- 4 AWG, FLEX 350 kcmil - 4 AWG

Purchase
S500-41-63-M

500 kcmil Lug

FLEX 350 kcmil - 4 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 49pcs
$6.74/ea
(or)
50pcs & up
$5.01/ea

150pcs
"full box"
$3.76/ea

500 kcmil - 4 AWG
FLEX 350 kcmil - 4 AWG
10mm Hex Socket Screw

3/8"

or M10

0.41" mounting bolt hole CU9AL
S500-41-63, METRIC HEX SCREW, 500 kcmil Single wire lug, 500kcmil - 4AWG

dimensions diagram

Dimensions

A: 2.75" (69.9mm)

B: 1.50" (38.1mm)

C: 1.38" (34.9mm)

See Mechanical Drawing for detailed dimensions

Note!!!   This part has a 10mm hex socket for use in metric countries.



"S500-41-63-M" 500 kcmil metric single wire lug, 500 kcmil-4 AWG wire range, wire class B/C and FLEX, 350 kcmil – 4 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 3/8 " bolt mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, 10mm Metric Hex Socket Screw. Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire class G-K sizes #350 kcmil-#4 AWG
Use of Ferrules (UL Listed) on wires 350 kcmil-4 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S500 Style No. 1

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S500-41-63-M Print



IEC grounding sybol



"S500-41-63" 500 kcmil-4 gama de alambre de AWG, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo 3/8" tornillo que monta hoyo, UL Listó, Canada Certificó. Marca IHI. Hecho en EE.UU. de partes nacionales e importadas.

380 Amp 75C Cu Wire
430 Amp 90C Cu Wire
310 Amp 75C Al Wire
350 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX

S500-41-63-M
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

500 kcmil Single Wire Single Barrel Mechanical Lug 500 kcmil- 4 AWG, FLEX 350 kcmil - 4 AWG

Purchase
S500-41-107

500 kcmil Lug

FLEX 350 kcmil - 4 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 39pcs
$12.23/ea
(or)
40pcs & up
$9.09/ea

150pcs
"full box"
$6.82/ea

500 kcmil - 4 AWG
FLEX 350 kcmil - 4 AWG
1/2" Hex Socket Screw

3/8"

or M10

0.41" mounting bolt hole CU9AL

S500-41-107 single wire lug 500 kcmil-4 AWG single wire single barrel

S500-41-107 single wire lug 500 kcmil-4 AWG single wire single barrel with bolt

dimensions diagram

Dimensions

A: 2.75" (69.9mm)

B: 1.50" (38.1mm)

C: 1.38" (34.9mm)

See Mechanical Drawing for detailed dimensions

"S500-41-107" 500 kcmil Single wire lug, 500 kcmil-4 AWG wire range, wire class B/C and FLEX, 350 kcmil – 4 AWG, wire class G-K including mm2 class 5, single barrel, Hex socket screw, aluminum or copper wire, CU9AL, 90C temperature rating, one 3/8 " bolt mounting hole. NEMA mounting holes and spacing; this is not a NEMA tested part. The mounting bolt hole is closer to the wire barrel than the S500-41-63. Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire class G-K sizes #350 kcmil-#4 AWG
Use of Ferrules (UL Listed) on wires 350 kcmil-4 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S500 Style No. 1

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S500-41-107 Print



IEC grounding sybol



"S500-41-107" 500 kcmil-4 gama de alambre de AWG, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo 3/8" tornillo que monta hoyo, UL Listó, Canada Certificó. Marca IHI. Hecho en EE.UU. de partes nacionales e importadas.

380 Amp 75C Cu Wire
430 Amp 90C Cu Wire
310 Amp 75C Al Wire
350 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX

S500-41-107
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

500 kcmil Single Wire Single Barrel Mechanical Lug 500 kcmil- 4 AWG, FLEX 350 kcmil - 4 AWG

Purchase
S500-53-63

500 kcmil Lug

FLEX 350 kcmil - 4 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 64pcs
$6.55/ea
(or)
65pcs & up
$4.87/ea

150pcs
"full box"
$3.65/ea

500 kcmil - 4 AWG
FLEX 350 kcmil - 4 AWG
1/2" Hex Socket Screw 1/2" 0.53" mounting bolt hole CU9AL
S500-41-63, 500 kcmil Single wire lug, 500kcmil - 4AWG

dimensions diagram

Dimensions

A: 2.75" (69.9mm)

B: 1.50" (38.1mm)

C: 1.38" (34.9mm)

See Mechanical Drawing for detailed dimensions

"S500-53-63" 500 kcmil Single wire lug, 500 kcmil-4 AWG wire range, wire class B/C and FLEX, 350 kcmil – 4 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 1/2" bolt mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire class G-K sizes #350 kcmil-#4 AWG
Use of Ferrules (UL Listed) on wires 350 kcmil-4 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S500 Style No. 1

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S500-53-63 Print



IEC grounding sybol



"S500-53-63" Lug solo alambre , 500 kcmil - 4 gama AWG y FLEX clase alambre GK incluyendo clase mm2 5 , 1 barril, aluminio o alambre de cobre, CU9AL , 90C clasificación de temperatura , uno 8.3 orificio de montaje de perno " , UL, certificación Canada . marca IHI

380 Amp 75C Cu Wire
430 Amp 90C Cu Wire
310 Amp 75C Al Wire
350 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65



GUIDE ON FLEX

S500-53-63
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

600 kcmil Single Wire Single Barrel Mechanical Lug 600 kcmil- 4 AWG, FLEX 444 kcmil - 2 AWG

Purchase
S600-41-63

600 kcmil Lug

FLEX 444 kcmil - 2 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 49pcs
$6.55/ea
(or)
50pcs & up
$4.87/ea

150pcs
"full box"
$3.65/ea

600 kcmil - 4 AWG
FLEX 444 kcmil - 2 AWG
1/2" Hex Socket Screw 3/8" 0.406" mounting bolt hole CU9AL
S600-41-63, 600 kcmil Single wire lug, 600kcmil - 4AWG

dimensions diagram

Dimensions

A: 2.75" (69.9mm)

B: 1.50" (38.1mm)

C: 1.38" (34.9mm)

See Mechanical Drawing for detailed dimensions

"S600-41-63" 600 kcmil Single wire lug, 600 kcmil-4 AWG wire range, wire class B/C and FLEX, 444 kcmil - 2 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 3/8 " bolt mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, 10mm Metric Hex Socket Screw. Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. "Drop-In" Replacement for Homac A-600 and Panduit LAMA600-38-6. Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire class G-K sizes #444 kcmil-#2 AWG
Use of Ferrules (UL Listed) on wires 444 kcmil-2 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S600 Style No. 1

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S600-41-63 Print



IEC grounding sybol



"S600-41-63" 600 kcmil-4 gama de alambre de AWG, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo 3/8" tornillo que monta hoyo, UL Listó, Canada Certificó. Marca IHI. Hecho en EE.UU. de partes nacionales e importadas.

420 Amp 75C Cu Wire
475 Amp 90C Cu Wire
340 Amp 75C Al Wire
385 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65
200116



GUIDE ON FLEX

S600-41-63
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

600 kcmil Metric Single Wire Single Barrel Mechanical Lug 600 kcmil- 4 AWG, FLEX444 kcmil - 2 AWG

Purchase
S600-41-63-M

600 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 49pcs
$6.74/ea
(or)
50pcs & up
$5.01/ea

150pcs
"full box"
$3.76/ea

600 kcmil - 4 AWG 10mm Hex Socket Screw 3/8" 0.406" mounting bolt hole CU9AL
S600-41-63, 600 kcmil Single wire lug, 600kcmil - 4AWG

dimensions diagram

Dimensions

A: 2.75" (69.9mm)

B: 1.50" (38.1mm)

C: 1.38" (34.9mm)

See Mechanical Drawing for detailed dimensions

Note!!!   This part has a 10mm hex socket for use in metric countries.



"S600-41-63-M" 600 kcmil metric single wire lugs, 600 kcmil-4 AWG wire range, wire class B/C and FLEX, 444 kcmil - 2 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 3/8" bolt mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part,Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire class G-K sizes #444 kcmil-#2 AWG
Use of Ferrules (UL Listed) on wires 444 kcmil-2 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S600 Style No. 1

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S600-41-63-M Print



IEC grounding sybol



"S600-41-63" 600 kcmil-4 gama de alambre de AWG, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo 3/8" tornillo que monta hoyo, UL Listó, Canada Certificó. Marca IHI. Hecho en EE.UU. de partes nacionales e importadas.

420 Amp 75C Cu Wire
475 Amp 90C Cu Wire
340 Amp 75C Al Wire
385 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65
200116



GUIDE ON FLEX

S600-41-63-M
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

600 kcmil Single Wire Single Barrel Mechanical Lug 600 kcmil- 4 AWG, FLEX 444 kcmil - 2 AWG

Purchase
S600-53-63

600 kcmil Lug

FLEX 444 kcmil - 2 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 49pcs
$6.55/ea
(or)
50pcs & up
$4.87/ea

150pcs
"full box"
$3.65/ea

600 kcmil - 4 AWG
FLEX 444 kcmil - 2 AWG
1/2" Hex Socket Screw 1/2" 0.53" mounting bolt hole CU9AL
S600-53-63, 600 kcmil Single wire lug, 600kcmil - 4AWG

dimensions diagram

Dimensions

A: 2.75" (69.9mm)

B: 1.50" (38.1mm)

C: 1.38" (34.9mm)

See Mechanical Drawing for detailed dimensions

"S600-53-63" 600 kcmil Single wire lug, 600 kcmil-4 AWG wire range, wire class B/C and FLEX, 444 kcmil - 2 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 1/2" bolt mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire class G-K sizes #444 kcmil-#2 AWG
Use of Ferrules (UL Listed) on wires 444 kcmil-2 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S600 Style No. 1

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S600-53-63 Print



IEC grounding sybol



"S600-53-63" 600 kcmil-4 gama de alambre de AWG, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo 1/2" tornillo que monta hoyo, UL Listó, Canada Certificó. Marca IHI. Hecho en EE.UU. de partes nacionales e importadas.

420 Amp 75C Cu Wire
475 Amp 90C Cu Wire
340 Amp 75C Al Wire
385 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65
200116



GUIDE ON FLEX

S600-53-63
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

600 kcmil Metric Single Wire Single Barrel Mechanical Lug 600 kcmil- 4 AWG, FLEX 444 kcmil - 2 AWG

Purchase
S600-53-63-M

600 kcmil Lug

FLEX 444 kcmil - 2 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 49pcs
$6.74/ea
(or)
50pcs & up
$5.01/ea

150pcs
"full box"
$3.76/ea

600 kcmil - 4 AWG
FLEX 444 kcmil - 2 AWG
10mm Hex Socket Screw 1/2" 0.53" mounting bolt hole CU9AL
S600-53-63, 600 kcmil METRIC HEX SCREW,Single wire lug,  600kcmil - 4AWG

dimensions diagram

Dimensions

A: 2.75" (69.9mm)

B: 1.50" (38.1mm)

C: 1.38" (34.9mm)

See Mechanical Drawing for detailed dimensions

Note!!!   This part has a 10mm hex socket for use in metric countries.



"S600-53-63-M" 600 kcmil metric single wire lug, 600 kcmil-4 AWG wire range, wire class B/C and FLEX, 444 kcmil - 2 AWG, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 1/2" bolt mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, 10mm Metric Hex Screw. Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire class G-K sizes #444 kcmil-#2 AWG
Use of Ferrules (UL Listed) on wires 444 kcmil-2 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S600 Style No. 1

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S600-53-63-M Print



IEC grounding sybol



"S600-53-63-M" rango de cable de 600 kcmil-4 AWG y FLEX clase alambre GK incluyendo clase mm2 5, 1 barril, aluminio o cobre, CU9AL, 90 C rango de temperatura, un medio agujero de montaje de perno ", Listado 10mm Métricas Tornillo hexagonal. UL, Canada marca certificada. IHI.

420 Amp 75C Cu Wire
475 Amp 90C Cu Wire
340 Amp 75C Al Wire
385 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65
200116



GUIDE ON FLEX

S600-53-63-M
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

600 kcmil Single Wire Single Barrel Mechanical Lug 600 kcmil- 4 AWG, FLEX 444 kcmil - 2 AWG

Purchase
S600-53-63-SE

600 kcmil Lug

FLEX 444 kcmil - 2 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 49pcs
$7.20/ea
(or)
50pcs & up
$5.36/ea

150pcs
"full box"
$4.02/ea

600 kcmil - 4 AWG
FLEX 444 kcmil - 2 AWG
1/2" Hex Socket Screw 1/2" 0.53" mounting bolt hole CU9AL
S600-53-63 SIDE WIRE ENTRANCE, 600 kcmil Single wire lug, 600 kcmil - 4AWG

dimensions diagram

Dimensions

A: 2.75" (69.9mm)

B: 1.50" (38.1mm)

C: 1.38" (34.9mm)

See Mechanical Drawing for detailed dimensions

"S600-53-63-SE" 600 kcmil Single wire lug, 600 kcmil-4 AWG wire range, wire class B/C and FLEX, 444 kcmil - 2 AWG, wire class G-K including mm2 class 5, 90 degree, SIDE WIRE ENTRY HOLE, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 1/2" bolt mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. Made in the USA from domestic and imported parts.



UL & Canada Approved for FLEX wire class G-K sizes #444 kcmil-#2 AWG
Use of Ferrules (UL Listed) on wires 444 kcmil-2 AWG



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S600 Style No. 1

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the S600-53-63-SE Print



IEC grounding sybol



"S600-53-63-SE" Entrada al lado! 600 kcmil-4 gama de alambre de AWG, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo 1/2" tornillo que monta hoyo, UL Listó, Canada Certificó. Marca IHI. Hecho en EE.UU. de partes nacionales e importadas.

420 Amp 75C Cu Wire
475 Amp 90C Cu Wire
340 Amp 75C Al Wire
385 Amp 90C Al Wire



E129884 UL486A,B, ZMVV,
1243943
Canada 22.2 No.65
200116



GUIDE ON FLEX

S600-53-63-SE
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

600 kcmil Single Wire Single Barrel Mechanical Lug 600 kcmil- 2 AWG

Purchase
600TP

600 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 31pcs
$10.42/ea
(or)
32pcs & up
$7.74/ea

98pcs
"full box"
$5.81/ea

600 kcmil - 2 AWG Hex Socket Screw 1/2" 0.531" mounting bolt hole CU9AL
600TP, 600 kcmil Single wire lug, 600kcmil - 2AWG

dimensions diagram

Dimensions

A: 3.13" (79.5mm)

B: 1.56" (39.6mm)

C: 1.50" (38.1mm)

I: 0.63" (16.0mm)

See Mechanical Drawing for detailed dimensions

"600TP" 600 kcmil Single wire lug, 600 kcmil-2 AWG wire range, TURN PREVENT RIB, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 1/2" bolt mounting hole , Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Brumall brand. Made in the USA from domestic and imported parts.



IEC grounding sybol



"600TP" 600 kcmil-2 gama de alambre de AWG, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo 1/2" tornillo que monta hoyo, con costilla anti rotación (la vuelta previene) UL Listó, Canada Certificó. Marca Brumall. Hecho en EE.UU. de partes nacionales e importadas.

420 Amp 75C Cu Wire
475 Amp 90C Cu Wire
340 Amp 75C Al Wire
385 Amp 90C Al Wire



E61509 UL486A,B, ZMVV,
Canada22.2 No.65
200116

600TP
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo

RoHS 10/10


Return to Top
Part No.

600 kcmil NEMA Single Wire Single Barrel Mechanical Lug 600 kcmil- 2 AWG

Purchase
600L2

600 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating

1 to 29pcs
$11.23/ea
(or)
30pcs & up
$3.35/ea

78pcs
"full box"
$6.26/ea

600 kcmil - 2 AWG Hex Socket Screw 1/2" Two 0.562" mounting bolt holes CU9AL
600L2, 600 kcmil Single wire NEMA Panelboard lug, 600kcmil - 2 AWG

dimensions diagram

Dimensions

A: 4.50" (114.3mm)

B: 1.56" (39.6mm)

C: 1.50" (38.1mm)

L: 1.75" (44.5mm)

See Mechanical Drawing for detailed dimensions

"600L2" 600 kcmil Single wire panelboard lug, 600 kcmil-2 AWG wire range, panel lug, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, NEMA mounting holes and spacing; this is not a NEMA tested part, two 1/2" bolt mounting holes, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Brumall brand. Made in the USA from domestic and imported parts.



IEC grounding sybol



Comparison between Panelboard and Switchgear



"600L2" 600 kcmil - 2 AWG gama de alambre, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, dos 1/2" tornillos que monta hoyos, UL Listó, Canada Certificó. Marca Brumall. Hecho en EE.UU. de partes nacionales e importadas

420 Amp 75C Cu Wire
475 Amp 90C Cu Wire
340 Amp 75C Al Wire
385 Amp 90C Al Wire



E61509 UL486A,B,
ZMVV,
Canada22.2 No.65
200116

600L2
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo

RoHS 10/10


Return to Top
Part No.

750 kcmil NEMA Single Wire Single Barrel Mechanical Lug 750 kcmil- 1/0 AWG

Purchase
S750-53-63

750 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating

1 to 34pcs
$9.91/ea
(or)
35pcs & up
$7.37/ea

(or)

100pcs
"full box"
$5.53/ea

750 kcmil - 1/0 AWG 1/2" Hex Socket Screw 1/2" 0.53" mounting bolt holes CU9AL

S750-53-63 single wire single barrel lug 750 kcmil-1/0 AWG wire range

2S2 double wire double barrel lug 2 - 14 AWG stacking, nesting, interlocking lugs four wire application

Dual Interlocking Lugs/ Two Wire Application

S750 - 90 degree stacking lugs

Dual Interlocking Lugs/ 90 Degree Wire Splicer - Right angle lug set



Hardware not included. Lugs sold individually.



For more interlocking lugs

click here.

dimensions diagram

Dimensions

A: 2.84" (72.1mm)

B: 1.81" (46.0mm)

C: 1.36" (34.5mm)

See Mechanical Drawing for detailed dimensions

"S750-53-63" 750 kcmil Single wire lug, 750 kcmil-1/0 AWG wire range, wire class B/C, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 1/2" bolt mounting hole,  Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. International Hydraulics Inc® brand.





IEC grounding sybol



Comparison between Panelboard and Switchgear





WIRE CONNECTORS AND SOLDERING LUGS (ZMVV)



INSTALLATION

Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.

"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make completecontact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book ZMVV section



475 Amp 75C Cu Wire
535 Amp 90C Cu Wire
385 Amp 75C Al Wire
435 Amp 90C Al Wire



E61509 UL486A,B,
ZMVV,
Canada22.2 No.65
200116

750-53-63
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

750 kcmil NEMA Single Wire Single Barrel Mechanical Lug 750 kcmil- 1/0 AWG

Purchase
S750-66-63

750 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating

1 to 34pcs
$9.91/ea
(or)
35pcs & up
$7.37/ea

(or)

100pcs
"full box"
$5.53/ea

750 kcmil - 1/0 AWG 1/2" Hex Socket Screw 5/8" 0.66" mounting bolt holes CU9AL

S750-53-63 single wire single barrel lug 750 kcmil-1/0 AWG wire range

dimensions diagram

Dimensions

A: 2.84" (72.1mm)

B: 1.81" (46.0mm)

C: 1.36" (34.5mm)

See Mechanical Drawing for detailed dimensions

"S750-66-63" 750 kcmil Single wire lug, 750 kcmil-1/0 AWG wire range, wire class B/C, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 5/8" bolt mounting hole,  Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. International Hydraulics Inc® brand.





IEC grounding sybol



475 Amp 75C Cu Wire
535 Amp 90C Cu Wire
385 Amp 75C Al Wire
435 Amp 90C Al Wire



E61509 UL486A,B,
ZMVV,
Canada22.2 No.65
200116

750-66-63
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

800 kcmil Single Wire Single Barrel Mechanical Lug 800 kcmil- 2 AWG

Purchase
800T

800 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 26pcs
$12.05/ea
(or)
27pcs & up
$8.96/ea

75pcs
"full box"
$6.72/ea

800-300 kcmil Hex Socket Screw 5/8" 0.656" mounting bolt hole CU9AL
800T, 800 kcmilk Single wire lug, 800kcmil - 300kcmil

dimensions diagram

Dimensions

A: 3.38" (85.9mm)

B: 1.94" (49.1mm)

C: 1.58" (40.1mm)

See Mechanical Drawing for detailed dimensions

"800T" 800 kcmil Single wire lug, 800 kcmil- 300 kcmil wire range, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 5/8" bolt mounting hole , Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Brumall brand. Made in the USA from domestic and imported parts.



IEC grounding sybol



Comparison between Panelboard and Switchgear



"800T" 800-300 kcmil gama de alambre, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, solo 5/8" tornillo que monta hoyo, UL Listó, Canada Certificó. Marca Brumall. Hecho en EE.UU. de partes nacionales e importadas

490 Amp 75C Cu Wire
555 Amp 90C Cu Wire
395 Amp 75C Al Wire
450 Amp 90C Al Wire



E61509 UL486A,B, ZMVV,
Canada 22.2 No.65
200116



800T
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo

RoHS 10/10


Return to Top
Part No.

800 kcmil NEMA Single Wire Single Barrel Mechanical Lug 800 kcmil- 2 AWG

Purchase
800L2

800 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 23pcs
$14.00/ea
(or)
24pcs & up
$10.41/ea

56pcs
"full box"
$7.81/ea

800-300 kcmil Hex Socket Screw 1/2" Two 0.562" mounting bolt holes CU9AL
800L2, 800 kcmil Single wire NEMA Panelboard lug, 800kcmil - 300kcmil

dimensions diagram

Dimensions

A: 4.75" (120.7mm)

B: 1.56" (39.6mm)

C: 1.50" (38.1mm)

L: 1.75" (44.5mm)

See Mechanical Drawing for detailed dimensions

"800L2" 800 kcmil Single wire panelboard lug,800 kcmil-300 kcmil wire range, panel lug, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, NEMA mounting holes and spacing, NEMA mounting holes and spacing; this is not a NEMA tested part, two 1/2" bolt mounting holes, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Brumall brand. Made in the USA from domestic and imported parts.



IEC grounding sybol



Comparison between Panelboard and Switchgear



"800L2" 800-300 kcmil gama de alambre, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, dos 1/2" tornillos que monta hoyos, UL Listó, Canada Certificó. Marca Brumall. Hecho en EE.UU. de partes nacionales e importadas

490 Amp 75C Cu Wire
555 Amp 90C Cu Wire
395 Amp 75C Al Wire
450 Amp 90C Al Wire



E61509 UL486A,B,
ZMVV,
Canada22.2 No.65
200116

800L2
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo

RoHS 10/10


Return to Top
Part No.

800 kcmil NEMA Single Wire Single Barrel Mechanical Lug 800 kcmil- 2 AWG

Purchase
800LL2

800 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 14pcs
$27.45/ea
(or)
15pcs & up
$20.40/ea

40pcs
"full box"
$15.30/ea

800-300 kcmil Hex Socket Screw 1/2" Two 0.562" mounting bolt holes CU9AL
800LL2, 800 kcmil Single wire NEMA Panelboard lug, 800kcmil - 300kcmil

dimensions diagram

Dimensions

A: 6.19" (157.2mm)

B: 1.88" (47.8mm)

C: 1.50" (38.1mm)

L: 1.75" (44.5mm)

See Mechanical Drawing for detailed dimensions

"800LL2" 800 kcmil Single wire lug, 800 kcmil-300 kcmil wire range, panel lug, single barrel, two binding screws, aluminum or copper wire, CU9AL, 90C temperature rating, NEMA mounting holes and spacing; this is not a NEMA tested part, two 1/2" bolt mounting holes, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Brumall brand. Made in the USA from domestic and imported parts.



IEC grounding sybol



Comparison between Panelboard and Switchgear



"800LL2" 800-300 kcmil gama de alambre, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, dos 1/2" tornillos que monta hoyos, UL Listó, Canada Certificó. Marca Brumall. Hecho en EE.UU. de partes nacionales e importadas

490 Amp 75C Cu Wire
555 Amp 90C Cu Wire
395 Amp 75C Al Wire
450 Amp 90C Al Wire



E61509 UL486A,B,
ZMVV,
Canada22.2 No.65
200116

800LL2
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo

RoHS 10/10


Return to Top
Part No.

1000 kcmil Single Wire Single Barrel Mechanical Lug 1000 kcmil- 500 kcmil

Purchase
1000T

1000 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 26pcs
$12.54/ea
(or)
27pcs & up
$9.32/ea

66pcs
"full box"
$6.99/ea

1000-500 kcmil Hex Socket Screw 5/8" 0.656" mounting bolt hole CU9AL
1000T, 1000 kcmil Single wire lug, 1000kcmil - 500kcmil

dimensions diagram

Dimensions

A: 3.38" (85.9mm)

B: 1.94" (49.3mm)

C: 1.75" (44.5mm)

See Mechanical Drawing for detailed dimensions

"1000T" 1000 kcmil Single wire lug, 1000-500 kcmil wire range, lug, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 5/8" bolt mounting hole NEMA mounting holes and spacing; this is not a NEMA tested part, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Brumall brand. Made in the USA from domestic and imported parts.



IEC grounding sybol



"1000T" 1000-500 kcmil gama de alambre, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, uno 5/8" tornillo que monta hoyo, UL Listó, Canada Certificó. Marca Brumall. Hecho en EE.UU. de partes nacionales e importadas

545 Amp 75C Cu Wire
615 Amp 90C Cu Wire
445 Amp 75C Al Wire
500 Amp 90C Al Wire



E61509 UL486A,B,
ZMVV,
Canada22.2 No.65
200116

1000T
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo

RoHS 10/10


Return to Top
Part No.

1000 kcmil NEMA Single Wire Single Barrel Mechanical Lug 1000 kcmil - 500 kcmil

Purchase
1000L2

1000 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 29pcs
$13.94/ea
(or)
30pcs & up
$10.36/ea

55pcs
"full box"
$7.77/ea

1000-500 kcmil Hex Socket Screw 1/2" Two 0.562" mounting bolt holes CU9AL
1000L2, 1000 kcmil Single wire NEMA Panelboard lug, 1000kcmil - 500kcmil

dimensions diagram

Dimensions

A: 4.75" (120.7mm)

B: 1.75" (44.5mm)

C: 1.75" (44.5mm)

L: 1.75" (44.5mm)

See Mechanical Drawing for detailed dimensions

"1000L2" 1000 kcmil Single wire panelboard lug, 1000-500 kcmil wire range, panel lug, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, NEMA mounting holes and spacing; this is not a NEMA tested part, two 1/2" bolt mounting holes, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Brumall brand. Made in the USA from domestic and imported parts.



IEC grounding sybol



Comparison between Panelboard and Switchgear



"1000L2" 1000-500 kcmil gama de alambre, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, dos 1/2" tornillos que monta hoyos, UL Listó, Canada Certificó. Marca Brumall. Hecho en EE.UU. de partes nacionales e importadas

545 Amp 75C Cu Wire
615 Amp 90C Cu Wire
445 Amp 75C Al Wire
500 Amp 90C Al Wire



E61509 UL486A,B,
ZMVV,
Canada22.2 No.65
200116

1000L2
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo

RoHS 10/10


Return to Top
Part No.

1000 kcmil NEMA Single Wire Single Barrel Mechanical Lug 1000-500 kcmil

Purchase
1000LL2

1000 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 14pcs
$28.91/ea
(or)
15pcs & up
$21.49/ea

40pcs
"full box"
$16.12/ea

1000-500 kcmil x2 Hex Socket Screws 1/2" Two 0.562" mounting bolt holes CU9AL
1000LL2, 1000 kcmil Single NEMA Panelboard wire lug, 1000kcmil - 500kcmil

dimensions diagram

Dimensions

A: 6.19" (157.2mm)

B: 1.88" (47.8mm)

C: 1.63" (41.4mm)

L: 1.75" (44.5mm)

See Mechanical Drawing for detailed dimensions

"1000LL2" 1000 kcmil Single wire panelboardlug, 1000-500 kcmil wire range, panel lug, single barrel, two binding screws, aluminum or copper wire, CU9AL, 90C temperature rating, NEMA mounting holes and spacing; this is not a NEMA tested part, two 1/2" bolt mounting holes, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Brumall brand. Made in the USA from domestic and imported parts.



IEC grounding sybol



Comparison between Panelboard and Switchgear



"1000LL2" 1000-500 kcmil gama de alambre, cable de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, dos 1/2" tornillos que monta hoyos, UL Listó, Canada Certificó. Marca Brumall. Hecho en EE.UU. de partes nacionales e importadas

545 Amp 75C Cu Wire
615 Amp 90C Cu Wire
445 Amp 75C Al Wire
500 Amp 90C Al Wire



E61509 UL486A,B,
ZMVV,
Canada22.2 No.65
200116

RoHS 10/10

1000LL2
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo

RoHS 10/10


Return to Top
Part No.

1500 kcmil NEMA Single Wire Single Barrel Mechanical Lug 1500 kcmil- 500 kcmil

Purchase
1500LL2

1500 kcmil Lug

Wire Range Screw Type Bolt Size Mounting Hole Rating
1 to 14pcs
$45.85/ea
(or)
10pcs & up
$34.08/ea

40pcs
"full box"
$25.56/ea

1500-800 kcmil x2 Hex Socket Screws 1/2" Two 0.562" mounting bolt holes CU9AL
1500LL2 1500 kcmil Single wire NEMA Panelboard lug, 1500-500 kcmil, panel lug

dimensions diagram

Dimensions

A: 6.63" (168.4mm)

B: 1.98" (50.3mm)

C: 2.00" (50.8mm)

L: 1.75" (44.5mm)

See Mechanical Drawing for detailed dimensions

"1500LL2" 1500 kcmil Single wire panelboard lug, 1500-800 kcmil wire range, panel lug, single barrel, two binding screws, aluminum or copper wire, CU-AL, NEMA mounting holes and spacing; this is not a NEMA tested part, two 1/2" bolt mounting holes, (NOT UL Listed, NOT Canada Certified). Brumall brand. Made in the USA from domestic and imported parts.



"1500LL2" 1500-800 kcmil gama de alambre, cable de aluminio o cobre, CU-AL, dos 1/2" tornillos que monta hoyos, (No es UL Listó, no es Canada Certificó). Marca Brumall. Hecho en EE.UU. de partes nacionales e importadas

Ref: 545Amp 75C Cu Wire
Ref: 615Amp 90C Cu Wire
Ref: 445Amp 75C Al Wire
Ref: 500Amp 90C Al Wire



(No UL)

1500LL2
Click for full Product Profile

For More Information Click the Icons Below
click for PDF document
NO UL/UR

RoHS 10/10


Return to Top



Copyright © 2024 Advancement International Ltd, Aurora Ohio - All Rights Reserved
Advancement International Ltd is a registered company of Ohio, USA
IHI® is the Registered Trademark of International Hydraulics Inc.
LugsDirect.com is owned and operated by Advancement International Ltd.
DUNS # 148692197, REGISTERED WITH CCR, CAGE / NCAGE NUMBER 5A6R9,
A2 WOMAN OWNED SMALL BUSINESS, NAICS 423610, SIC 3643,
Made in the USA from domestic and imported parts. USMCA CERTIFICATES AVAILABLE
