Dual/Interlocking (Stacking) Lugs



WIRE CONNECTORS AND SOLDERING LUGS (ZMVV) INSTALLATION



Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.



"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, and the like. The surface contact area of the mounting tang should make complete contact with the mounting surface or the previously stacked connector tang."



Ref. UL White Book, ZMVV section.



ZMVV UL Whitebook Installation Information

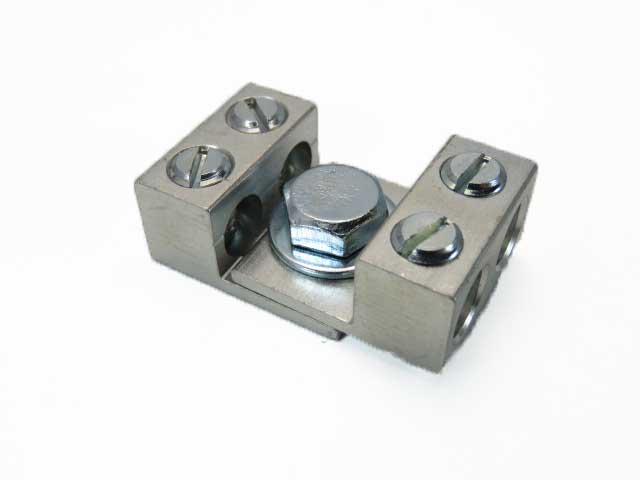

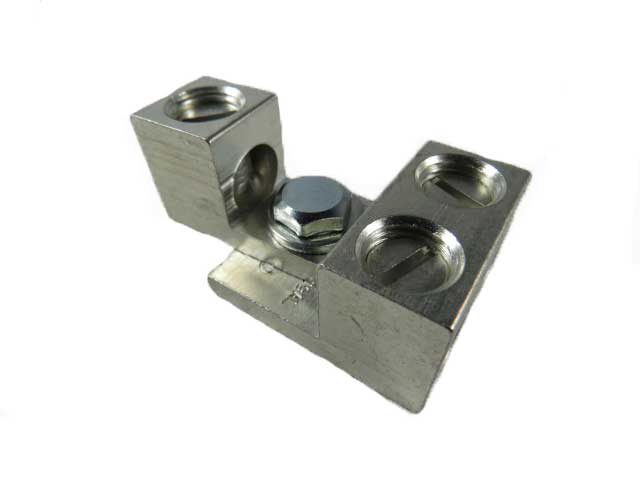

S350 350 kcmil Double wire lug dual interlocking lugs 2 wire application 350kcmil-6AWG2S2, 2 AWG Double wire lug dual interlocking lugs four wire application 2-14 AWG3S6-2S4-HEX and S1/0 dual interlocking lugs 7 wire application2S1/0 and S1/0 dual interlocking lugs three wire application3S6-2S4-HEX and 2S1/0-HEX dual interlocking lugs 7 wire application

Interlocking Lugs

Interactive Chart

Review the following charts to find compatable dual-interlocking lugs. adobe-pdf-icon A PDF icon indicates an available assembly pdf or diagram for those parts; just click to view. Click on individual part numbers to view details for that part. Parts are sold seperately. Hardware not included.



Assembly of Stacked Connectors and Standoffs



Search by Number of Barrels per Part



Single | Double | Multi





In a tight spot? Try 90 Degree Configurations
