Neutral Bars (Ground Bars, Earth Bars)

With mounting holes & slotted screws - available from stock - AMP rated 85A (CU), 70A (AL). Made in the USA from domestic and imported parts. Brumall brand. All parts wire range is 4-14 AWG, the parts are ordered by number of usable wires 2-22.





Compare Connectors mechanics para un conductor CON AGUJEROS DE MONTAJE y tornillos de cabeza ranurada - disponible en almacén - AMP NOMINAL 85A (CU), 70A (AL). Hecho en los EE.UU.. Marca Brumall. Todos rango de cable partes es 4-14 AWG, las piezas están clasificadas por número de cables usuable 2-22.



Tip: Listed ZMVV Lugs are approved for grounding use.



Search By Number of Wires:



2 Wires | 3 Wires | 4 Wires| 5 Wires | 6 Wires | 7 Wires





8 Wires | 10 Wires | 12 Wires | 20 Wires | 24 Wires | 36 Wires





Part Number
& Image
(Click for larger view)
Description and Information Pricing and
Purchasing

Part No. 4 AWG 2 Circuit 1 Mounting Hole Neutral Ground Bar 4-14 AWG Purchase

4-3,2

4 AWG Lug

Wire
Range
# of usable wires Length
+/-.02"
Width
Inch
Height
Inch
# of Mounting Holes  & Locations

1 to 509 pcs
$0.89/ea
(or)
510 pcs & up
$0.67/ea

(or)
One Box,
2230pcs
$0.50/ea

14 - 4 AWG 2 1.00" 0.312 0.437 1 at loc 2

4-3,2 4-14 AWG, 2 Circuit 1 Mounting Hole Neutral Ground Bar 4-14 AWG

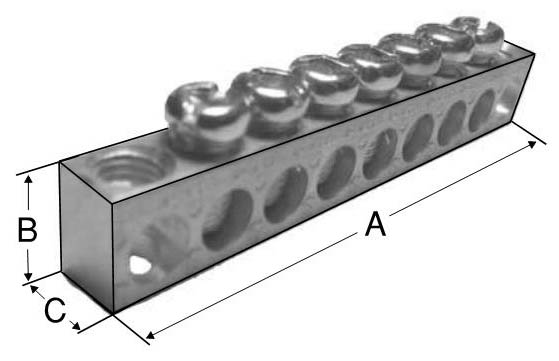

dimensions diagram

Dimensions

A: 1.00" (25.4mm)

B: 0.31" (7.9mm)

C: 0.44" (11.2mm)

See Mechanical Drawing for detailed dimensions



4-3, 2 Neutral Bar (2) circuits , (1) #10 mounting hole wire range 4-14 AWG Neutral/Ground bar, Dual Rated, Aluminum & Copper wire, CU9AL 90C Rating, UL Recognized at 600v - acceptable for use through 2000v at 600v - acceptable for use through 2000v, Canada Certified. Brumall brand.



Q. Can I use a ZMVV2 UL Recognized UR-label (not ZMVV Listed) wire connector for grounding?

A.  Only after further UL investigation for the mounting means and probably other “Conditions of Acceptability” that are defined in the ZMVV2 Recognized file and with more delay and added evaluation cost. That is not normally considered worth the trouble if a Listed ZMVV wire pressure connector is available.



(2) circuitos, (1) #10 hoyo que monta, 4-14 AWG Barra del Neutral/Tierra, Doble Valorado, el Aluminio & alambre de Cobre, la Calificación CU9AL 90C, UL Reconoció, Canada Certificó.

4-3,2
Click for full Product Profile
For More Information Click the Icons Below

Part Print

 TORQUE & WIRE RANGES

ZMVV2.E61509

Canada 22.2 No.65

RoHS 10/10

More Info

Return to Top
Part No.

4 AWG 3 Circuit 2 Mounting Holes Neutral Ground Bar 4-14 AWG

Purchase

4-5,1,5

4 AWG Lug

Wire
Range
# of usuable wires Length
+/-.02"
Width
Inch
Height
Inch
# of Mounting Holes  & Locations

1 to 339pcs
$1.12/ea
(or)
340pcs & up
$0.83/ea

(or)
One Box,
1560pcs
$0.63/ea

14 - 4 AWG 3 1.63" 0.31" 0.44" 2 at loc 1 and 5

4-5,1,5 3 Circuit 2 Mounting Holes Neutral Ground Bar 4-14 AWG

dimensions diagram

Dimensions

A: 1.63" (41.4mm)

B: 0.31" (7.9mm)

C: 0.44" (11.2mm)

See Mechanical Drawing for detailed dimensions







4-5, 1, 5 Neutral Bar (3) circuits , (2) #10 mounting hole wire range 4-14 AWG Neutral/Ground bar, Dual Rated, Aluminum & Copper wire, CU9AL 90C Rating, UL Recognized at 600v - acceptable for use through 2000v, Canada Certified. Brumall brand.



Q. Can I use a ZMVV2 UL Recognized UR-label (not ZMVV Listed) wire connector for grounding?

A.  Only after further UL investigation for the mounting means and probably other “Conditions of Acceptability” that are defined in the ZMVV2 Recognized file and with more delay and added evaluation cost. That is not normally considered worth the trouble if a Listed ZMVV wire pressure connector is available.



(3) circuitos, (2) #10 hoyo que monta, 4-14 AWG Barra del Neutral/Tierra, Doble Valorado, el Aluminio & alambre de Cobre, la Calificación CU9AL 90C, UL Reconoció, Canada Certificó

4-5,1,5
Click for full Product Profile
For More Information Click the Icons Below

Part Print

  TORQUE & WIRE RANGES

ZMVV2.E61509

Canada 22.2 No.65

RoHS 10/10

More Info

Return to Top
Part No.

4 AWG 4 Circuit 1 Mounting Holes Neutral Ground Bar 4-14 AWG

Purchase

4-5,3

4 AWG Lug

Wire
Range
# of usuable wires Length
+/-.02"
Width
Inch
Height
Inch
# of Mounting Holes  & Locations

1 to 334pcs
$1.32ea
(or)
335 & up

$0.98/ea
(or)

1500pcs
"full box"
$0.73/ea

14 - 4 AWG 4 1.63" 0.31" 0.44" 1 at loc 3

4-5,3 4 AWG 4 Circuit 1 Mounting Holes Neutral Ground Bar 4-14 AWG

dimensions diagram

Dimensions

A: 1.63" (41.4mm)

B: 0.31" (7.9mm)

C: 0.44" (11.2mm)

See Mechanical Drawing for detailed dimensions



4-5, 3 Neutral Bar (4) circuits , (1) #10 mounting hole wire range 4-14 AWG Neutral/Ground bar, Dual Rated, Aluminum & Copper wire, CU9AL 90C Rating, UL Recognized at 600v - acceptable for use through 2000v, Canada Certified. With slotted robertson head screw. Brumall brand.



Q. Can I use a ZMVV2 UL Recognized UR-label (not ZMVV Listed) wire connector for grounding?

A.  Only after further UL investigation for the mounting means and probably other “Conditions of Acceptability” that are defined in the ZMVV2 Recognized file and with more delay and added evaluation cost. That is not normally considered worth the trouble if a Listed ZMVV wire pressure connector is available.



(3) circuitos, (2) #10 hoyo que monta, 4-14 AWG Barra del Neutral/Tierra, Doble Valorado, el Aluminio & alambre de Cobre, la Calificación CU9AL 90C, UL Reconoció, Canada Certificó

4-5,3
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document

TORQUE & WIRE RANGES

ZMVV2.E61509

Canada 22.2 No.65

RoHS 10/10

More Info

Return to Top
Part No.

2 AWG Double Wire Mechanical Lug 2-14 AWG, FLEX 4-12 AWG

Purchase
4S2-N-21-2

2 AWG Lug

FLEX 4-12 AWG

Wire Range Screw Type Bolt Size Mounting Hole Rating

1 to 54pcs
$5.18/ea
(or)
55pcs & up
$3.85/ea

(or)

450pcs
"full box"
$2.89/ea

2 - 14 AWG

4-16 with ferrule**
FLEX 4-12 AWG

Slotted Screws #10

0.215" dia. mounting holes

CU9AL

4S2-HEX four wire four barrel lug 2 - 14 AWG

dimensions diagram

Dimensions

A: 2.50" (63.5mm)

B: 0.50" (12.7mm)

C: 0.56" (14.3mm)

See Mechanical Drawing for detailed dimensions

Two Wires Per Barrel

Wire Size AWG (mm2)

8

(8.37)

-

(6)

10

(5.26)

-

(4)

12

(3.31)

-

(2.5)

14

(2.08)

Code Copper - - Y Y Y Y Y
FLEX (G-K classes) (2) Copper Single Wires Only, 4-12AWG.
No mixing wire gauges.



"4S2-N-21-2" 2 AWG Quadruple wire lug, 2-14 AWG wire range, Multiple (dual) wire class B/C and FLEX, 4-12 AWG, 25mm2-4mm2, wire class G-K including mm2 class 5, four barrel, aluminum or copper wire, CU9AL, 90C temperature rating, two #10 bolt mounting holes, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. Made in the USA from domestic and imported parts. International Hydraulics Inc® brand.





IEC grounding sybol



**TORK KRIMP® TORK KRIMP® ICON - patent pendingMethod for clamping wires using uncrimped ferrules is protected under Patent No. 10630005. Full instructions for self crimping ferrules here.



Per Wire in Power Distribution
or Collection Mode:

115 Amp 75C Cu Wire
130 Amp 90C Cu Wire
90 Amp 75C Al Wire
100 Amp 90C Al Wire



E129884 UL486A,B,
ZMVV, 1243943
Canada 22.2 No.65
200116

4S2-N-21-2
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document


Rated Torque Label

UL Logo
CSA Logo

RoHS 10/10


Return to Top
Part No.

4 AWG 5 Circuit 2 Mounting Holes Neutral Ground Bar 4-14 AWG

Purchase

4-7,1,7

4 AWG Lug

Wire
Range
# of usable wires Length
+/-.02"
Width
Inch
Height
Inch
# of Mounting Holes  & Locations
1 to 239pcs
$1.72/ea
(or)
240pcs & up
$1.28/ea

(or)
One Box,
1020pcs
$0.96/ea

14 - 4 AWG 5 2.25" 0.31" 0.44" 2 at loc 1 and 7

4-7,1,7 5 Circuit 2 Mounting Holes Neutral Ground Bar 4-14 AWG

dimensions diagram

Dimensions

A: 2.25" (57.2mm)

B: 0.31" (7.9mm)

C: 0.44" (11.2mm)

See Mechanical Drawing for detailed dimensions





4-7,1,7 Neutral Bar (5) circuit , (2) #10 mounting hole wire range 4-14 AWG Neutral/Ground bar, Dual Rated, Aluminum & Copper wire, CU9AL 90C Rating, UL Recognized at 600v - acceptable for use through 2000v, Canada Certified. Brumall brand.



Q. Can I use a ZMVV2 UL Recognized UR-label (not ZMVV Listed) wire connector for grounding?

A.  Only after further UL investigation for the mounting means and probably other “Conditions of Acceptability” that are defined in the ZMVV2 Recognized file and with more delay and added evaluation cost. That is not normally considered worth the trouble if a Listed ZMVV wire pressure connector is available.



(5) circuitos, (2) #10 hoyo que monta, 4-14 AWG Barra del Neutral/Tierra, Doble Valorado, el Aluminio & alambre de Cobre, la Calificación CU9AL 90C, UL Reconoció, Canada Certificó

4-7,1,7
Click for full Product Profile
For More Information Click the Icons Below

Part Print

TORQUE & WIRE RANGES

ZMVV2.E61509

Canada 22.2 No.65

RoHS 10/10

More Info

Return to Top
Part No.

4 AWG Multi Wire Mechanical Lug 4-14 AWG

Purchase
3S6-2S4-HEX

4 AWG Lug

Wire Range # of usable wires Length
+/-.02"
Width
Inch
Height
Inch
# of Mounting Holes

1 to 69pcs
$5.06/ea
(or)
70pcs & up
$3.76/ea
(or)
One Box,
333pcs
$2.82/ea

(3) 14 - 6 AWG
(2) 14 - 4 AWG

5 1.62" 1.38" .75" 1

3S6-2S4-HEX 5 wire 5 barrel Grounding lug UL Listed & power distribution

dimensions diagram

Dimensions

A: 1.62" (41.1mm)

B: 0.75" (19.1mm)

C: 1.38" (35.1mm)

See Mechanical Drawing for detailed dimensions



UL LISTED power collection, power distrubution, ground and neutral bars.

"3S6-2S4-HEX" Five 5 barrel /wires (3) 6-14AWG    plus (2) 4-14AWG wire range, Grounding or Power Distribution or Power Collection Lug. UL Listed for General Use including grounding in dry locations. Up to Five wires (5 conductors) aluminum or copper wire, CU9AL, 90C temperature rating, one (1) 1/4" Bolt mounting hole , Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. Made in the USA from domestic and imported parts. Total current rating with 5 full size copper wires 365 Amp.



IEC grounding sybol


Cinco, 5 conductores. Gama de cable (3) 6-14 AWG & (2) 4-14 AWG, Cinco cables de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, uno montar hoyo, UL Listó, Canada Certificó. 365 Amp. Marca IHI, hecho en US.

GENERAL POWER AND CERTAIN GROUNDING USE UL LISTED LUG
Wire Rated current capacity

3S6-2S4-HEX
Click for full Product Profile
For More Information Click the Icons Below

click for PDF document

Part Print

TORQUE & WIRE RANGES

UL Logo

ZMVV.E129884

CSA Logo

Canada 22.2 No.65

UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

4 AWG Multi Wire Mechanical Lug 4-14 AWG

Purchase

3S6-2S4-HEX-M

4 AWG Lug

Wire Range # of usable wires Length
+/-.02"
Width
Inch
Height
Inch
# of Mounting Holes

1 to 64pcs
$5.06/ea
(or)
65pcs & up
$3.76/ea

(or)
One Box,
333pcs
$2.82/ea

(3) 14 - 6 AWG
(2) 14 - 4 AWG

5 1.62" 1.38" .75" 1

3S6-2S4-HEX-M metric 5 wire 5 barrel Grounding lug UL Listed & power distribution

dimensions diagram

Dimensions

A: 1.62" (41.1mm)

B: 0.75" (19.1mm)

C: 1.38" (35.1mm)

See Mechanical Drawing for detailed dimensions



UL LISTED power collection, power distrubution, ground and neutral bars.

"3S6-2S4-HEX-M" Five 5 barrel /wires (3) 6-14AWG    plus (2) 4-14AWG wire range, Grounding or Power Distribution or Power Collection Lug. UL Listed for General Use including grounding in dry locations. Up to Five wires (5 conductors) aluminum or copper wire, CU9AL, 90C temperature rating, one (1) 1/4" Bolt mounting hole , Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand. Made in the USA from domestic and imported parts. Total current rating with 5 full size copper wires 365 Amp. 5 Metric (3mm) Hex socket screws.



IEC grounding sybol



Cinco, 5 conductores. Gama de cable (3) 6-14 AWG & (2) 4-14 AWG, Cinco cables de aluminio o cobre, la calificación de la temperatura CU9AL, 90C, uno montar hoyo, UL Listó, Canada Certificó. 365 Amp. Marca IHI, hecho en US. 5 tornillos de cabeza hueca (3 mm) Hex métricas.

GENERAL POWER AND CERTAIN GROUNDING USE UL LISTED LUG
Wire Rated current capacity

3S6-2S4-HEX-M
Click for full Product Profile
For More Information Click the Icons Below

click for PDF document

Part Print

TORQUE & WIRE RANGES

UL Logo

ZMVV.E129884

CSA Logo

Canada 22.2 No.65

UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

4 AWG 6 Circuit 1 Mounting Hole Neutral Ground Bar 4-14 AWG

Purchase

4-7,4

4 AWG Lug

Wire
Range
# of usable wires Length
+/-.02"
Width
Inch
Height
Inch
# of Mounting Holes  & Locations
1 to 219pcs
$1.83/ea
(or)
220pcs & up
$1.36/ea
(or)
One Box,
910pcs
$1.02/ea

14 - 4 AWG 6 2.25" 0.31" 0.44" 1 at loc 4

4-7,4 4-14 AWG, 6 Circuit 1 Mounting Hole Neutral Ground Bar

dimensions diagram

Dimensions

A: 2.25" (57.2mm)

B: 0.31" (7.9mm)

C: 0.44" (11.2mm)

See Mechanical Drawing for detailed dimensions





4-7,4 Neutral Bar (6) circuit , (1) #10 mounting hole wire range 4-14 AWG Neutral/Ground bar, Dual Rated, Aluminum & Copper wire, CU9AL 90C Rating, UL Recognized at 600v - acceptable for use through 2000v, Canada Certified.  With slotted screws. Brumall brand.



Q. Can I use a ZMVV2 UL Recognized UR-label (not ZMVV Listed) wire connector for grounding?

A.  Only after further UL investigation for the mounting means and probably other “Conditions of Acceptability” that are defined in the ZMVV2 Recognized file and with more delay and added evaluation cost. That is not normally considered worth the trouble if a Listed ZMVV wire pressure connector is available.



(5) circuitos, (2) #10 hoyo que monta, 4-14 AWG Barra del Neutral/Tierra, Doble Valorado, el Aluminio & alambre de Cobre, la Calificación CU9AL 90C, UL Reconoció, Canada Certificó

4-7,4
Click for full Product Profile
For More Information Click the Icons Below

Part Print

TORQUE & WIRE RANGES

ZMVV2.E61509

Canada 22.2 No.65

RoHS 10/10

More Info

Return to Top
Part No.

4 AWG 6 Circuit 2 Mounting Holes Neutral Ground Bar 4-14 AWG

Purchase

4-8,1,8

4 AWG Lug

Wire
Range
# of usable wires Length
+/-.02"
Width
Inch
Height
Inch
# of Mounting Holes  & Locations

1 to 209pcs
$1.91/ea
(or)
210 & up

$1.42/ea

(or)

870pcs
"full box"
$1.06/ea

14 - 4 AWG 6 2.56" 0.31" 0.44" 2 at loc 1 and 8

4-8,1,8 4-14 AWG, 6 Circuit 2 Mounting Holes Neutral Ground Bar

dimensions diagram

Dimensions

A: 2.56" (65.0mm)

B: 0.31" (7.9mm)

C: 0.44" (11.2mm)

See Mechanical Drawing for detailed dimensions





4-8,1,8 Neutral Bar    (6) circuit , (2) #10 mounting hole wire range 4-14 AWG Neutral/Ground bar, Dual Rated, Aluminum & Copper wire, CU9AL 90C Rating, UL Recognized at 600v - acceptable for use through 2000v, Canada Certified. Brumall brand.



Q. Can I use a ZMVV2 UL Recognized UR-label (not ZMVV Listed) wire connector for grounding?

A.  Only after further UL investigation for the mounting means and probably other “Conditions of Acceptability” that are defined in the ZMVV2 Recognized file and with more delay and added evaluation cost. That is not normally considered worth the trouble if a Listed ZMVV wire pressure connector is available.



(6) circuitos, (2) #10 hoyo que monta, 4-14 AWG Barra del Neutral/Tierra, Doble Valorado, el Aluminio & alambre de Cobre, la Calificación CU9AL 90C, UL Reconoció, Canada Certificó.

4-8,1,8
Click for full Product Profile
For More Information Click the Icons Below

Part Print

 TORQUE & WIRE RANGES

ZMVV2.E61509

Canada 22.2 No.65

RoHS 10/10

More Info

Return to Top
Part No.

4 AWG 8 Circuit 2 Mounting Holes Neutral Ground Bar 4-14 AWG

Purchase

4-10,1,10

4 AWG Lug

Wire Range # of usable wires Length
+/-.02"
Width
Inch
Height
Inch
# of Mounting Holes  & Locations

1 to 154pcs
$2.42/ea
(or)
155pcs & up
$1.80/ea

(or)
One Box,
600pcs
$1.35/ea

14 - 4 AWG 8 3.19" 0.31" 0.44" 2 at loc 1 and 10
4-10,1,10 8 Circuit 2 Mounting Holes Neutral Ground Bar 4 - 14 AWG

dimensions diagram

Dimensions

A: 3.19" (81.0mm)

B: 0.31" (7.9mm)

C: 0.44" (11.2mm)

See Mechanical Drawing for detailed dimensions





4-10,1,10 Neutral Bar (8) circuit, (2) #10 mounting hole wire range 4-14 AWG Neutral/Ground bar, Dual Rated, Aluminum & Copper wire, CU7AL 75C Rating, UL Recognized at 600v - acceptable for use through 2000v, Canada Certified. With slotted robertson head screw. Brumall brand.



Q. Can I use a ZMVV2 UL Recognized UR-label (not ZMVV Listed) wire connector for grounding?

A.  Only after further UL investigation for the mounting means and probably other “Conditions of Acceptability” that are defined in the ZMVV2 Recognized file and with more delay and added evaluation cost. That is not normally considered worth the trouble if a Listed ZMVV wire pressure connector is available.



Bar Neutro ( 8 ) del circuito , ( 2 ) # 10 de montaje gama de alambre agujero 4-14 AWG barra de neutro / tierra , Dual Calificación , aluminio y alambre de cobre , CU7AL 75C Clasificación , Reconocido por UL , certificado por Canada . Con tornillo de cabeza ranurada Robertson .

4-10,1,10
Click for full Product Profile
For More Information Click the Icons Below

Part Print

TORQUE & WIRE RANGES

ZMVV2.E61509

Canada 22.2 No.65

RoHS 10/10

More Info

Return to Top
Part No.

4 AWG 10 Circuit 2 Mounting Holes Neutral Ground Bar 4-14 AWG

Purchase

4-12,1,12

4 AWG Lug

Wire
Range
# of usable wires Length
+/-.02"
Width
Inch
Height
Inch
# of Mounting Holes  & Locations

1 to 129pcs
$3.08/ea
(or)
130pcs & up
$2.29/ea
(or)
One Box,
550pcs
$1.72/ea

14 - 4 AWG 10 3.81" 0.31" 0.44" 2 at loc 1 & 12

4-12,1,12 4-14 AWG, n10 Circuit 2 Mounting Holes Neutral Ground Bar

dimensions diagram

Dimensions

A: 3.81" (96.8mm)

B: 0.31" (7.9mm)

C: 0.44" (11.2mm)

See Mechanical Drawing for detailed dimensions



4-12,1,12 Neutral Bar (10) circuit , (2) #10 mounting hole wire range 4-14 AWG Neutral/Ground bar, Dual Rated, Aluminum & Copper wire, CU9AL 90C Rating, UL Recognized at 600v - acceptable for use through 2000v, Canada Certified. Brumall brand.



Q. Can I use a ZMVV2 UL Recognized UR-label (not ZMVV Listed) wire connector for grounding?

A.  Only after further UL investigation for the mounting means and probably other “Conditions of Acceptability” that are defined in the ZMVV2 Recognized file and with more delay and added evaluation cost. That is not normally considered worth the trouble if a Listed ZMVV wire pressure connector is available.



(10) circuitos, (2) #10 hoyo que monta, 4-14 AWG Barra del Neutral/Tierra, Doble Valorado, el Aluminio & alambre de Cobre, la Calificación CU9AL 90C, UL Reconoció, Canada Certificó.

4-12,1,12
Click for full Product Profile
For More Information Click the Icons Below

Part Print

TORQUE & WIRE RANGES

ZMVV2.E61509

Canada 22.2 No.65

RoHS 10/10

More Info

Return to Top
Part No.

4 AWG 12 Circuit 2 Mounting Holes Neutral Ground Bar 4-14 AWG

Purchase

4-14,1,14

4 AWG Lug

Wire
Range
# of usable wires Length
+/-.02"
Width
Inch
Height
Inch
# of Mounting Holes  & Locations

1 to 119pcs
$3.44/ea
(or)
120pcs & up
$2.56/ea

(or)
One Box,
500pcs
$1.92/ea

14 - 4 AWG 12 4.44" 0.31" 0.44" 2 at loc 1 & 14

4 AWG 12 Circuit 2 Mounting Holes Neutral Ground Bar 4-14 AWG

dimensions diagram

Dimensions

A: 4.44" (112.8mm)

B: 0.31" (7.9mm)

C: 0.44" (11.2mm)

See Mechanical Drawing for detailed dimensions







4-14,1,14 Neutral Bar (12) circuit , (2) #10 mounting hole wire range 4-14 AWG Neutral/Ground bar, Dual Rated, Aluminum & Copper wire, CU9AL 90C Rating, UL Recognized at 600v - acceptable for use through 2000v, Canada Certified. Brumall brand.



Q. Can I use a ZMVV2 UL Recognized UR-label (not ZMVV Listed) wire connector for grounding?

A.  Only after further UL investigation for the mounting means and probably other “Conditions of Acceptability” that are defined in the ZMVV2 Recognized file and with more delay and added evaluation cost. That is not normally considered worth the trouble if a Listed ZMVV wire pressure connector is available.



(12) circuitos, (2) #10 hoyo que monta, 4-14 AWG Barra del Neutral/Tierra, Doble Valorado, el Aluminio & alambre de Cobre, la Calificación CU9AL 90C, UL Reconoció, Canada Certificó.

4-14,1,14
Click for full Product Profile
For More Information Click the Icons Below

Part Print

TORQUE & WIRE RANGES

ZMVV2.E61509

Canada 22.2 No.65

RoHS 10/10

More Info

Return to Top
Part No.

4 AWG 20 Circuit 2 Mounting Holes Neutral Ground Bar 4-14 AWG

Purchase

4-22,1,22

4 AWG Lug

Wire
Range
# of usable wires Length
+/-.02"
Width
Inch
Height
Inch
# of Mounting Holes  & Locations

1 to 76pcs
$5.51/ea
(or)
77pcs & up
$4.09/ea

(or)
One Box,
280pcs
$3.07/ea

14 - 4 AWG 20 6.94" 0.31" 0.44" 2 at loc 1 & 22

4-22,1,22 4-14 AWG, 20 Circuit 2 Mounting Holes Neutral Ground Bar4-22,1,22 4-14 AWG, 20 Circuit 2 Mounting Holes Neutral Ground Bar

dimensions diagram

Dimensions

A: 6.94" (176.3mm)

B: 0.31" (7.9mm)

C: 0.44" (11.2mm)

See Mechanical Drawing for detailed dimensions





4-22,1,22 Neutral Bar (20) circuit , (2) #10 mounting hole wire range 4-14 AWG Neutral/Ground bar, Dual Rated, Aluminum & Copper wire, CU9AL 90C Rating, UL Recognized at 600v - acceptable for use through 2000v, Canada Certified. Brumall brand.



Q. Can I use a ZMVV2 UL Recognized UR-label (not ZMVV Listed) wire connector for grounding?

A.  Only after further UL investigation for the mounting means and probably other “Conditions of Acceptability” that are defined in the ZMVV2 Recognized file and with more delay and added evaluation cost. That is not normally considered worth the trouble if a Listed ZMVV wire pressure connector is available.



(12) circuitos, (2) #10 hoyo que monta, 4-14 AWG Barra del Neutral/Tierra, Doble Valorado, el Aluminio & alambre de Cobre, la Calificación CU9AL 90C, UL Reconoció, Canada Certificó.

4-22,1,22
Click for full Product Profile
For More Information Click the Icons Below

Part Print

TORQUE & WIRE RANGES

ZMVV2.E61509

Canada 22.2 No.65

RoHS 10/10

More Info

Return to Top
Part No.

4 AWG 24 Circuit Neutral Ground Bar 4-14 AWG

Purchase

24S4-3

4 AWG Lug

Wire
Range
# of usable wires Length
+/-.02"
Width
Inch
Height
Inch
Number of Mounting Holes
1 to 9pcs
$37.71/ea
(or)
10pcs +
$28.03/ea
(or)

25 pcs
"full box"
$21.02/ea



14 - 4 AWG 24 2.87" 2.31" 1.63" 3

24S4-3 (24)  twenty four 4-14 wire holes lug for power distribution, power collection, structure grounding, floating ground or neutral bar applications.

Universal Bolting Feature

dimensions diagram

Dimensions

A: 1.75" (44.5mm)

B: 1.63" (41.4mm)

C: 2.87" (72.9mm)

L: 1.16" (29.5mm)

See Mechanical Drawing for detailed dimensions



UL LISTED power collection, power distrubution, ground and neutral bars.
Multi-wire hole, Lug Body Only (24) twenty four 4-14 wire holes lug for power distribution, power collection, structure grounding, floating ground or neutral bar applications. Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application UL486 ZMVV Listed, UL508A SA1.1 Listed category, and Canada Certified. (2) two mounting bolt holes with clearance for ¼” bolts and threaded for 5/16 UNC bolts. May be bus mounted, bare panel case, or bare chassis mounted or insulated using optional UL508A List SA1.1 category QEUY2 Recognized standoffs for power voltages up to 2000V and floating ground applications when used in accordance with UL508A and NEC code requirements. Copper and tin plated aluminum high strength alloy. Zinc plated steel slotted screws.



Screwdriver Bit Information



UL508A Information on Standoff Insulators



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S4-3 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the 24S4-3 Print



IEC grounding sybol



AWG 4, 24Ports:
Per Wire in Power Distribution or Collection Mode:

85 Amp 75C Cu wire
65 Amp 75C Al Wire

Compare to ILSCO:

NB-350-24         W/R16
NB-350-3              W/R16
NB-350-12             W/R16

24S4-3
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document

click for PDF document

Applications Installation Guide (PDF)


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

4 AWG 36 Circuit Neutral Ground Bar 4-14 AWG

Purchase
36S4-3 Wire
Range
# of usable wires Length
+/-.02"
Width
Inch
Height
Inch
Number of Mounting Holes

1 to 4 pcs $49.36 ea
or
5 pcs & up
$36.70 ea

25pcs
(or)

"full box"
$27.52ea

or
50pcs
$24.77ea

14 - 4 AWG 36 4.23" 2.31" 1.63" 4

36S4-3 (36)  thirty six 4-14 wire holes lug for power distribution, power collection, structure grounding, floating ground or neutral bar applications.

Universal Bolting Feature

dimensions diagram

Dimensions

A: 1.75" (44.5mm)

B: 1.63" (41.4mm)

C: 4.23" (107.4mm)

See Mechanical Drawing for detailed dimensions



UL LISTED power collection, power distrubution, ground and neutral bars.
Multi-wire hole LUG BODY ONLY (36) thirty six 4-14 wire holes lug for power distribution, power collection, structure grounding, floating ground or neutral bar applications. Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application UL486 ZMVV Listed, UL508A SA1.1 Listed category, and Canada Certified. (2) two mounting bolt holes with clearance for ¼” bolts and threaded for 5/16 UNC bolts, SOLD SEPERATLY. May be bus mounted, bare panel case, or bare chassis mounted or insulated using optional UL508A List SA1.1 category QEUY2 Recognized standoffs for power voltages up to 1500V and floating ground applications when used in accordance with UL508A and NEC code requirements. Copper and tin plated aluminum high strength alloy. Zinc plated steel slotted screws.



Screwdriver Bit Information



UL508A Information on Standoff Insulators



drill your own mounting holes

DIY Mounting Holes™: Cat. No. S4-3 Style No. ALL

Canada and UL permitted field modification by customer per the Drill your own™ Guide for Field Drilling Mounting Holes and the 36S4-3 Print



IEC grounding sybol



AWG 4, 36Ports:
Per Wire in Power Distribution or Collection Mode:

85 Amp 75C Cu wire
65 Amp 75C Al Wire

Compare to ILSCO:

NB-350-24         W/R16
NB-350-3              W/R16
NB-350-12             W/R16

36S4-3
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document

click for PDF document

Applications Installation Guide (PDF)


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

RoHS 10/10


Return to Top
Part No.

600 Volt Standoff Kit

Purchase

600v-KIT

To be ordered with the 36S4-3 or 24S4-3 power distribution kits. Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application


UL LISTED power collection, power distribution, ground and neutral bars.



Kit includes: (x1) 600 volt insulator (MPN AR5612-18A), (x1) 5/16-18 UNC x ¾ long Steel zinc plated RoHS hex washer head screw.

Two kits are required to complete the project kit.



UL508A Information on Standoff Insulators



Assembly of Stacked Connectors and Standoffs

1 to 44pcs
$7.65/ea
(or)
45pcs & up
$5.69/ea

(or)

50pcs
"full box"

$4.26/ea
(or)
100pcs
"2 full boxes" $4.84/ea

600v Insulator Kits for Power Distribution Lugs

dimensions diagram

Dimensions

A: 1.00" (25.4mm) Across Flats

A: 1.14" (29.0mm) Across Points

B: 1.00" (25.4mm)

See Mechanical Drawing for detailed dimensions (page 20).

600v-KIT
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document
click for PDF document

Applications Installation Guide (PDF)


Rated Torque Label

UL Logo

Panelboard and Switchboard Accessories - Component QEUY2.E799677

UL Logo

Plastics - Component QMFZ2.E336196


Return to Top
Part No.

2000 Volt Standoff Kit

Purchase
2000v-KIT

To be ordered with the 36S4-3 or 24S4-3 power distribution kits. Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application



UL LISTED power collection, power distrubution, ground and neutral bars.


Kit includes: (x1) 2000v insulator standoff, (x1) 5/16" Hex cap bolt & (x1) 5/16" washer.

Two kits are required to complete the project kit.



UL508A Information on Standoff Insulators



Assembly of Stacked Connectors and Standoffs

1 to 34 pcs $16.76
or
35 pcs & up
$12.46 ea

(or)
50 pcs
$9.34ea
or
100pcs
$8.41ea

2000v Insulator Kits for Power Distribution Lugs

dimensions diagram

Dimensions

A: 1.75" (44.5mm)

B: 1.75" (44.5mm)

See Mechanical Drawing for detailed dimensions (page 21).

2000v-KIT
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document
click for PDF document

Applications Installation Guide (PDF)


Rated Torque Label

UL Logo

Panelboard and Switchboard Accessories - Component R4175-A3 QEUY2.E84767


Return to Top
Part No.

350 kcmil Multi Wire Mechanical Lug 350 kcmil-6 AWG

Purchase
S350 Line Lug

"S350" 350 kcmil-6 AWG wire range, and FLEX, 262 kcmil – 4 AWG, wire class G-K including mm2 class 5, 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole of .343 inch dia. 5/16" bolt, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application, Canada Certified. IHI Connectors® brand.

UL & Canada Approved for    FLEX wire Class G-K sizes #262 kcmil-#4 AWG
Use of Ferrules (UL Listed) on wires 262 kcmil-4 AWG



Kit includes: (x1) 5/16-18" UNC x ¾ long Steel zinc plated RoHS hex washer head screw & (x1) 1-5/16" washer.

Bolt length is designed for mounting to the 24S4-3 or 36S4-3 multi-hole power distribution lugs.



UL508A Information on Standoff Insulators



Assembly of Stacked Connectors and Standoffs



IEC grounding sybol



UL LISTED power collection, power distribution, ground and neutral bars.

1 to 99 pcs
$6.25 ea
or
100 pcs & up
$4.65

(or)
150 pcs
$3.49 ea
or
300 pcs
"full boxes"
$3.14 ea

350 kcmil-6 AWG wire lug with hex cap screw and washer.

dimensions diagram

Dimensions

A: 2.00" (50.8mm)

B: 1.13" (28.6mm)

C: 1.00" (25.4mm)

See Mechanical Drawing for detailed dimensions

Per Wire in Power Distribution or Collection Mode:

310 Amp 75C Cu Wire
350 Amp 90C Cu Wire
250 Amp 75C Al Wire
280 Amp 90C Al Wire

S350 Line Lug
Click for full Product Profile
For More Information Click the Icons Below
click for PDF document

click for PDF document

Applications Installation Guide (PDF)


Rated Torque Label

UL Logo
CSA Logo
UL CSA Certificate Link

Return to Top
Back to Top UL & Canada AGENCY APPLICATION NOTES Open in PDF
- UL Recognized at 600v - acceptable for use through 2000v ("UR" mark) Class ZMVV2.E61509 and "Canada" Certified (Canada mark)
-Installation must be carried out only by qualified electricians in accordance with all applicable NEC & UL/Canada standards for the approved application.
Amp Rated at 85 Amps for Copper wire and 70 Amps for Aluminum wire
- Wire range, American Wire Gauge AWG 4-14 CU (copper wire), 4-12 Al (aluminum wire) Dual Rated, Solid & Stranded, rigid or semi rigid stranding.
- Tightening torques, 4-6 AWG = 45 lb-in, 8 AWG = 40 lb-in, 10-14 AWG = 35 lb-in
CONDITIONS OF ACCEPTABILITY:
- 1. The connector shall be prevented from turning by close fitting walls, or other turn preventive features such as two mounting holes.
- 2. Approved for 90 ° C Temperature Rating Wire, CU9AL UL486A-UL486B
- 3. Consideration should be given to the need for marking the end use equipment catalog numbers and wires ranges and other markings as determined by the end use equipment requirements.
- 4. The connectors employing the slotted head clamping screw and hexagonal clamping screw have ben tested using the torque values as specified in UL486A-UL486B First Edition, Table 21. The need for marking this assigned torque value for the connectors employing the slotted head screw and hexagonal head, on the end product shall be considered by the end product engineer.
- 5. The neutral bar shall not be mounted to a bus bar to act as a power distribution means to or from that bar.
- The neutral bar is designed to be used as a neutral bar for ground or power.
- The neutral bar is for use only in complete equipment where the suitability of the combination is determined & approved by UL
- The mounting screw is to be size #10-32 UNF. The proper use of washers to distribute screw clamping forces on the aluminum should be employed. Bellevilles and lock nuts should be considered in case of vibration.
- The screw will hold the smaller wires when the appropriate torque for the small wire is fully applied
-Dry locations only.

-----------CONSTRUCTION NOTES--------------
- The tolerance between mounting holes is +/-.015"
- The mounting hole is .201 +.006/-.003.
- The listed overall length of each bar is +/-.020
- Material is High Strength Tempered aluminum 6160 with conductivity approx. 43% IACS.
-Aluminum body is Tin Plated to resist oxidation and galvanic corrosion.
-Screws are Zinc Plated Steel with Trivalent (Cr+3) Chromate conversion top layer.



What is a Neutral Bar? Useful information about Neutral Bars in service panels.


Back to Top

Copyright © 2024 Advancement International Ltd, Aurora Ohio - All Rights Reserved
Advancement International Ltd is a registered company of Ohio, USA
IHI® is the Registered Trademark of International Hydraulics Inc.
LugsDirect.com is owned and operated by Advancement International Ltd.
DUNS # 148692197, REGISTERED WITH CCR, CAGE / NCAGE NUMBER 5A6R9,
A2 WOMAN OWNED SMALL BUSINESS, NAICS 423610, SIC 3643,
Made in the USA from domestic and imported parts. USMCA CERTIFICATES AVAILABLE
