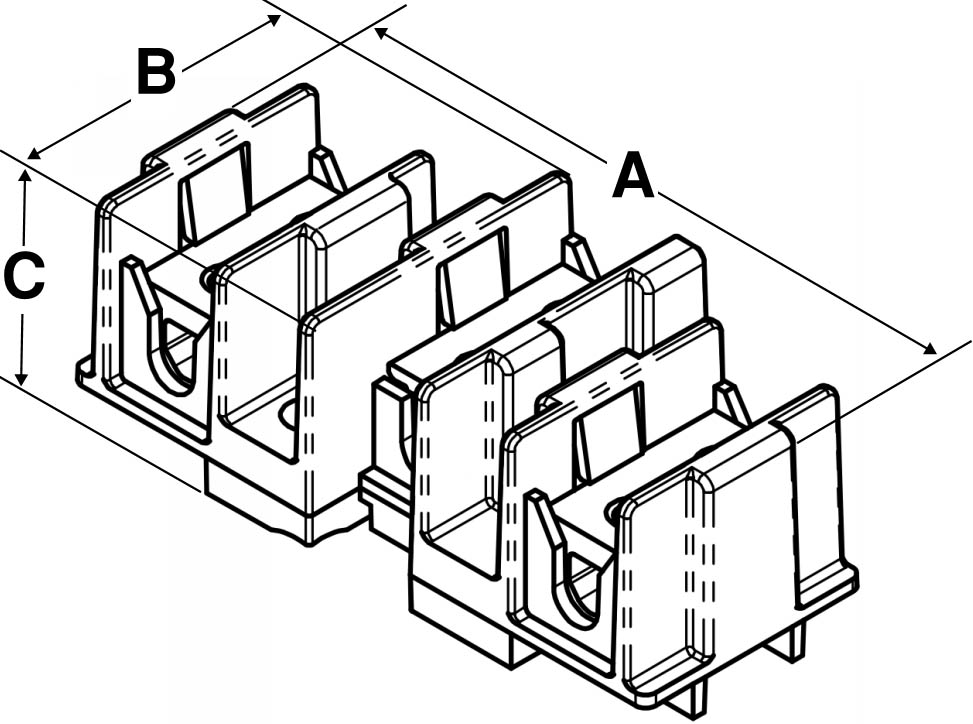

Dimensions

A: 3.38" (85.9mm)

B: 1.58" (40.1mm)

C: 1.14" (29.0mm)

See Mechanical Drawing for detailed dimensions

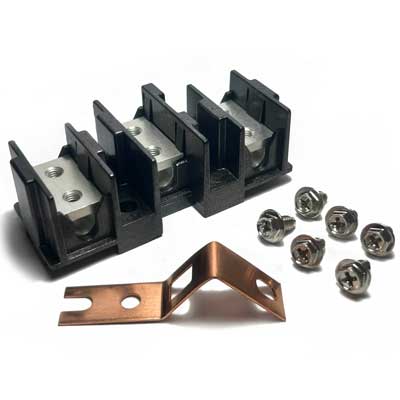

"8500018-BAG-G-KIT" 4 AWG, six wire 3-pole (or 2-pole and ground) terminal block, 4-10 AWG wire range, wire class B/C, aluminum or copper wire, CU7AL, 75C temperature rating, two #10 mounting bolt holes. Rating per pole: 600 V, 65A. 3 connectors mounted in black polycarbonate molding, kitted with (1) copper ground strap and (6) #10-32 Phillips screws with 1/4" external hex drive for ring lug mounting or screw wire compression termination. Aluminum connector side hole not intended for wire insertion when the same wire binding screw is used for a ring lug mount. Ring lugs not included. UL Recognized for Canada and the USA. Made in the USA from domestic and imported parts. Marathon Special Products brand.

Comparable to electric range oven terminal Block GE 205C2833G002, Samsung DG96-00173A, 3282643, DG65-00003A, AP5306090, PS4241550, 111751, WB17T10011, AP3736048, 1085735, PS953027.

Compatible with electric range/oven/stoves models: Samsung FCQ321HTUB, FCQ321HTUW, FCQ321HTUX, FE-N500WX, FE710DRS, FEN300WX, FER500WX, FTQ307NWG, FTQ352IWB, FTQ386LWU, FTQ387LWG, NE58F9710WS, NE594R0ABBB, NQ70M6650DG, NZ30K7880UG. GE JB400DP2BB

Dimensions

A: 3.38" (85.9mm)

B: 1.58" (40.1mm)

C: 1.14" (29.0mm)

See Mechanical Drawing for detailed dimensions

"8500018-BULK-G-KIT" 4 AWG, six wire 3-pole (or 2-pole and ground) terminal block, 4-10 AWG wire range, wire class B/C, aluminum or copper wire, CU7AL, 75C temperature rating, two #10 mounting bolt holes. Rating per pole: 600 V, 65A. 3 connectors mounted in black polycarbonate molding, kitted with copper ground strap and #10-32 Phillips screws with 1/4" external hex drive for ring lug mounting or screw wire compression termination. Aluminum connector side hole not intended for wire insertion when the same wire binding screw is used for a ring lug mount. Ring lugs not included. UL Recognized for Canada and the USA. Marathon Special Products brand. Made in the USA from domestic and imported parts.

Comparable to electric range oven terminal Block GE 205C2833G002, Samsung DG96-00173A, 3282643, DG65-00003A, AP5306090, PS4241550, 111751, WB17T10011, AP3736048, 1085735, PS953027.

Compatible with electric range/oven/stoves models: Samsung FCQ321HTUB, FCQ321HTUW, FCQ321HTUX, FE-N500WX, FE710DRS, FEN300WX, FER500WX, FTQ307NWG, FTQ352IWB, FTQ386LWU, FTQ387LWG, NE58F9710WS, NE594R0ABBB, NQ70M6650DG, NZ30K7880UG, GE JB400DP2BB

Only sold in full box. 1 Box contains 350 terminal blocks, 2100 screws, and 350 ground straps kitted, not assembled.

Dimensions

A: 3.38" (85.9mm)

B: 1.58" (40.1mm)

C: 1.14" (29.0mm)

See Mechanical Drawing for detailed dimensions

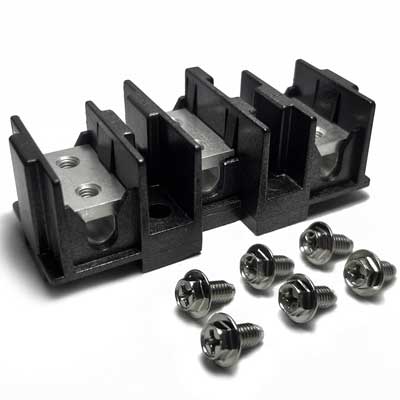

"8500018-BULK-KIT" 4 AWG, six wire 3-pole (or 2-pole and ground) terminal block, 4-10 AWG wire range, wire class B/C, aluminum or copper wire, CU7AL, 75C temperature rating, two #10 mounting bolt holes. Rating per pole: 600 V, 65A. 3 connectors mounted in black polycarbonate molding, kitted with #10-32 Phillips screws with 1/4" external hex drive for ring lug mounting or screw wire compression termination. Aluminum connector side hole not intended for wire insertion when the same wire binding screw is used for a ring lug mount. Ring lugs not included. Ground strap not included in this kit. UL Recognized for Canada and the USA. Marathon Special Products brand.

Comparable to electric range oven terminal Block GE 205C2833G002, Samsung DG96-00173A, 3282643, DG65-00003A, AP5306090, PS4241550, 111751, WB17T10011, AP3736048, 1085735, PS953027.

Compatible with electric range/oven/stoves models: Samsung FCQ321HTUB, FCQ321HTUW, FCQ321HTUX, FE-N500WX, FE710DRS, FEN300WX, FER500WX, FTQ307NWG, FTQ352IWB, FTQ386LWU, FTQ387LWG, NE58F9710WS, NE594R0ABBB, NQ70M6650DG, NZ30K7880UG, GE JB400DP2BB

Only sold in full box. 1 Box contains 350 terminal blocks and 2100 screws kitted, not assembled.
