2 AWG High AMP PCB Wire Lug 2-14 AWG

Part No.

Description & Information

Purchase Options

B2D-PCB-SMT-KIT

2 AWG Lug

Wire Range

Max. Current

Screw Type

Rating

Mounting Style

Part is available for custom orders.

Limited Stock.

MOQ applies when not in stock.

Contact sales@lugsdirect.com

or call 330-562-8983 for details.

2-14 AWG

AL 65A

CU 85A

.051 Slotted Screw

AL9CU

SMT Solderable Surface Mount

B2D-PCB-SMT, 2 AWG PCB LUG, 2AWG 14AWG

Part sold unassembled. Body and screw kitted.

dimensions diagram

Dimensions

A: 0.61" (15.5mm)

B: 0.45" (11.5mm)

C: 0.56" (14.3mm)

See Mechanical Drawing for detailed dimensions

Two Wires Per Barrel
Wire Size AWG (mm²)	- (10)	8 (8.37)	- (6)	10 (5.26)	- (4)	12 (3.31)	- (2.5)	14 (2.08)
Code Copper	-	-	-	Y	-	Y	-	Y
FLEX (class G-K)	Single Wires Only.
No mixing wire gauges.

"B2D-PCB-SMT-KIT" 2-14 AWG wire range, wire class B/C and FLEX, 4-12 AWG, 4-16 with ferrule**, wire class G-K including mm2 class 5, aluminum or copper wire, CU9AL, 90C temperature rating, side wire, and top screw entrance. Kitted with tin plated aluminum slotted set screw; B2D body and screw not assembled. Manufacturer recommends soldering the body to the board prior to installing the screw to prevent the screw tightening up during reflow. UL Recognized at 600v - appropriate for use through 2000v. International Hydraulics Inc® brand. Made in the USA from domestic and imported parts.

Screwdriver Bit Information

One piece SMT / SMD Solderable Body Types

Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. SMT / SMD (Surface Mount Technology, Surface Mount Device). View Soldering Temperature Profiles here. Copper wire, stranded and solid wire per UL486 wire code. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Meets IEC volt drop test standards.

Soldering Recommendations, Precautions when using SMT, and SMT FAQ

b2d-smt orientation

Figure 1: Most Sturdy: Vertical screw and horizontal wire
Figure 2: Less Sturdy: Horizontal screw and horizontal wire. Best for factory wiring only.
Figure 3: Least Sturdy: Horizontal screw and vertical wire. Best for factory wiring only.

**TORK KRIMP® Method for clamping wires using uncrimped ferrules is protected under Patent No. 10630005. Full instructions for self crimping ferrules here.

For More Information Click the Icons Below
		Rated Torque Label			c		RoHS 10/10

E129884 UL486A,B, ZMVV2, ZMVV8

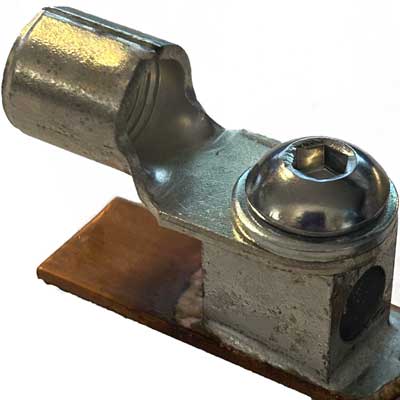

B2D-PCB-SMT: Ring Lug Mount (RLM) Applications

B2D-PCB-SMT with ring lug, 2 AWG PCB LUG, 2AWG 14AWG

Customer supplied ring lugs, bolt, and washer. .

dimensions diagram

Dimensions

A: 0.61" (15.5mm)

B: 0.45" (11.5mm)

C: 0.56" (14.3mm)

See Mechanical Drawing for detailed dimensions

B2D-PCB-SMT used as a ring lug mount (RLM) block, tin plated, solderable. Suggested ring lug wire sizes 2-14 AWG, up to 85 Amps.

Customer supplied ring lugs, bolt, and washer.

When using the B2D as a ring lug mount (RLM):
cURus does not apply when using the B2D as a ring lug mount. cURus rating applies only when using the B2D as a wire compression connector furnished with the slotted or hex set screw (10850 screw or the 13627 screw). Ring lug mounts are not covered under UL486A-B. Mounting secureness and final assembly current rating of ring lug mount is subject to further UL testing by customer.

Replacing hardware in any wire connector outside of the OEM (Original Equipment Manufacturer) factory environment which is field inspected by UL and CSA to assure compliance to the tested build procedures.

UL DOES NOT PERMIT ANY unauthorized field repair or modification to any connector bearing the UL logo (see UL White Book).

It is entirely the responsibility of the purchaser to obtain all of the approvals from the AHJ (Authority(ies) Having Jurisdiction) covering the application. Full details on the Technical Info & User Advisory.

When tightening bolt, two wrenches should be used to avoid damaging smt bond.

b2d-smt orientation

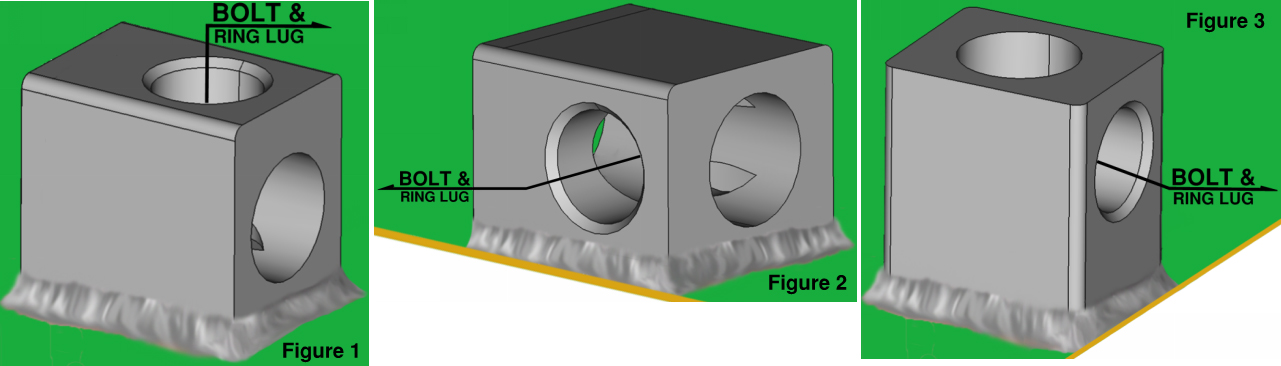

SMT Surface Mount Technology Options:

Figure 1: Most Sturdy: Vertical screw and ring lug mount.
Figure 2: Less Sturdy: Horizontal screw horizontal ring lug mount. Best for factory wiring only.
Figure 3: Least Sturdy: Horizontal screw horizontal ring lug mount. Best for factory wiring only.
Products that allow SMT orientations: B2D-PCB-SMT-RLM*

*In Figure 2 and 3 orientation, when using a headed screw or ring lug and bolt it's recommended that the head of the screw hangs off the edge of the board. Screws with little or no clearance between the head of the screw and the board can result in mechanical and electrical fouling. cURus rating only applies when using the furnished slotted or hex set screw.
